55KW 250 Liter Wet Horizontal Disk Type Sand Mill machine In Chemical Fiber Industry
55KW 250 Liter Wet Horizontal Disk Type Sand Mill Used In Chemical Fiber Industry
Disk type horizontal sand mill is widely used inchemical fiber industry, and we have great experiencen in these field.Wearable steel and stainless steel inner chamber material are the common configuration with dispersing system coated with PU, If you need high energy saving and high effeciency, we recommend silicon carbide inner chamber material bead mills.
The Technical Data ot nano pin type sand mill equipment
1. Motor power: 55KW, and the flamproof requirement can be none flameproof and flameproof.
2. Effective volume of chamber: 250L
3. Water pressure:0.3Mpa
4. Cooling water comsumption:2.5-3.0m3/h
5. Demension: 2500*1450*2400mm
The Configuration instructions
| No | Main parts | SP250 | Notes |
| 1 | Outter chamber | 304 stainless steel | |
| 2 | Inner chamber | Silicon Carbide Ceramics, wearable steel | |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |

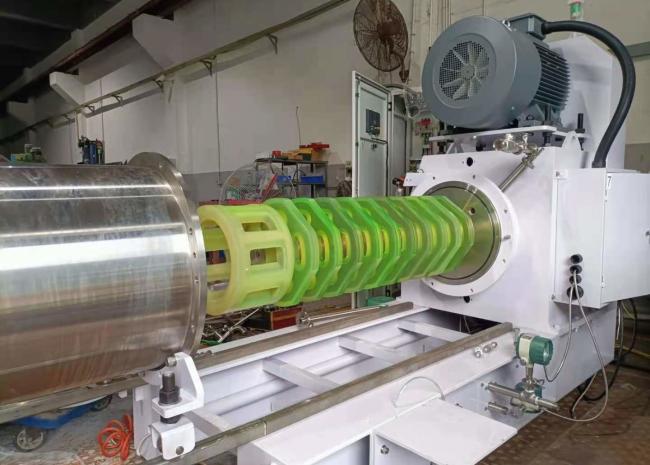

| 4 | Dispersing system | wear resistant steel, stainless steel coated with PU | |
| 5 | Feeding and discharging end covers on the cylinder | 304 stainless steel | |
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pges | |
| 7 | Static discharge screen ring | Screen ring with 304.Gaps: 0.5mm. | calculate according to your viscosity or grinding medium |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | 2” ARO diaphragm pump; | Ingersorand |
|
10 |
Appliance configuration | operation column/touching screen,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves. | |
| 11 | Fasteners and connecting parts |
Stainless steel clamp-type connecting parts |
Quick and convenient |
Spare parts details
Photoes of processing equipment and customer investingation
We are the manufacturer of sand bead mills, and many customers have come to investigate our plant, and know quality control, processing machining,and most of them highly recognized and praised us.
