PU Dispersing System With Silicon Chamber Horizontal Disk Sand / Bead Mill
PU Dispersing System With Silicon Chamber Horizontal Disk Sand / Bead Mill For Industrial Nylon Chemical Fiber
Nylon chemical fiber is widely used in many industries, and it's processing machines sand mills / bead mills are also the most key machines in manufacturing. In most condition, customers choose silicon carbide for inner chamber materials for better effeciency and longer work life, and choose stainless steel coated with PU for dispersing system , some others choose wearable steel for dispersing disks.
Allwin brand grinding mills are
1. easy to install, and operation is rather humanized considering the safety, working comfort level,etc.
2. tested before shipping, which makes sure of availability after mills reach to your side.
3. dispatched with attached installation and maintainence instructions.
Main instructions:
| No | Main parts | SP100 /SP250 | Notes |
| 1 | Outer cylinder | 304 stainless steel | |
| 2 | Internal cylinder | silicon carbide ceramics | other materials are optional |
| 3 | Dispersing shaft | 40Cr with hard chromium plating | Brand: NSK |
| 4 | Dispersing disk | 304 Stainless steel or steel coated with pu | |
| 5 | Mechanical seal | Double end Mechanical seal with Pressure of 0.45 Mpa | |
| 5 | Feeding and discharging end covers on the cylinder |
304 stainless steel / steel coated with pu |
|
| 6 | Turbine centrifugal separator and pegs | 304 stainless steel and YG6 pges | |
| 7 | Static discharge screen ring | 304 stainless steel screen ring with 304.Gaps: 0.5mm. | |
| 8 | Bearing |
NSK |
|
| 9 | Feeding pump | 1.5"/2" aro diaphram pump | Brand: Ingersoll Rand |

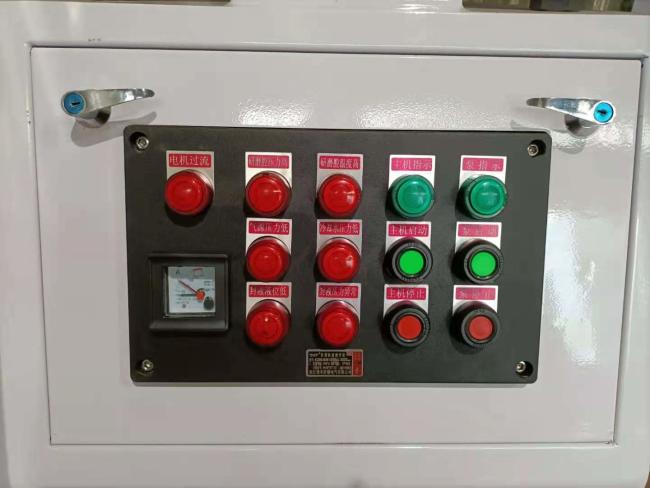

| 10 | Operating control | button type |
Related products:
Allwin also offer related grinding mediums and dispersing machines for grinding and dispersing processing.More informations can contact our sales manager.
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
If need more detailed information and price ,please contact us soon and warmly welcome to visit us!
