100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry
100/250 Liter Large Flow Wet Grinding Mill For High Viscosity And Thixotropic Slurry
100/250 Liter large flow bead mills are usually used in special coating with high viscosity or thixotropic slurrys , meanwhile , the finished size of slurry after grinding is upper 20um.
1. Technical data of large flow horizontal bead mill
| No | Main Parameters | HZ100/HZ250 bead mill | Notes |
| 1 | Motor power (kW) |
55KW / 75 KW | Ex-proof/non ex-proof available |
| 2 |
Effective volume of grinding chamber (L) |
100/250L | volume can be suggested according to different grinding materials and usages |
| 3 | Water pressure (MPa) |
0.3 | |
| 4 | Cooling water consumption (L/min) | 2.0 -2.5/2.5-3.0 m3/h | Advision: Users offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) |
--- | |
| 6 | Weight (kg) |
About 2300/3200 | Different as for different chamber volume |
| No |
Main parts
|
HZ100/HZ250 | Notes |
| 1 | Material of External vessel | SUS 304 stainless steel | |
| 2 | Material of Inner grinding vessel | 9Cr18Mo alloy steel, SUS 304 stainless steel | different mateials for choice |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 |
Material of dispersing system |
304 stainless steel,9Cr18Mo wearable steel | Choose what you need |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.5 / 0.3mm. | dynamic scraper: alloy steel |
| 7 | Mechanical seal | Double end mechanical seal | |
| 8 | Feeding pump | 1.5"/2" ARO diaphragm pump | IngersoII Rand |

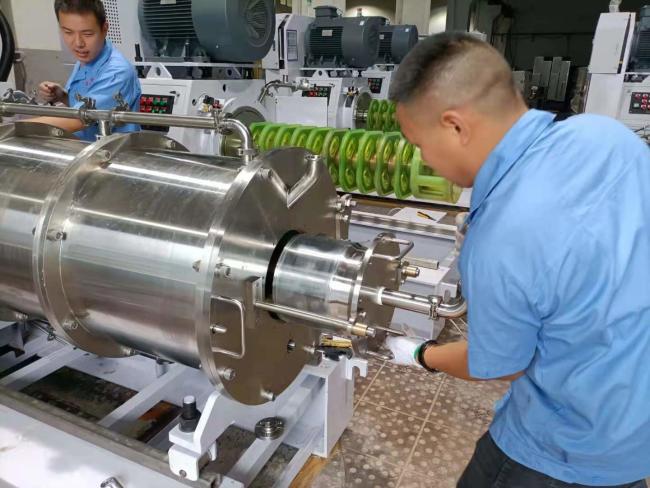

3.Display of details and inner structure
Feeding slurry is in left side, and wet slurry go through the disks and then reach to centrifugal seperator, with high speed rotating , some finished qualified particles to discharging side,As its high viscosity and thixotropy, we designed width dynamic scraper to help smoothly seperate from the end cap,
6. The package and shipping:
Packing Details : The machine will be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
7.The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24 hours feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.
