HZPLUS 100 Horizontal Sand Mill Nano Materials Lithium Iron Phosphate
HZPLUS 100 Horizontal Sand Mill Nano Materials Lithium iron phosphate
Grinding LFP and and Aluminia or namo materials needs many key and qualified machines to finish with iron separator, as its special requirement, the inner chamber and dispersing system need to ensuring the related materials not containing Fe or other metallic elements.
According to our owned and counterparts' statics, our bead mills can help customer save more electricity fees.
The Configuration instructions
| No | Main parts | HZPLUS 100 | Notes |
| 1 | Outter chamber | 304 stainless steel | |
| 2 | Inner chamber |
Silicon Carbide CeramicS, |
|
| 3 | Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Dispersing system | zirconia ceramics,stainless steel coated with PU | |
| 5 | Feeding and discharging end covers on the cylinder | stainless steel coated with PU/ Zirconia | |
| 6 | Turbine centrifugal separator | zirconia ceramics,stainless steel coated with PU | |
| 7 | Static discharge screen ring | Screen ring with 304.Gaps: 0.3/0.5mm. | calculate according to your viscosity or grinding medium |
| 8 | Mechanical seal |
Intelligent double mechanical seal with mandatory lubricating-cooling system |
|
| 9 | Feeding pump | 1"/1.5” ARO diaphragm pump; | Ingersorand |
|
10 |
Appliance configuration | operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves. Ex-proof/ non ex-proof is optional. | |
| 11 | Maintainance rails |
1 set for free |

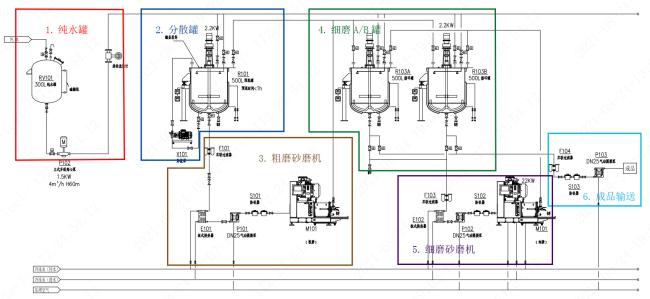

Main processing equipment:
The Advantages of HZPLUS Series:
L Great flow rate and super fine discharging
High production capacity and high efficiency,Saving enegy 10-30%, higher2 times production capacity.
SIC silicon carbide ceramic inner chamber.
Double mechanical sealing with research and development indepent technology
High cooling efficiency with multiple cooling
Long time life and low maintenance.
With ISO9001 certification and more than 11 patents of sand mill
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need, arrange maintenance engineer for you.
The package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
other related products

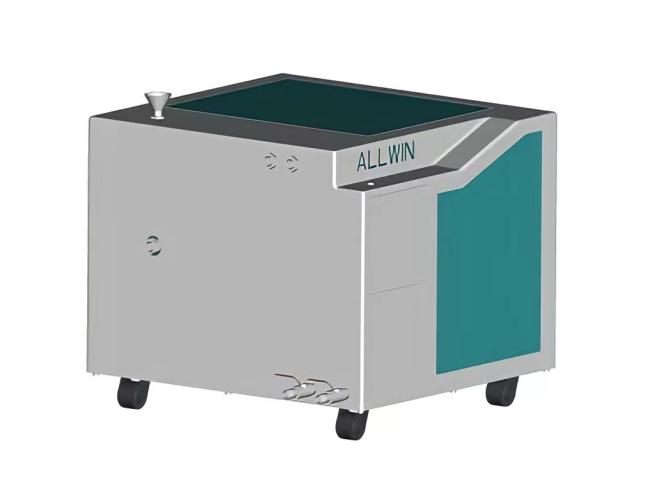

We can also offer other related products in production lines, like disperser, moving tank, zirconia bead, grinding medium charging&discharging machines, etc. there are some pictures for your referrence.
We warmly welcome all potential customers to visit our factory, also welcome to send materials for testment.
If need more detailed information and Price, please don't hesitate contact me, Also Warmly welcome to visit us.
