SIC Ceramic 4kW 1L/2L Horizontal Bead Mill Machine In Labortatory Testment
SIC Ceramic 4kW 1L/2L Horizontal Bead Mill Machine Used In Labortatory Testment
Labortatory bead mill machines are normally used for experiement and verification,important to verify fomulation, checking if the slurry can reach the required fineness.
Application: paint, pesticide preparation,inks, ceramic powder, LFP, food, cosmetics,medicine,etc.
1. Technical data of labortatory bead mill
| No | Main Parameters | Mini 1.0/2.0 | Notes |
| 1 | Motor power (kW) |
4/5.5KW | Ex-proof/non ex-proof available |
| 2 |
Effective volume of grinding chamber (L) |
1L/2L | volume can be suggested according to different grinding materials and usages |
| 3 | Water pressure (MPa) |
0.3 | |
| 4 | Cooling water consumption (L/min) | 1.5-2.0 | Advision: Users offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) |
850*650*1200 | |
| 6 | Weight (kg) |
About 800 |
| No |
Main parts
|
Mini 1.0 /2.0 | Notes |
| 1 | Material of outter chamber | SUS 304 stainless steel | |
| Material of inner chamber | SIC Ceramic / stainless steel/resistant steel | different mateials for choice | |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 |
Material of dispersing system |
304 stainless steel, steel coated with PU,resistant steel | Choose what you need |
| 5 | Feeding and discharging end covers on the cylinder | SUS 304 stainless steel | |
| 6 | Static discharge screen ring | Wire Wound screen ring with 304.Gaps: 0.3-0.5mm. | dynamic scraper: alloy steel |
| 7 | Mechanical seal | singal end mechanical seal | |
| 8 | Feeding pump | 1/2" ARO diaphragm pump | IngersoII Rand |
3.The main processing equipment:
The United States imported four axis Haas machining center

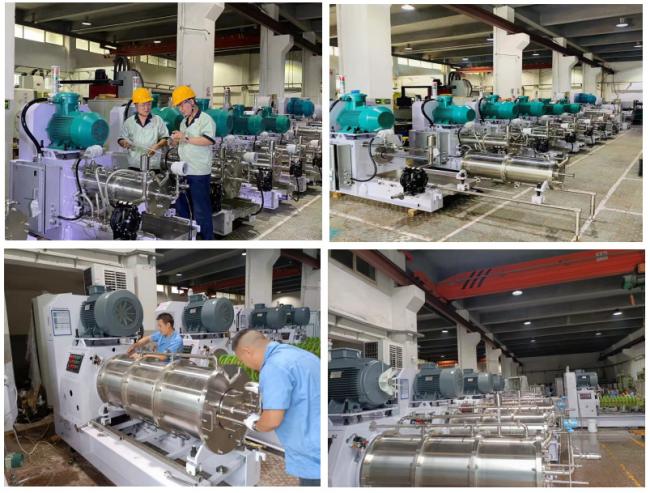

Production processing
Assembly line
Package and shipping: Be covered with anti-abrasion film and then packed in wooden boxes, then seashipping by FCLor LCL.
If any detailed information and price ,pls contact me, also warmly welcom to visit us.
