UT-King Fiber Optical Equipment 16 32 48 Cores Ftth Fiber Optic Distribution Box

Description

UT-King’s fiber distribution box (FDB) is normally located at the user access point to connect distribution cables and drop cables. In FTTx network, It works with the optical splitter to split optical fibers. to protect optical fiber splicing points, distribute and schedule optical fiber routings. FDB are often outdoor type.

Application

• Optical LAN & WAN & CATV

• FTTH project & FTTX Deployments

• Broadband High-bit rate data transmission

• Active device terminations

• esting instruments

• Optical fiber communication networks

• PON Networks

• Optical Signal

• Distribution

• Indoor or outdoor is available

Features

• Total enclosed structure.
• Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
• Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Specification

Installation:

Fig.1: Box Size Fig.2: Installation Size

Wall-mounted installation

• Drill 4 holes over the wall based on the size in Fig.2,place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten. (Fig.4)

6.2 Pole-mounted installation

• Fix 1 set of the easy pole ring to the telecom pole. (Fig.5)

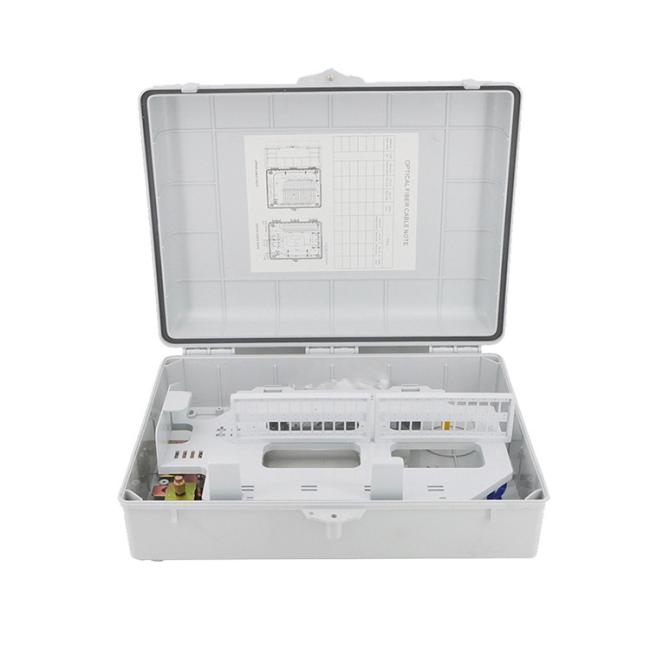

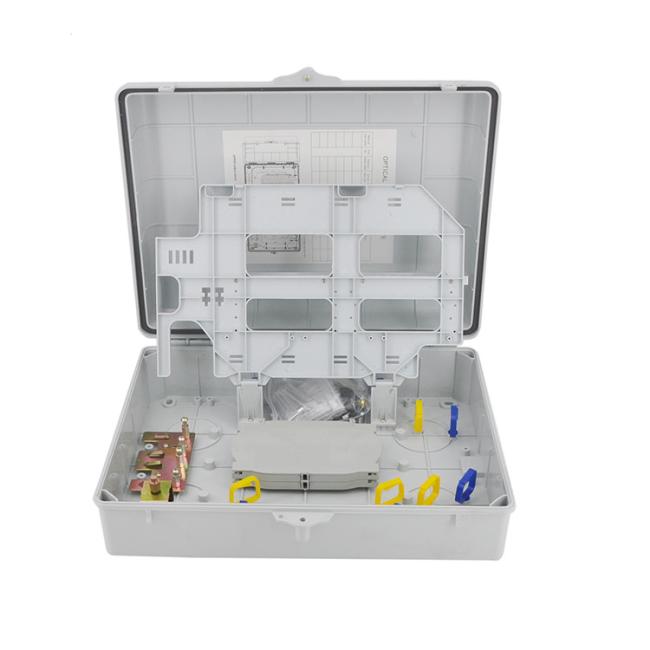

Detail Images
