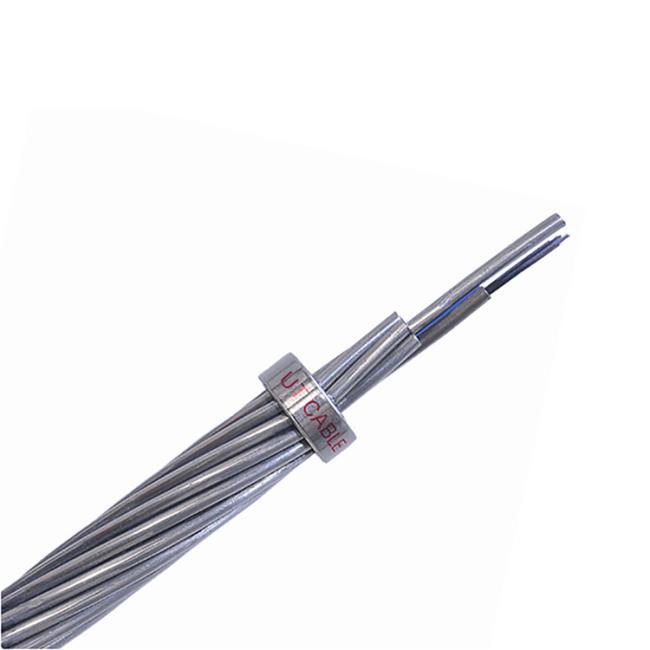

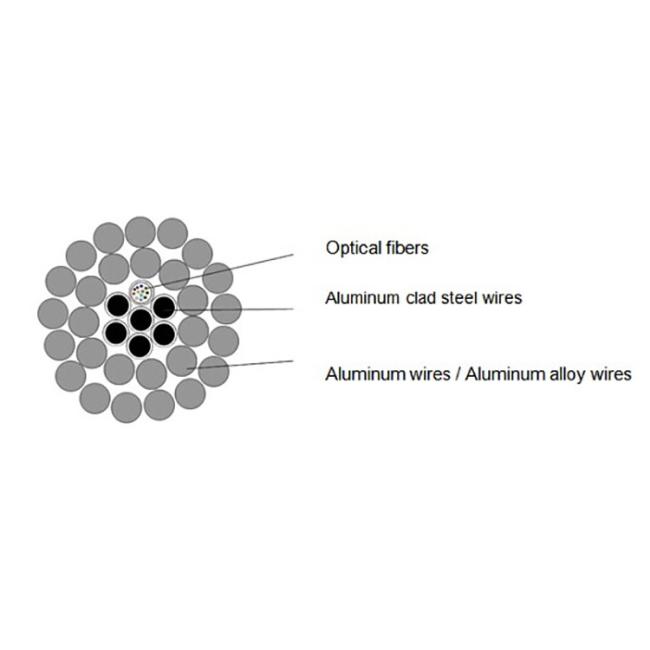

AL Covered Stainless Steel Tube Fiber Optic Cable Power Single Mode GJPFJV
AL-Covered Stainless Steel Tube Optical Power Cable OPGW Aeirlal Wire Fiber Optic Cable Single Mode
Description
UT-King’s OPGW is overhead ground cable with built-in fibers, owing mutual functions of overhead ground cable and optical communication. It’s mainly applied to communication lines which cross 110kV, 22kV, 500kV, 750kV and new built aerial high voltage power transmission system. It also can be used to replace existed ground cable in old aerial high voltage power transmission system, and increasing new optical communication lines, transporting short circuit electricity and protecting it from thunder.
Features
- Relatively large cable diameter, can design large fiber counts
- Stable construct, high reliability Optical fibers are protected by stainless steel tubes.
- Good tensile and large short circuit electricity capacity, can reach a best balance between mechanical and electrical
- performance
- can match with normal ground wire
Specification
| Cable Diameter | 15.50 mm |
| Cable Weight | 475 kg/km |
| Supporting Cross Section | 135.9 mm2 |
| Section of AS Wire | 22.64 mm2 |
| Section of AA Wire | 113.22 mm 2 |
| Rate Tensile Strength (RTS) | 60.7kN |
| Modulus of Elasticity (E-Modulus) | 81.2kN/mm2 |
| Thermal Elongation Coefficient | 19.7x215;10-6 /℃ |
| Permissible Maximum Working Stress (40% RTS) | 178.7 N/m m2 |
| Everyday Stress(EDS) (18%~25% RTS) | 80.4 ~111.7 N/mm 2 |
| Ultimate Exceptional Stress (70% RTS) | 312.8 N/mm 2 |
| DC Resistance | 0.272 /km |
| Short Time Current (0.25s,40℃~200℃) | 25.1 kA |
| Short Time Current Capacity I2t | 158.1 kA2S |
| Ratio between Pull and Weight | 13.0 km |
| Installation Temperature | -10 ℃~ +50 ℃ |
| Transportation Operation Temperature | -40 ℃ ~ +80 ℃ |
