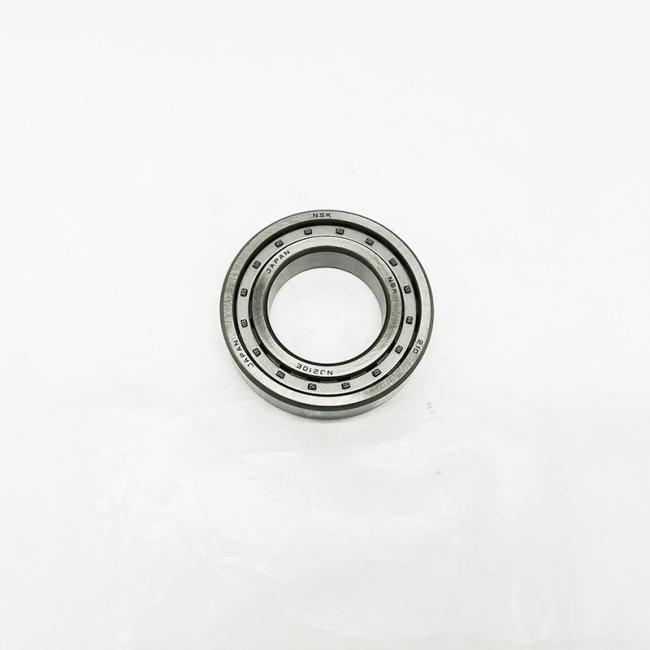

Machinery Spre Part Cylindrical Roller Bearing NJ210E 50x90x20 mm
Machinery Spre Part Cylindrical Roller Bearing NJ210E 50x90x20 mm
Cylindrical Roller Bearing, in which either the inner or outer rings has two ribs and the other ring has one, are capable of taking some axial load in one direction Double-row cylindrical roller bearing have high radial rigidity and are used primarily for precision machine tools.
| Part Name: | Cylindrical Roller Bearing |
| Part Number | NJ210E |
| Size | 50x90x20 mm |
| HS Code | 8482101000 |
| Structure | Cylindrical |
| Type | Roller |
| Shipping | Air,Sea or Express |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
About Cylindrical Roller Bearing:
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
There are different types designated NU, NJ, NUP, N, NF for single-row bearings,and NNU, NN for double-row bearings depending on the design or absence of side ribs.
| NJ series | ||||
| Model | d mm | D mm | H mm | W kg |
| NJ 222 EM | 110 | 220 | 38 | 5.11 |
| NJ 224 EM | 120 | 215 | 40 | 6.48 |
| NJ 226 EM | 130 | 230 | 40 | 7.46 |
| NJ 228 EM | 140 | 250 | 42 | 9.62 |
| NJ 230 EM | 150 | 270 | 45 | 12.1 |
| NJ 232 EM | 160 | 290 | 48 | 14.5 |
| NJ 234 EM | 170 | 310 | 52 | 19.3 |
| NJ 236 EM | 180 | 320 | 52 | 19.8 |
| NJ 238 EM | 190 | 340 | 55 | 22.9 |
| NJ 240 EM | 200 | 360 | 58 | 27.7 |
| NJ 244 EM | 220 | 400 | 65 | 38.9 |
| NJ 248 EM | 240 | 440 | 72 | 53 |
| NJ 252 EM | 260 | 480 | 80 | 68.2 |
| NJ 256 EM | 280 | 500 | 80 | 70.3 |
| NJ 260 EM | 300 | 540 | 85 | 91 |
| NJ 2216 EM | 80 | 140 | 33 | 2.36 |
| NJ 2218 EM | 90 | 160 | 40 | 3.73 |
| NJ 2219 EM | 95 | 170 | 43 | 5 |
| NJ 2220 EM | 100 | 180 | 46 | 5.99 |
| NJ 2222 EM | 110 | 200 | 53 | 7.8 |
| NJ 2224 EM | 120 | 215 | 58 | 9.55 |
| NJ 2226 EM | 130 | 230 | 64 | 11.9 |
| NJ 2228 EM | 140 | 250 | 68 | 15 |
| NJ 2230 EM | 150 | 270 | 73 | 18.1 |
| NJ 2232 EM | 160 | 290 | 80 | 24.7 |
| NJ 2234 EM | 170 | 310 | 86 | 31 |
| NJ 2236 EM | 180 | 320 | 86 | 31 |
| NJ 2238 EM | 190 | 340 | 92 | 40 |
| NJ 2240 EM | 200 | 360 | 98 | 44 |
| NJ 2244 EM | 220 | 400 | 108 | 65 |
| NJ 2312 EM | 60 | 130 | 6 | 3.38 |
| NJ 2313 EM | 65140 | 48 | 3.71 | |
Our Factory
Our Service
1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands.
7.Require little maintenance
8. OEM is supported .
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.
