P5 GCR15 NJ318E Cylindrical Roller Bearing 90x190x43mm
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
CYNOK
Product Description
NJ318E Single Row Cylindrical Roller Bearing 90x190x43mm
1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.
| Part Name | Cylindrical Roller Bearing |
| Part Number | NJ318E |
| HS Code | 8482101000 |
| Place of Origin | China (Mainland). |
| Features | (1) high precision; |
| (2) high speed; | |
| (3) high load carrying capacity; | |
| (4) low noise; | |
| (5) long life span. | |
| Application | electric motor, vehicle,machine tool spindle, combustion motor, gas turbine, gearbox, rolling machine, |
| oscillating screen, crane etc. | |
| Payment Term | TT or L/C or Western Union or Bank transfer |
| Shipping Port | Guangzhou,Shenzhen |
| Samples | samples are available. |

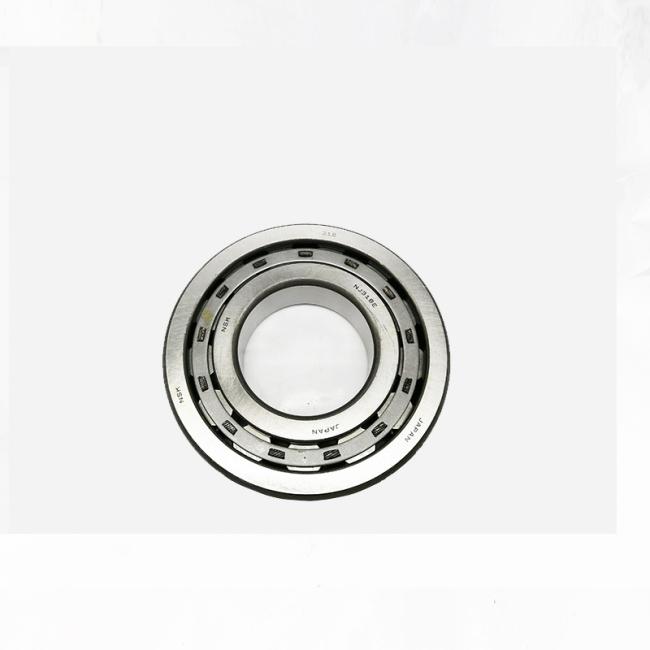

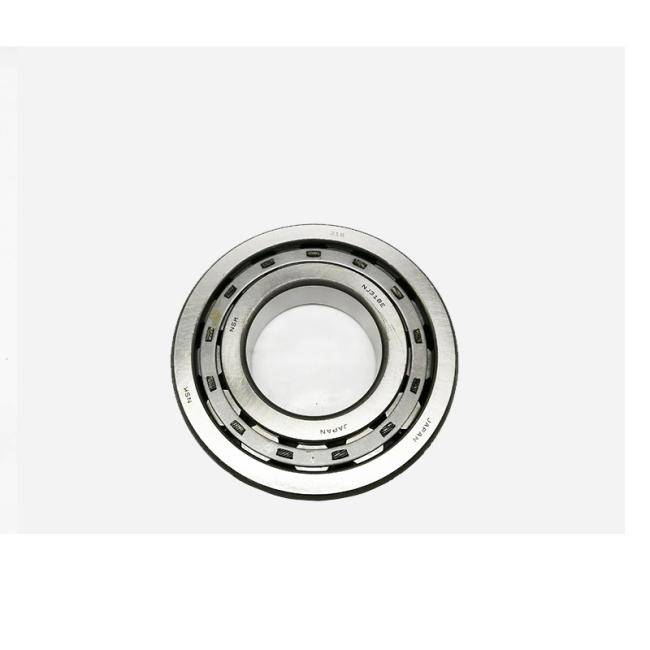

(The pictures may not represent the actual product,please contact us to send the correct real picture...)
Our Factory
| Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speeds | Mass | ||||||
| mm | Dynamic | Static | rpm | Kg | ||||||
| d | D | B | rs min | rs1 min | Cr | Cor | Grease | Oil | ||
| NJ304E | 20 | 52 | 15 | 1.1 | 0.6 | 31.5 | 26.9 | 13,000 | 15,000 | 0.176 |
| NJ305E | 25 | 62 | 17 | 1.1 | 1.1 | 41.5 | 37.5 | 11,000 | 13,000 | 0.275 |
| NJ306E | 30 | 72 | 19 | 1.1 | 1.1 | 53 | 50 | 9,300 | 11,000 | 0.398 |
| NJ307E | 35 | 80 | 21 | 1.5 | 1.1 | 71 | 71 | 8,100 | 9,600 | 0.545 |
| NJ308 | 40 | 90 | 23 | 1.5 | 1.5 | 58.5 | 57 | 8,000 | 9,400 | 0.658 |
| NJ308E | 40 | 90 | 23 | 1.5 | 1.5 | 83 | 81.5 | 7,200 | 8,500 | 0.754 |
| NJ309 | 45 | 100 | 25 | 1.5 | 1.5 | 74 | 71 | 7,200 | 8,400 | 0.877 |
| NJ309E | 45 | 100 | 25 | 1.5 | 1.5 | 97.5 | 98.5 | 6,500 | 7,600 | 0.996 |
| NJ310 | 50 | 110 | 27 | 2 | 2 | 87 | 86 | 6,500 | 7,700 | 1.14 |
| NJ310E | 50 | 110 | 27 | 2 | 2 | 110 | 113 | 5,900 | 6,900 | 1.3 |
| NJ311 | 55 | 120 | 29 | 2 | 2 | 111 | 111 | 5,900 | 7,000 | 1.45 |
| NJ311E | 55 | 120 | 29 | 2 | 2 | 137 | 143 | 5,300 | 6,300 | 1.65 |
| NJ312 | 60 | 130 | 31 | 2.1 | 2.1 | 124 | 126 | 5,500 | 6,500 | 1.8 |
| NJ312E | 60 | 130 | 31 | 2.1 | 2.1 | 150 | 157 | 4,900 | 5,800 | 2.05 |
| NJ313 | 65 | 140 | 33 | 2.1 | 2.1 | 135 | 139 | 5,100 | 6,000 | 2.23 |
| NJ313E | 65 | 140 | 33 | 2.1 | 2.1 | 181 | 191 | 4,600 | 5,400 | 2.54 |
| NJ314 | 70 | 150 | 35 | 2.1 | 2.1 | 158 | 168 | 4,700 | 5,500 | 2.71 |
| NJ314E | 70 | 150 | 35 | 2.1 | 2.1 | 205 | 222 | 4,200 | 5,000 | 3.1 |
| NJ315 | 75 | 160 | 37 | 2.1 | 2.1 | 190 | 205 | 4,400 | 5,200 | 3.28 |
| NJ315E | 75 | 160 | 37 | 2.1 | 2.1 | 240 | 263 | 4,000 | 4,700 | 3.74 |
| NJ316 | 80 | 170 | 39 | 2.1 | 2.1 | 190 | 207 | 4,100 | 4,800 | 3.86 |
| NJ316E | 80 | 170 | 39 | 2.1 | 2.1 | 256 | 282 | 3,700 | 4,400 | 4.22 |
| NJ317 | 85 | 180 | 41 | 3 | 3 | 212 | 228 | 3,900 | 4,600 | 4.54 |
| NJ317E | 85 | 180 | 41 | 3 | 3 | 291 | 330 | 3,500 | 4,100 | 4.81 |
| NJ318 | 90 | 190 | 43 | 3 | 3 | 240 | 265 | 3,700 | 4,300 | 5.3 |
| NJ318E | 90 | 190 | 43 | 3 | 3 | 315 | 355 | 3,300 | 3,900 | 5.72 |
| NJ319 | 95 | 200 | 45 | 3 | 3 | 259 | 285 | 3,400 | 4,000 | 6.13 |
| NJ319E | 95 | 200 | 45 | 3 | 3 | 335 | 385 | 3,100 | 3,600 | 6.62 |
| NJ320 | 100 | 215 | 47 | 3 | 3 | 299 | 335 | 3,300 | 3,800 | 7.49 |
| NJ320E | 100 | 215 | 47 | 3 | 3 | 380 | 425 | 2,900 | 3,500 | 8.57 |
| NJ321 | 105 | 225 | 49 | 3 | 3 | 320 | 360 | 3,100 | 3,700 | 8.53 |
| NJ322 | 110 | 240 | 50 | 3 | 3 | 360 | 400 | 3,000 | 3,500 | 10 |
| NJ322E | 110 | 240 | 50 | 3 | 3 | 450 | 525 | 2,700 | 3,100 | 11.1 |
| NJ324 | 120 | 260 | 55 | 3 | 3 | 450 | 510 | 2,700 | 3,200 | 12.8 |
| NJ324E | 120 | 260 | 55 | 3 | 3 | 530 | 610 | 2,400 | 2,800 | 13.9 |
| NJ326 | 130 | 280 | 58 | 4 | 4 | 560 | 665 | 2,500 | 2,900 | 17.4 |
| NJ326E | 130 | 280 | 58 | 4 | 4 | 615 | 735 | 2,200 | 2,600 | 19.4 |
| NJ328 | 140 | 300 | 62 | 4 | 4 | 615 | 745 | 2,300 | 2,700 | 21.2 |
| NJ328E | 140 | 300 | 62 | 4 | 4 | 665 | 795 | 2,100 | 2,400 | 23.2 |
| NJ330 | 150 | 320 | 65 | 4 | 4 | 665 | 805 | 2,100 | 2,500 | 25.3 |
| NJ330E | 150 | 320 | 65 | 4 | 4 | 760 | 920 | 1,900 | 2,300 | 28.4 |
