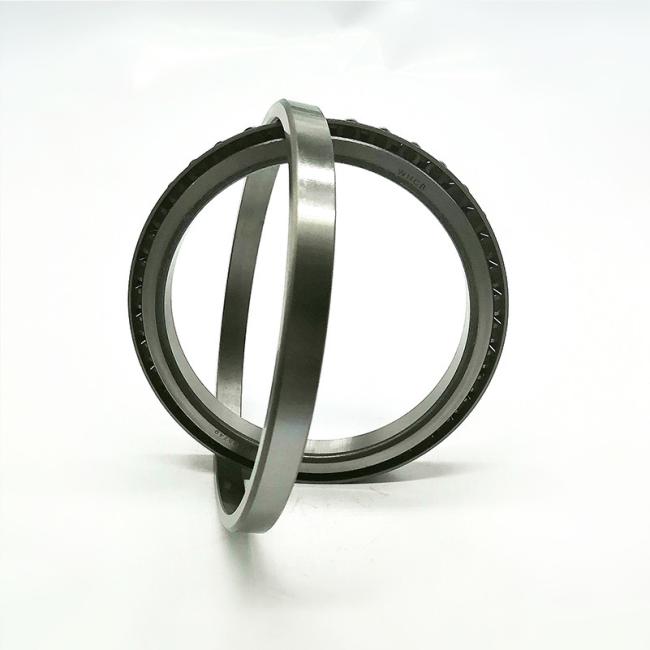

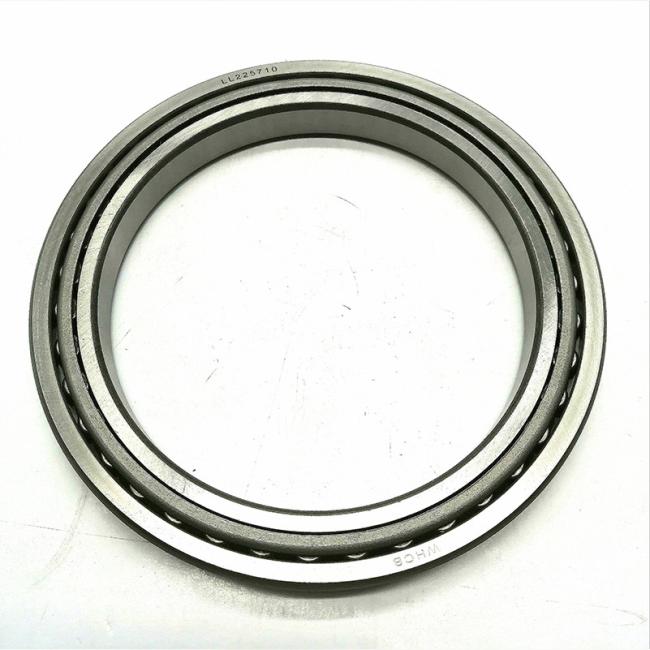

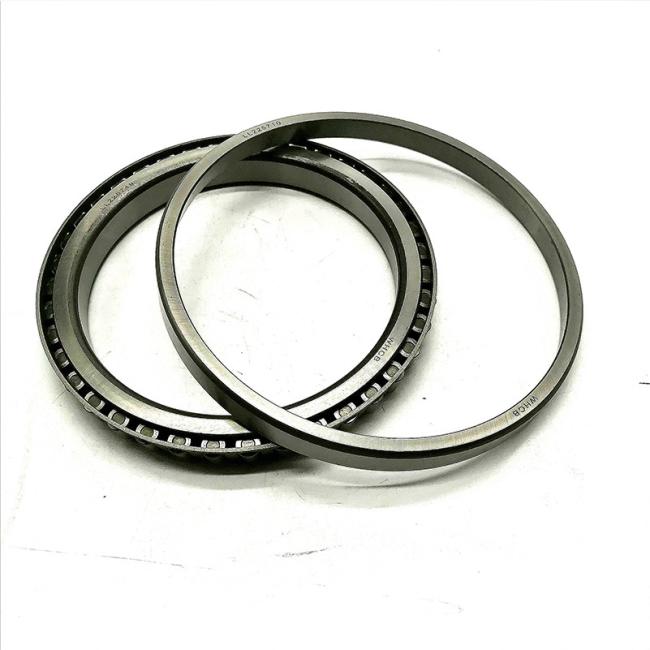

LL225710 Hydraulic Excavator Taper Roller Bearing 127*165.9*18.26mm
LL225710 Hydraulic Excavator Taper Roller Bearing 127*165.9*18.26mm
Taper roller bearing mainly carry radial, axial combined load with radial load in the main. The capacity of axial load carrying depends on the contact angle of outer ring’s raceway. The bigger the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix and line, the bearing can bearing heavy load and other Tappered Roller Bearings, it mainly bears joint load based on one way axial load,but not only radial load.
| Part Name | Tapered Roller Bearings |
| Part Number | LL225710 |
| Size | 127*165.9*18.26mm |
| Material | Steel |
| Delivery | 2-7 Work Days |
| Specifications | Standard |
| Cage | Steel Cage |
(The pictures may not represent the actual product,please contact us to send the correct real picture...)
| d | D | Boundary Dimensions (mm) T B C |
Bearing Numbers | d | D | Boundary Dimensions (mm) T B C |
Bearing Numbers | ||||||
| 55 | 80 | 17 | 17 | 14 | HR 32911 J | 70 | 100 | 20 | 20 | 16 | HR 32914 J | ||
| 90 | 23 | 23 | 17.5 | HR 32011 XJ | 110 | 25 | 25 | 19 | HR 32014 XJ | ||||
| 90 | 27 | 27 | 21 | HR 33011 J | 110 | 31 | 31 | 25.5 | HR 33014 J | ||||
| 95 | 30 | 30 | 23 | HR 33111 J | 120 | 37 | 37 | 29 | HR 33114 J | ||||
| 100 | 22.75 | 21 | 18 | HR 30211 J | 125 | 26.25 | 24 | 21 | HR 30214 J | ||||
| 100 | 26.75 | 25 | 21 | HR 32211 J | 125 | 33.25 | 31 | 27 | HR 32214 J | ||||
| 100 | 35 | 35 | 27 | HR 33211 J | 125 | 41 | 41 | 32 | HR 33214 J | ||||
| 115 | 34 | 31 | 23.5 | T 7 FC055 | 140 | 39 | 35.5 | 27 | T 7 FC070 | ||||
| 120 | 31.5 | 29 | 25 | HR 30311 J | 150 | 38 | 35 | 30 | HR 30314 J | ||||
| 120 | 31.5 | 29 | 21 | HR 30311 DJ | 150 | 38 | 35 | 25 | HR 30314 DJ | ||||
| 120 | 31.5 | 29 | 21 | HR 31311 J | 150 | 38 | 35 | 25 | HR 31314 J | ||||
| 120 | 45.5 | 43 | 35 | HR 32311 J | 150 | 54 | 51 | 42 | HR 32314 J | ||||
| 120 | 45.5 | 43 | 35 | HR 32311 CJ | 150 | 54 | 51 | 42 | HR 32314 CJ | ||||
| 60 | 85 | 17 | 17 | 14 | HR 32912 J | 75 | 105 | 20 | 20 | 16 | HR 32915 J | ||
| 95 | 23 | 23 | 17.5 | HR 32012 XJ | 115 | 25 | 25 | 19 | HR 32015 XJ | ||||
| 95 | 27 | 27 | 21 | HR 33012 J | 115 | 31 | 31 | 25.5 | HR 33015 J | ||||
| 100 | 30 | 30 | 23 | HR 33112 J | 125 | 37 | 37 | 29 | HR 33115 J | ||||
| 110 | 23.75 | 22 | 19 | HR 30212 J | 130 | 27.25 | 25 | 22 | HR 30215 J | ||||
| 110 | 29.75 | 28 | 24 | HR 32212 J | 130 | 33.25 | 31 | 27 | HR 32215 J | ||||
| 110 | 38 | 38 | 29 | HR 33212 J | 130 | 41 | 41 | 31 | HR 33215 J | ||||
| 125 | 37 | 33.5 | 26 | T 7 FC060 | 160 | 40 | 37 | 31 | HR 30315 J | ||||
| 130 | 33.5 | 31 | 26 | HR 30312 J | 160 | 40 | 37 | 26 | HR 30315 DJ | ||||
| 130 | 33.5 | 31 | 22 | HR 30312 DJ | 160 | 40 | 37 | 26 | HR 31315 J | ||||
| 130 | 33.5 | 31 | 22 | HR 31312 J | 160 | 58 | 55 | 45 | HR 32315 J | ||||
| 130 | 48.5 | 46 | 37 | HR 32312 J | 160 | 58 | 55 | 43 | 32315 CA | ||||
| 130 | 48.5 | 46 | 35 | 32312 C | 80 | 110 | 20 | 20 | 16 | HR 32916 J | |||
| 65 | 90 | 17 | 17 | 14 | HR 32913 J | 125 | 29 | 29 | 22 | HR 32016 XJ | |||
| 100 | 23 | 23 | 17.5 | HR 32013 XJ | 125 | 36 | 36 | 29.5 | HR 33016 J | ||||
| 100 | 27 | 27 | 21 | HR 33013 J | 130 | 37 | 37 | 29 | HR 33116 J | ||||
| 110 | 34 | 34 | 26.5 | HR 33113 J | 140 | 28.25 | 26 | 22 | HR 30216 J | ||||
| 120 | 24.75 | 23 | 20 | HR 30213 J | 140 | 28.25 | 26 | 20 | 30216 CA | ||||
| 120 | 32.75 | 31 | 27 | HR 32213 J | 140 | 35.25 | 33 | 28 | HR 32216 J | ||||
| 120 | 41 | 41 | 32 | HR 33213 J | 140 | 46 | 46 | 35 | HR 33216 J | ||||
| 140 | 36 | 33 | 28 | HR 30313 J | 170 | 42.5 | 39 | 33 | HR 30316 J | ||||
| 140 | 36 | 33 | 23 | HR 30313 DJ | 170 | 42.5 | 39 | 27 | HR 30316 DJ | ||||
| 140 | 36 | 33 | 23 | HR 31313 J | 170 | 42.5 | 39 | 27 | HR 31316 J | ||||
| 140 | 51 | 48 | 39 | HR 32313 J | 170 | 61.5 | 58 | 48 | HR 32316 J | ||||
Q: Are you trading company or manufacturer ?
A: We are a manufacture
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What causes bearing noise?
A: Bearing noise is a function of both the bearing and the way it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing load, and improper installation. Once the abnormal noise occurred, you can contact our engineers, we will help you find the reasons and provide the appropriate solutions.
Q: What is your terms of payment ?
A.100%T/T
B.Bank transfer
C.Western Union
D.Paypal
