361534 361542 Pg 2-A Spare Parts Automatic Powder Gun Cascade High Voltage

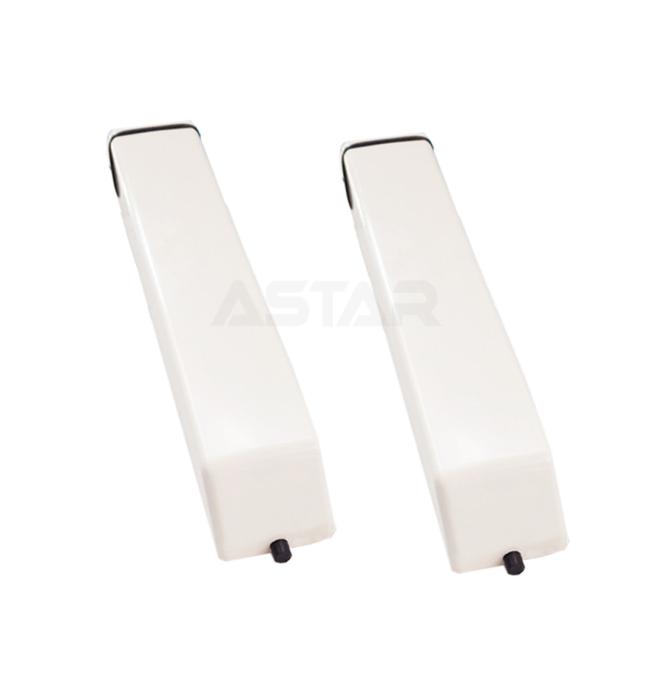

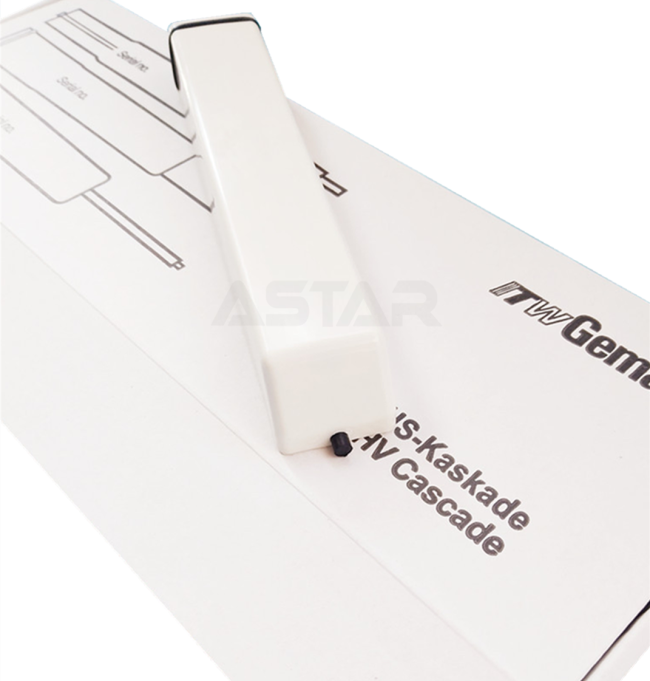

361534 361542 PG 2-A Automatic Powder Gun High Voltage Cascade
Introduction
The voltage generator module (control module) of the PGC or OptiTronic control module supplies high-frequency low-voltage of approximately 10 Veff.This voltage is fed through the gun cable and the gun connector to the high-voltage cascade. In the cascade this low voltage is stepped up.

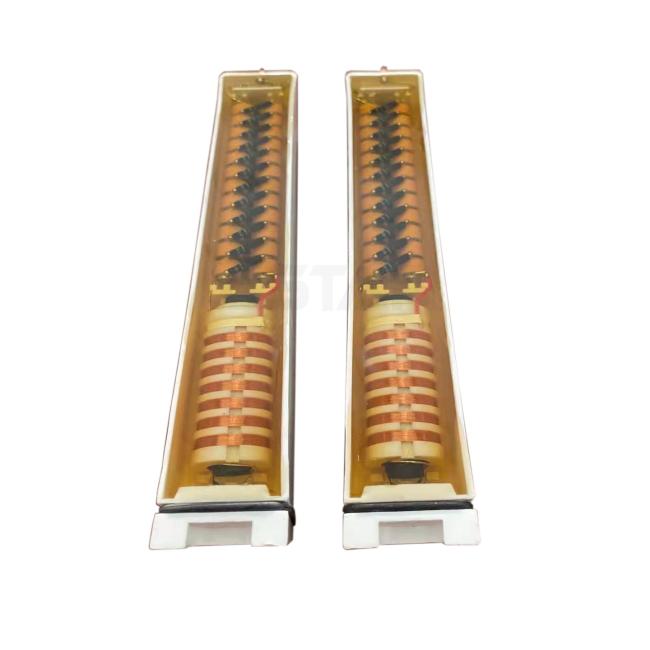

This primary high-voltage is subse quently rectified and multiplied in several stages in the cascade until the required high voltage is attained. The high-voltage is then fed from the spray nozzle to the electrode
Application
PG 2-A Automatic Powder Gun
Quick Details
|
Name
|
High voltage cascade | Type | Automatic |
|
Voltage
|
10V | Polarity | Negative or positive) |
| Application | PG1 Powder Gun | Rated input voltage | 10 V |
| Function | High-voltage generation | Rated output voltage | 98 kV |
| Maximum output current | 100 µA | Warranty | 1 year |
Advantages and selling points
1. Original quality
2. Stable performance
3. Long working life
4. Good after sale service
Package
Paper box package
