1015832 Filter Element for Ig07 Powder Injector Powder Feed Pump Spare Parts
Price:
Negotiable
MOQ:
1 Piece
Delivery Time:
5 - 8 work days
Brand:
Astar
Product Description
1015832 Filter Element for Ig07 Powder Injector Powder Feed Pump Spare Parts
Engineered for superior performance and operational efficiency in industrial powder coating applications, this automatic tribo gun delivers exceptional results with minimal maintenance requirements.
Product Overview
Designed with minimal replacement parts for easy cleaning and simple maintenance, this powder coating gun reduces operational costs while ensuring reliability and long service life. The system features an extendable body design with tube and click connections for versatile applications.
Applications
This compact automatic powder gun incorporates advanced powder coating technology, offering high performance for machine, reciprocator, or robot-mounted applications. Its lightweight design minimizes energy consumption while maintaining optimal performance.
Technical Specifications
| Product Name |
Filter Element
|
| Brand |
ASTAR
|
| Model number | 1015882 |
| Size | Standard |
| Company Capability | Independently Produced |
| Usage | Powder Coating |
Product Images
Related Product Recommendations

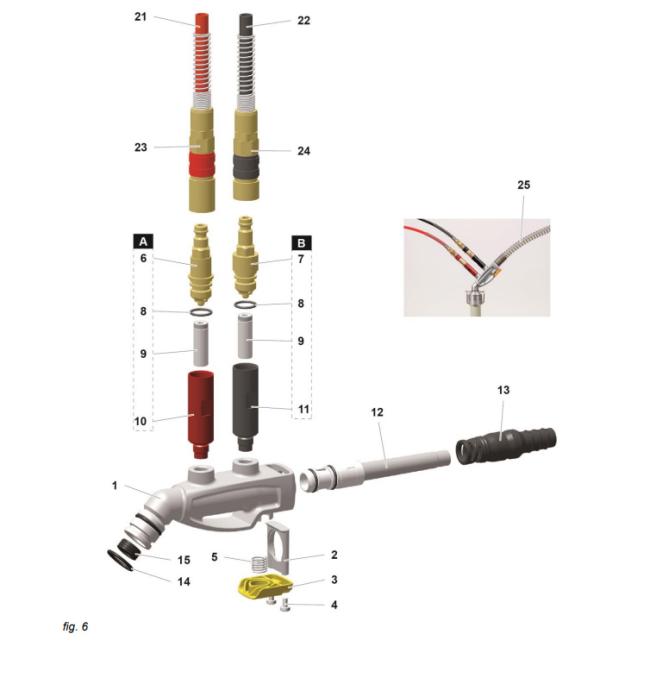

| IG07 Powder injector – complete (pos. 1-15) 1015 100 | 1018800 | |
| A | Conveying air check valve unit (red marking) – complete (incl. pos. 6, 8, 9 and 10) | 1015830 |
| B | Supplementary air check valve unit (black marking) – complete (incl. pos. 7, 8, 9 and 11) |
1015831 |
| 1 | Injector body – without pos. 14 and 15 | 1015102 |
| 2 | Slide gate | 1015104 |
| 3 | Release trigger | 1014810 |
| 4 | Screw – M3x6 mm | 1014812 |
| 5 | Compression spring | 1014183 |
| 6 | Connector (conveying air) – NW 5.5 | 1004366 |
| 7 | Connector (supplementary air) – NW 5.5 | 1004367 |
| 8 | O-ring – Ø 11x1.5 mm | 1000532 |
| 9 | Filter element | 1015832 |
| 10 | Body (red) | 1015835 |
| 11 | Body (black) | 1015836 |
| 12 | Cartridge – complete | 1016561# |
| 13 | Hose connection – complete (incl. pos. 13.1) | 1014806 |
| 13.1 | O-ring – Ø 13x1.5 mm | 1023234# |
| 14 | O-ring – Ø 16x2 mm | 1007794# |
| 15 | Axial gasket – complete | 1014814 |
| 21 | Conveying air hose – Ø 8/6 mm (red) | 103500* |
| 22 | Supplementary air hose – Ø 8/6 mm (black) | 1008038* |
| 23 | Quick release coupling for conveying air hose – NW5-Ø 8 mm | 261645 |
| 24 | Quick release coupling for supplementary air hose – NW5-Ø 8 mm | 261637 |
| 25 | Kink protection | 1008844 |
| Powder hose – 66 type, POE, Ø 16/11 mm, with conductive strip (standard) | 105139*# | |
| Powder hose – 74 type, POE, Ø 15/10 mm, with conductive strip | 1001673*# | |
| Powder hose – 75 type, POE, Ø 18/12 mm, with conductive strip | 1001674*# | |
Key Advantages
- Premium materials and reliable technology
- Sturdy construction for extended service life
- Excellent quality with competitive pricing
- Easy installation and maintenance
Packaging
Paper box packaging for secure transportation and storage.
