Excavator R220-7 Remote Control Lever Repair Seal Kit Joystick Valve Seal Kit 91ER-20051 91ER-20050
Price:
Negtiation
MOQ:
1 kit
Delivery Time:
3-7 days after payment
Brand:
GUKE
Product Description
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Hyundai Excavator Joystick Valve Repair Seal Kit |
| Condition | 100% New |
| Material: | NBR Fluorine rubber |
| Machine Model: | R220-7 |
| Part Number: | 91ER-20051 91ER20051 91ER-20050 91ER20050 |
| Size: | Standard Size |
| Hardness: | 92degree |
| Temparature: | -30 ℃To 200 ℃ Depending On Material |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

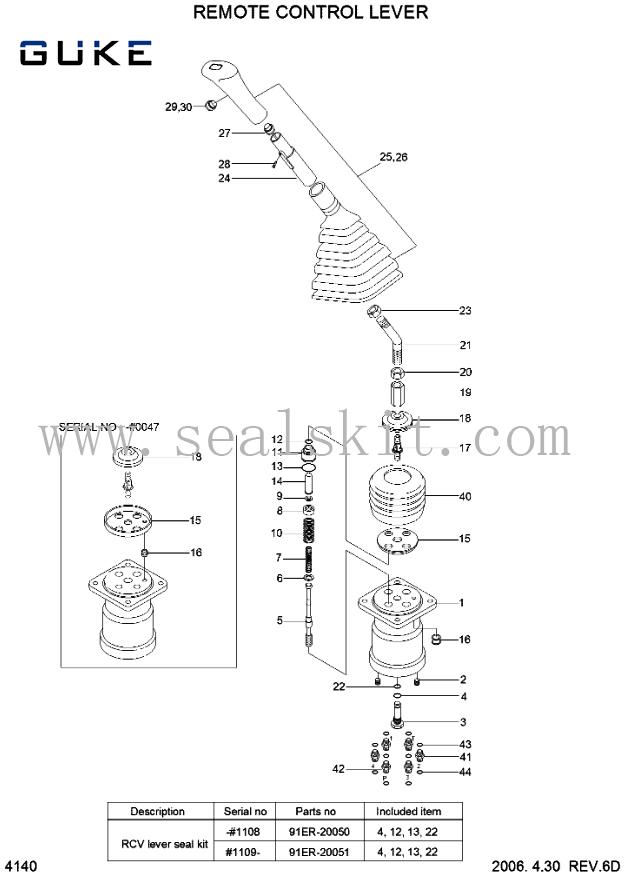

Parts List:
| Pos. | Part No | Qty | Parts name |
| *. | 31N8-20150 | 1 | RCVSUBASSY-LH |
| *. | 31N8-20200 | 1 | RCVSUBASSY-LH |
| *. | 31N8-24200 | 1 | RCVSUBASSY-LH |
| *. | 31N8-20160 | 1 | RCVSUBASSY-RH |
| *. | 31N8-20210 | 1 | RCVSUBASSY-RH |
| *. | 31N8-24210 | 1 | RCVSUBASSY-RH |
| *-1. | 31N6-20060 | 1 | RCVLEVER-LH |
| *-1. | 31N6-20061 | 1 | RCVLEVER-LH |
| *-1. | 31N6-20070 | 1 | RCVLEVER-RH |
| *-1. | 31N6-20071 | 1 | RCVLEVER-RH |
| 1 | XKAY-00066 | 1 | CASE |
| 1 | XKAY-00077 | 1 | CASE |
| 2 | XKAY-00065 | 4 | PLUG |
| 3 | XKAY-00064 | 1 | PLUG |
| K4. | XKAY-00063 | 1 | O-RING |
| *-1. | XKAY-00615 | 4 | SPOOLKIT |
| 5 | XKAY-00062 | 4 | SPOOL |
| 6 | XKAY-00061 | 4 | SHIM |
| 7 | XKAY-00060 | 4 | SPRING |
| 8 | XKAY-00059 | 4 | SEAT-SPRING |
| 9 | XKAY-00058 | 4 | STOPPER |
| 10 | XKAY-00057 | 4 | SPRING |
| 10 | JA2K5001 | 4 | SPRING |
| 11 | XKAY-00056 | 4 | PLUG |
| K12. | XKAY-00055 | 4 | SEAL-ROD |
| K13. | XKAY-00054 | 4 | O-RING |
| 14 | XKAY-00052 | 4 | ROD-PUSH |
| *-2. | XKAY-00608 | 4 | PLUGKIT(1,3) |
| 11 | XKAY-00610 | 4 | PLUG |
| 12 | XKAY-00611 | 1 | SEAL-ROD |
| 13 | XKAY-00054 | 4 | O-RING |
| 14 | XKAY-00052 | 4 | ROD-PUSH |
| 15 | XKAY-00051 | 1 | PLATE |
| 15 | XKAY-00075 | 1 | PLATE |
| 16 | XKAY-00050 | 1 | BUSHING |
| 16 | XKAY-00074 | 1 | BUSHING |
| 17 | XKAY-00049 | 1 | JOINTASSY |
| 18 | XKAY-00048 | 1 | PLATE-SWASH |
| 18 | XKAY-00073 | 1 | SWASHPLATE |
| 19 | XKAY-00047 | 1 | NUT-HEX |
| 20 | XKAY-00046 | 1 | NUT |
| *-3. | XKAY-00617 | 1 | HANDLEKIT(L) |
| *-3. | XKAY-00616 | 1 | HANDLEKIT(R) |
| 21 | XKAY-00044 | 1 | CONNECTOR-HANDLE |
| K22. | XKAY-00045 | 1 | O-RING |
| 23 | XKAY-00043 | 1 | NUT |
| 24 | XKAY-00042 | 1 | INSERT |
| 25 | XKAY-00041 | 1 | BOOT |
| N26. | XKAY-00040 | 1 | HANDLE-LH |
| N26. | XKAY-00076 | 1 | HANDLE-RH |
| 27 | XKAY-00039 | 1 | SWITCHASSY |
| 28 | XKAY-00038 | 1 | SCREW |
| 29 | XKAY-00037 | 1 | SWITCHASSY |
| 30 | XKAY-00036 | 1 | COVER-SWITCH |
| 40 | XKAY-00072 | 1 | BOOT |
| 41 | P010-110012 | 5 | CONNECTOR |
| 41 | X500-110011 | 5 | CONNECTOR-ORFS |
| 42 | 31EK-20110 | 1 | FILTER-LASTGUARD |
| 42 | 31N6-25070 | 1 | FILTER-LASTGUARD |
| 43 | S631-011004 | 6 | O-RING |
| 44 | S621-012001 | 6 | O-RING |
| K. | 91ER-20050 | 1 | SEALKIT |
| K. | 91ER-20051 | 1 | SEALKIT |
Appliion Chart:
