K9004000 K9004001 Remote Control Lever Repair Seal Kit For Doosan Excavator
K9004000 K9004001 Remote Control Lever Repair Seal Kit For Doosan Excavator

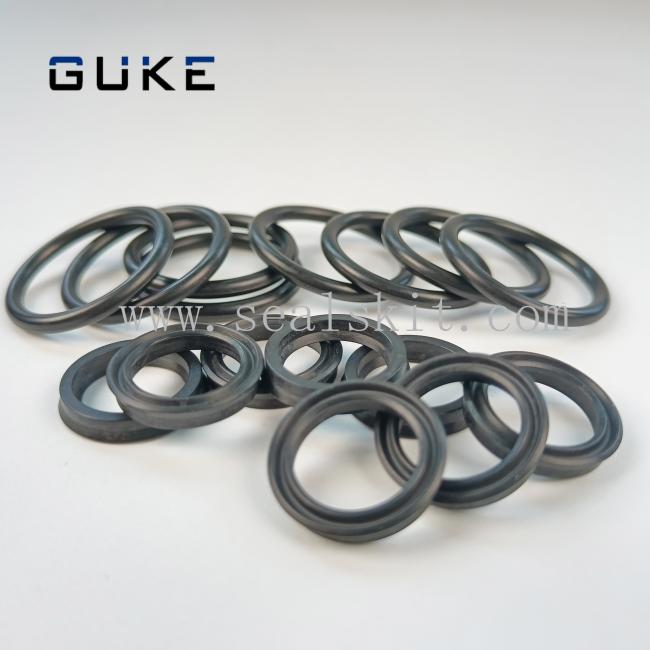

Excavator Repair Kit:
The excavator repair kit is designed to provide a convenient and comprehensive solution for repairing or replacing Orings in excavators. The kit is made of H.NBR 90 material, which is known for its excellent resistance to oil, hydraulic fluids, and abrasion. The kit can be customized to meet specific needs, such as different sizes or quantities of Orings. The product code 14511214 15155158 is used to identify the kit in the market.
GUKE Oil Seal:
GUKE oil seal is a company that specializes in the production and distribution of high-quality seals for various industries. The company sources raw materials from top suppliers in Germany and Japan to ensure the quality of its products. In addition to its own brand of seals, GUKE also offers seals from other well-known brands, providing customers with a wide range of options.
| Product Overview | |
| Name: | Doosan Excavator Joystick Valve Repair Seal Kit |
| Condition | 100% New |
| Material: | NBR Fluorine rubber |
| Machine Model: | DX225LCA |
| Part Number: | K9004000 K9004001 |
| Size: | Standard Size |
| Hardness: | 92degree |
| Temparature: | -30 ℃To 200 ℃ Depending On Material |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

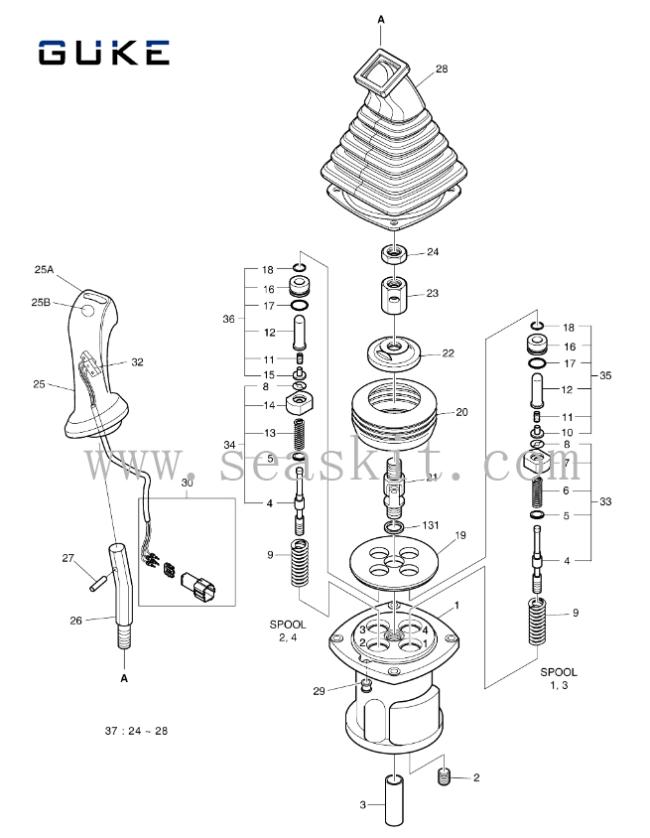

Parts List:
| Pos. | Part No | Qty | Parts name | Comments |
| -. | 410113-00022A | 1 | 410113-00124A | |
| -. | 410113-00021A | 1 | 410113-00125A | |
| -. | 410113-00124A | 1 | 410113-00124B | |
| -. | 410113-00125A | 1 | 410113-00125B | |
| -. | 410113-00124B | 1 | ||
| -. | 410113-00125B | 1 | ||
| -. | K1000556H | 1 | VALVE;REMOCON(L.H) | 410113-00022A |
| -. | K1000555H | 1 | VALVE;REMOCON(R.H) | 410113-00021A |
| 1 | K9001114 | 1 | CASE | |
| 10 | 1.416-00017 | 2 | STOPPER | |
| 11 | K9001121 | 4 | SPRING | |
| 12 | K9001766 | 4 | ROD;PUSH | |
| 13 | K9001123 | 2 | SPRING | |
| 131 | 110951-01142 | 1 | SPACER | |
| 14 | K9001767 | 2 | SEAT;SPRING | |
| 15 | 1.416-00018 | 2 | STOPPER | |
| 16 | K9001768 | 4 | PLUG | |
| 17 | S8000205 | 4 | O-RING | |
| 18 | K9001127 | 4 | SEAL;ROD | |
| 19 | 1.412-00017 | 1 | PLATE | |
| 19 | 250201-02097 | 1 | PLATE | |
| 2 | 2181-1116D2 | 4 | PLUG | |
| 20 | K9001128 | 1 | BOOT | |
| 21 | 1.138-00004 | 1 | JOINT ASSY | |
| 22 | K9001129A | 1 | PLATE;SWASH | 400901-00076 |
| 22 | K9001129 | 1 | PLATE;SWASH | K9001129A |
| 22 | 400901-00076 | 1 | PLATE,SWASH | |
| 23 | 1.121-00028 | 1 | NUT | |
| 24 | S4012833 | 1 | NUT | |
| 25 | K9001130 | 1 | HANDLE ASSY(L.H) | |
| 25 | K9001131 | 1 | HANDLE ASSY(R.H) | |
| 25A. | 1.161-00021 | 1 | CAP;PEANUT | |
| 25A. | 1.161-00021 | 1 | CAP;PEANUT | |
| 25B. | 1.161-00017 | 1 | CAP;ROUND | |
| 25B. | 1.161-00017 | 1 | CAP;ROUND | |
| 26 | 1.178-00004 | 1 | BAR;HANDLE | |
| 27 | S5740800 | 1 | PIN;SPRING | |
| 28 | K9001132 | 1 | BELLOWS | |
| 29 | 1.110-00169 | 1 | BUSHING | |
| 3 | K9001115 | 1 | BUSHING | |
| 30 | K9001133 | 1 | CONNECTOR ASSY | |
| 32 | K9001001 | 1 | SWITCH ASSY | |
| 33 | 410207-00175 | 1 | 410207-00520 | |
| 33 | K9003998 | 1 | KIT;SPOOL(1,3) | |
| 33 | 410207-00520 | 1 | ||
| 34 | K9003999 | 1 | KIT;SPOOL(2,4) | |
| 34 | 410207-00176 | 1 | 410207-00521 | |
| 34 | 410207-00521 | 1 | ||
| 35 | K9006480 | 1 | KIT;PLUG(1,3) | K9004000 |
| 35 | K9004000 | 1 | KIT;PLUG(1,3) | 430221-01047 |
| 35 | 430221-01047 | 1 | ||
| 36 | K9006481 | 1 | KIT;PLUG(2,4) | K9004001 |
| 36 | K9004001 | 1 | KIT;PLUG(2,4) | 430221-01048 |
| 36 | 430221-01048 | 1 | ||
| 37 | K9001139 | 1 | KIT;HANDLE(R.H) | 110925-00432 |
| 37 | K9001140 | 1 | KIT;HANDLE(L.H) | 110925-00431 |
| 37 | 110925-00432 | 1 | ||
| 37 | 110925-00431 | 1 | ||
| 4 | K9001116 | 4 | SPOOL | |
| 5 | 1.114-00012 | 1 | SHIM | |
| 6 | K9001117 | 2 | SPRING | |
| 7 | K9001762 | 2 | SEAT;SPRING | |
| 8 | K9001763 | 4 | STOPPER | |
| 9 | K9001119 | 4 | SPRING |
Appliion Chart:
