Dozer D40A-3 D41P-3 Blade Lift Cylinder Repair Seal Kit 12F-63-05020 12F6305020
Dozer D40A-3 D41P-3 Blade Lift Cylinder Repair Seal Kit 12F-63-05020 12F6305020
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Dozer D40A-3 D41P-3 Blade Lift Cylinder Repair Seal Kit 12F-63-05020 12F6305020 |
| Condition | 100% New |
| Material: | PU+PTFE+NBR+IRON+ Phenolic |
| Machine Model: |
D375A-6 |
| Part Number: | 12F-63-05020 12F6305020 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -40 ℃To 110 ℃ |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

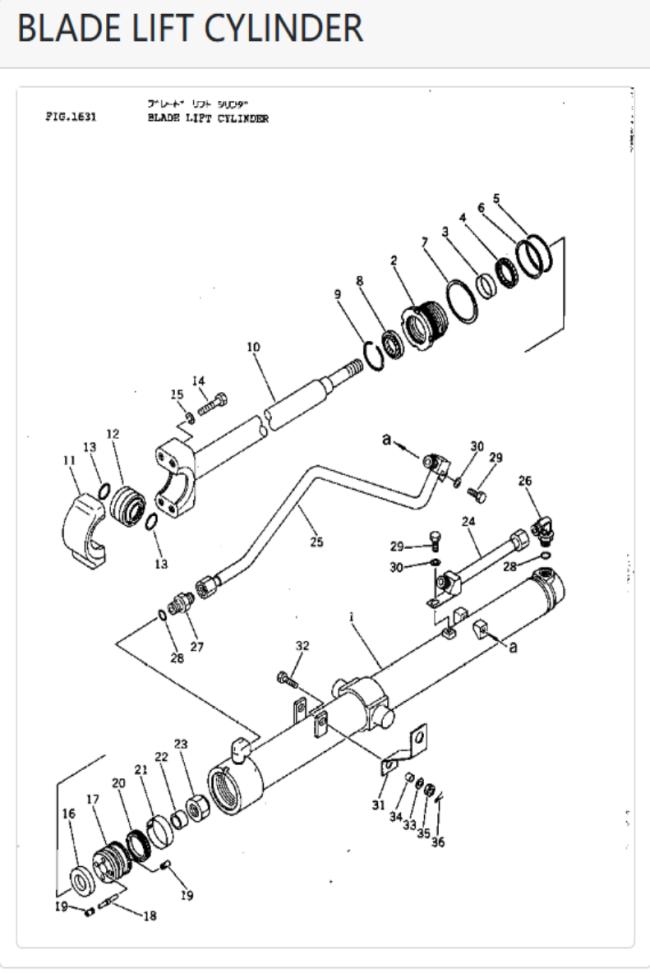

Parts List:
| Pos. | PartNo | Parts name | Qty |
| 12F-63-13701 | CYLINDER,L.H. | 1 | |
| 12F-63-13801 | CYLINDER,R.H. | 1 | |
| 12F-63-00010 | CYLINDER | 1 | |
| 1 | 12F-63-13740 | CYLINDER | 1 |
| 2 | 707-29-70390 | HEAD,CYLINDER | 1 |
| 3 | 07177-04530 | BUSHING | 1 |
| 4 | 707-51-45210 | PACKING,ROD | 1 |
| 5 | 07000-12075 | O-RING | 1 |
| 6 | 07001-02075 | RING,BACK-UP | 1 |
| 7 | 707-45-70010 | WASHER | 1 |
| 8 | 112-63-15370 | SEAL,DUST | 1 |
| 9 | 07179-00064 | RING,SNAP | 1 |
| 10 | 12F-63-13720 | ROD,PISTON | 1 |
| 11 | 130-63-12260 | CAP | 1 |
| 07137-03505 | BUSHING | 1 | |
| 12 | 07137-00030 | SEAL,DUST | 2 |
| 13 | 07000-03035 | O-RING | 2 |
| 14 | 01010-51675 | BOLT | 4 |
| 15 | 01602-21648 | WASHER,SPRING | 4 |
| 16 | 12F-63-13560 | SLIDER | 2 |
| 12F-63-00020 | PISTON | 1 | |
| 20 | 707-44-70080 | RING,PISTON | 1 |
| 21 | 07155-00720 | RING,WEAR | 1 |
| 22 | 10G-63-13270 | COLLAR | 1 |
| 23 | 07165-12426 | NUT | 1 |
| 24 | 12F-63-13770 | TUBE | 1 |
| 25 | 12F-63-13760 | TUBE,L.H. | 1 |
| 25 | 12F-63-13860 | TUBE,R.H. | 1 |
| 26 | 07235-10422 | ELBOW | 1 |
| 27 | 07230-10422 | UNION | 1 |
| 28 | 07002-12034 | O-RING | 2 |
| 29 | 01010-51016 | BOLT | 2 |
| 30 | 01643-31032 | WASHER | 2 |
| 31 | 12F-63-13672 | PLATE | 1 |
| 32 | 01012-51035 | BOLT | 1 |
| 33 | 01641-21626 | WASHER | 1 |
| 34 | 130-63-12490 | COLLAR | 1 |
| 35 | 01590-11012 | NUT | 1 |
| 36 | 04050-02018 | PIN,COTTER | 1 |
| GUKE WWW.SEALSKIT.COM | |||
