Dozer D50-17 D53-17 D50A-17 D50P-17 Blade Lift Cylinder Repair Seal Kit 707-98-26540 7079826540

Dozer D50-17 D53-17 D50A-17 D50P-17 Blade Lift Cylinder Repair Seal Kit 707-98-26540 7079826540
    The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
   We use high quanlity raw materials from Gemany and Japen.
   We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

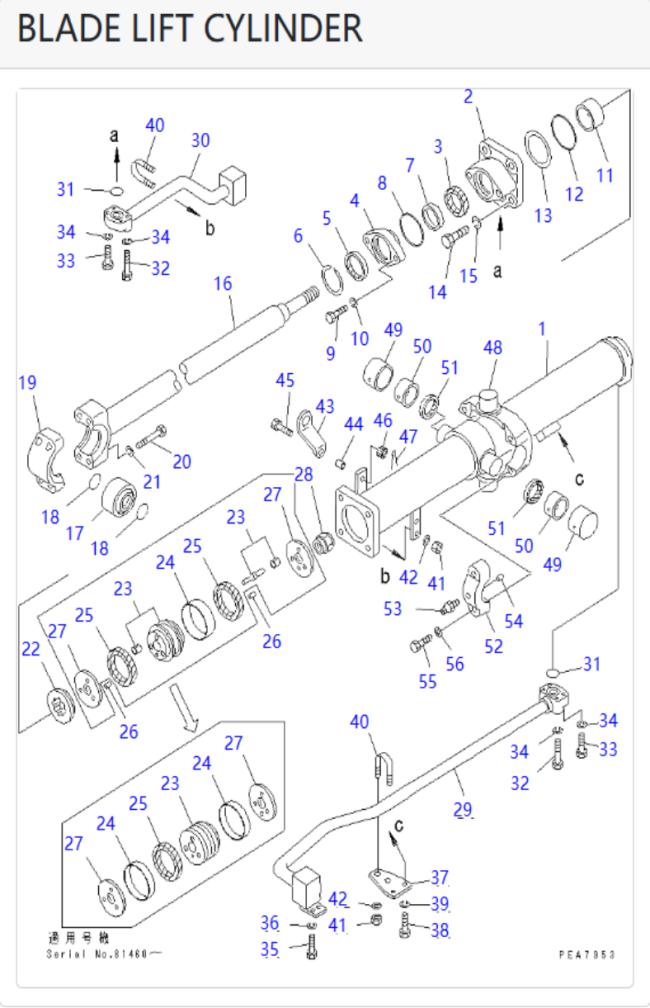

Parts List:


Pos.	Part No	Parts name	Qty
	130-63-12300	CYLINDER ,L.H.	1
	130-63-12006	CYLINDER	1
	130-63-12400	CYLINDER ,R.H.	1
	130-63-12106	CYLINDER ,R.H.	1
1.	130-63-12145	CYLINDER,L.H.	1
1.	130-63-12245	CYLINDER,R.H.	1
2.	130-63-12133	HEAD,CYLINDER	1
3.	707-51-55110	PACKING,ROD	1
4.	07178-15530	GLAND	1
5.	707-56-55510	SEAL,DUST	1
6.	07179-00077	RING,SNAP	1
7.	07177-05512	BUSHING	1
8.	07000-03070	O-RING	1
9.	01010-31445	BOLT	2
10.	01602-01442	WASHER,SPRING	2
11.	07177-05530	BUSHING	1
12.	07000-12085	O-RING	1
13.	07146-02086	RING,BACK-UP	1
14.	01010-31645	BOLT	4
15.	01602-01648	WASHER,SPRING	4
16.	130-63-12124	ROD,PISTON	1
	07137-03505	BUSHING	1
17	07137-00030	SEAL	2
18.	07000-03035	O-RING	2
19.	130-63-12260	CAP	1
20.	01010-31675	BOLT	4
22.	130-63-12660	SLIDER	1
23.	130-63-12050	VALVE	1
23.	130-63-12064	VALVE	1
24.	707-39-90110	RING,WEAR	2
24.	07155-00925	RING,WEAR	1
25.	707-44-90070	RING,PISTON	1
25.	707-42-90012	PACKING,PISTON	2
26.	130-63-12761	PIN	2
27.	707-40-90060	RETAINER	2
27.	707-40-90030	RETAINER	2
28.	130-63-12860	NUT,NYLON	1
29.	130-63-12187	TUBE,L.H.	1
29.	130-63-12287	TUBE,R.H.	1
30.	130-63-12193	TUBE,L.H.	1
30.	130-63-12293	TUBE,R.H.	1
31.	07000-13030	O-RING	2
32.	01010-30850	BOLT	4
33.	01010-30835	BOLT	4
34.	01602-00825	WASHER,SPRING	8
35.	01010-30820	BOLT	2
37.	13F-63-13370	PLATE	1
38.	01010-31025	BOLT	2
39.	01602-01030	WASHER,SPRING	2
40.	07283-22738	CLIP	2
41.	01599-01011	NUT	4
42.	01643-31032	WASHER	4
43.	130-63-12390	PLATE	1
44.	130-63-12490	COLLAR	1
45.	01012-31035	BOLT	1
46.	01590-01012	NUT	1
47.	04050-02018	PIN,COTTER	1
48.	130-54-61430	SUPPORT	1
49.	130-54-61440	HOUSING	2
50.	130-54-61450	BUSHING	2
51.	07145-00045	SEAL,DUST	2
52.	130-54-61420	CAP	2
53.	07020-00000	FITTING,GREASE	2
54.	170-70-15190	PIN	2
55.	01010-31460	BOLT	4
GUKE              WWW.SEALSKIT.COM

Application Chart:









Our Advantages
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits more than 10 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
