Loader L150H Lifting Hydraulic Cylinder Repair Seal Kit VOE-11709018 11709018
Loader L150H Lifting Hydraulic Cylinder High Quality Repair Seal Kit VOE-11709018 11709018
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high,combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Wheel Loader L150H Lifting Hydraulic Cylinder Repair Seal Kit |
| Condition | 100% New |
| Material: | PU+PTFE+NBR+IRON+ Phenolic |
| Machine Model: |
L150H |
| Part Number: | VOE11709018 11709018 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -40 ℃To 110 ℃ |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

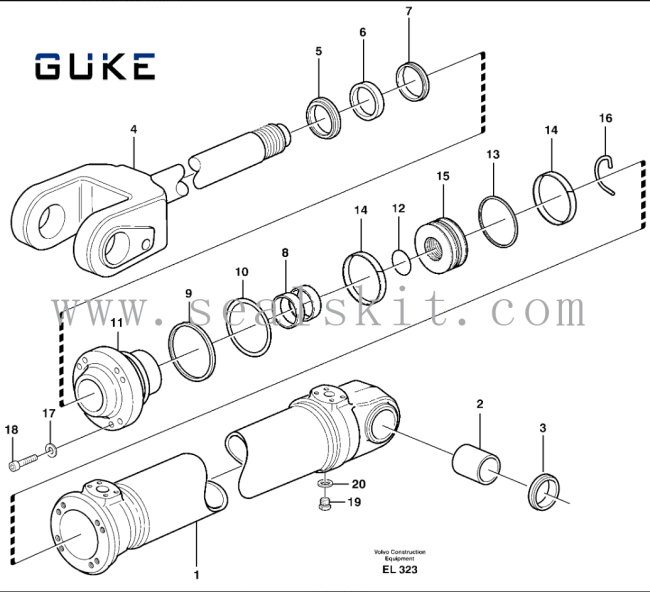

Parts List:
| Pos. | Part No | Qty | Parts Name |
| VOE11107539 | 1 | Hydraulic cylinder | |
| VOE11107714 | Hydraulic cylinder | ||
| 1 | VOE11107540 | 1 | Cylinder tube |
| VOE11107718 | Cylinder tube | ||
| 2 | VOE11093771 | 1 | Bushing |
| 3 | VOE11005099 | 2 | Scraper ring |
| 4 | VOE17409821 | 1 | Piston rod |
| 5 | VOE11005061 | 1 | Scraper ring |
| 6 | VOE11005107 | 1 | Piston rod seal |
| 7 | VOE11107371 | 1 | Piston rod seal |
| 8 | VOE11005427 | 2 | Bushing |
| 9 | VOE11005090 | 1 | Back-upring |
| 10 | VOE925034 | 1 | O-ring |
| 11 | VOE11107274 | 1 | Piston rod guide |
| 12 | VOE11107170 | 1 | O-ring |
| 13 | VOE11107811 | 1 | Piston seal |
| 14 | VOE11107223 | 2 | Guidering |
| 15 | VOE11107426 | 1 | Piston |
| 16 | VOE11107268 | 1 | Lock brace |
| 17 | VOE941912 | 8 | Spring washer |
| 18 | VOE4782860 | 8 | Hex.socketscrew |
| 19 | VOE960630 | 2 | Plug |
| 20 | VOE13945653 | 2 | Plane gasket |
| VOE11709018 | 1 | Sealing kit |
Application Chart:
Our Advantages
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits more than 10 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
