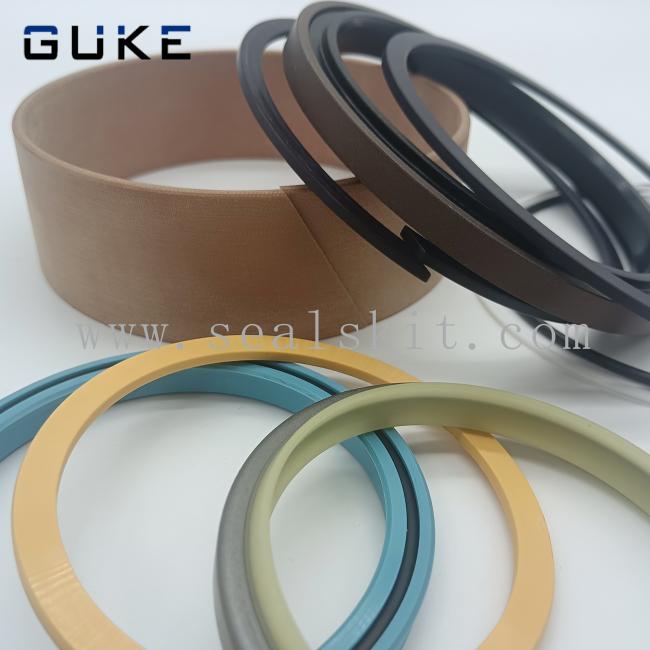

Grader GD825A-2 GD825A-2E0 Blade Lift Cylinder Repair Seal Kit 707-98-36230 7079836230
Grader GD825A-2 GD825A-2E0 Blade Lift Cylinder Repair Seal Kit 707-98-36230 7079836230 65*100
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Grader GD825A-2 GD825A-2E0 Blade Lift Cylinder Repair Seal Kit 707-98-36230 7079836230 |
| Condition | 100% New |
| Material: | PU+PTFE+NBR+IRON+ Phenolic |
| Machine Model: |
Grader GD825A-2 GD825A-2E0 |
| Part Number: | 707-98-36230 7079836230 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -40 ℃To 110 ℃ |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

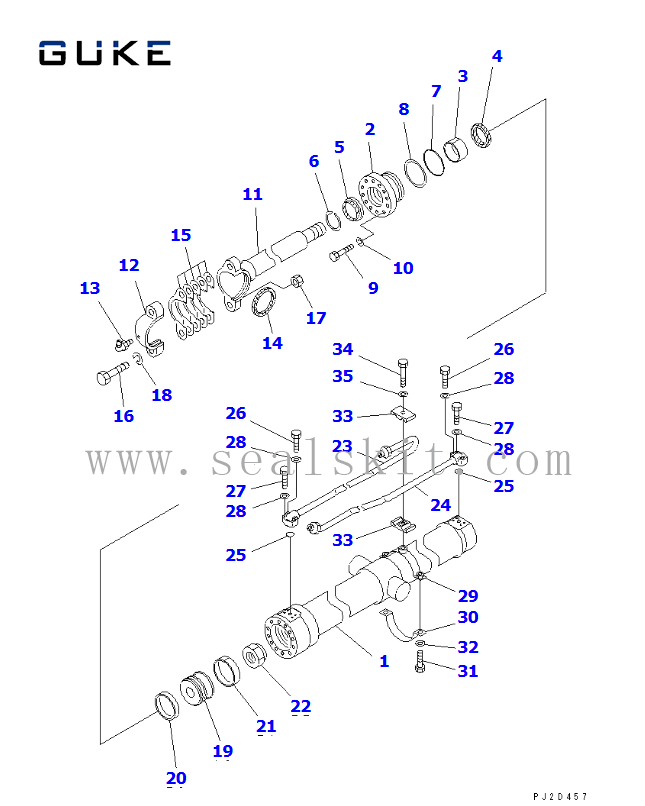

Parts List:
| Pos | Part No | Part Name | QTY |
| G1 | 707-03-X7280 | CYLINDER GROUP,L.H. | 1 |
| G1 | 707-03-X7290 | CYLINDER GROUP,R.H. | 1 |
| 235-63-16102 | CYLINDER ASSY | 1 | |
| 1 | 235-63-16140 | • CYLINDER | 1 |
| 2 | 707-27-10170 | • HEAD,CYLINDER | 1 |
| 3 | 07177-06530 | • BUSHING | 1 |
| 4 | 707-51-65211 | • PACKING,ROD (KIT) | 1 |
| 5 | 144-63-92170 | • SEAL,DUST (KIT) | 1 |
| 6 | 07179-12079 | • RING,SNAP | 1 |
| 7 | 07000-12095 | • O-RING (KIT) | 1 |
| 8 | 07146-02096 | • RING,BACK-UP (KIT) | 1 |
| 9 | 01010-81455 | • BOLT | 12 |
| 10 | 01643-31445 | • WASHER | 12 |
| 11 | 235-63-16220 | • ROD,PISTON | 1 |
| 12 | 707-66-65120 | • CAP | 1 |
| 13 | 07020-00900 | • FITTING,GREASE | 1 |
| 14 | 707-56-12550 | • SEAL,DUST | 1 |
| 15 | 707-88-32170 | • SHIM, 0.2MM | 3 |
| 15 | 07139-01102 | • SHIM, 0.2MM | 3 |
| 15 | 707-88-32180 | • SHIM, 0.5MM | 2 |
| 16 | 01011-82710 | • BOLT | 2 |
| 17 | 01580-12722 | • NUT | 2 |
| 18 | 01602-22783 | • WASHER,SPRING | 2 |
| 19 | 707-36-10260 | • PISTON | 1 |
| 20 | 707-44-10180 | • RING,PISTON (KIT) | 1 |
| 21 | 07155-01025 | • RING,WEAR (KIT) | 1 |
| 22 | 07165-14547 | • NUT,NYLON | 1 |
| 23 | 235-60-14640 | TUBE,L.H. | 1 |
| 23 | 235-60-14620 | TUBE,R.H. | 1 |
| 24 | 235-60-14630 | TUBE,L.H. | 1 |
| 24 | 235-60-14610 | TUBE,R.H. | 1 |
| 25 | 07000-13025 | O-RING | 2 |
| 26 | 01010-50830 | BOLT | 4 |
| 27 | 01010-50840 | BOLT | 4 |
| 28 | 01643-30823 | WASHER | 8 |
| 29 | 235-60-13831 | BAND | 1 |
| 30 | 235-60-17790 | BAND | 1 |
| 31 | 01010-50830 | BOLT | 2 |
| 32 | 01643-30823 | WASHER | 2 |
| 33 | 232-60-54830 | CLIP | 2 |
| 34 | 01010-51050 | BOLT | 1 |
| 35 | 01643-31032 | WASHER | 1 |
| K | 707-98-36230 | SERVICE KIT,BLADE LIFT CYLINDER | 2 |
Application Chart:
Our Advantages
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits more than 10 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
