LZ00447 Bucket Cylinder Seal Kit Excavator CX210LR CX210N CX225SR CX240 CX240LR CX210
Excavator CX210LR CX210N CX225SR CX240 CX240LR CX210 Bucket Cylinder Seal Kit LZ00447
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Excavator CX210LR CX210N CX225SR CX240 CX240LR CX210 Bucket Cylinder Seal Kit |
| Condition | 100% New |
| Material: | PU+PTFE+NBR+IRON+ Phenolic |
| Machine Model: | Excavator CX210LR CX210N CX225SR CX240 CX240LR CX210 |
| Part Number: | LZ00447 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -40 ℃To 110 ℃ |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

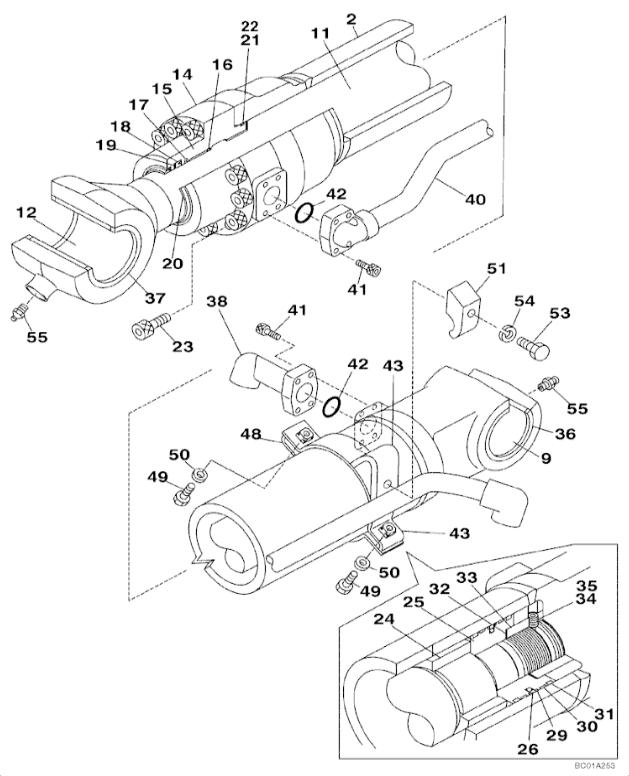

Parts List
| Pos. | PartNo | Qty | Partsname |
| .. | KRV3237 | 1 | BUCKETCYLINDER |
| .. | KRV3237R | 1 | REMAN-HYDCYLINDER |
| .. | KRV3237C | 1 | CORE-HYDCYLINDER |
| .. | LR00534 | 1 | HYDCYLSLEEVE |
| 2 | NSS | 1 | NOTSOLDSEPARAT |
| 9 | 160534A1 | 1 | BUSHING |
| .. | LB00587 | 1 | PISTONROD |
| 11 | NSS | 1 | NOTSOLDSEPARAT |
| 12 | 160535A1 | 1 | BUSHING |
| 14 | LU00101 | 1 | CYLINDERENDCAP |
| 15 | 155430A1 | 1 | BUSHING |
| 16 | 155696A1 | 1 | RING,SNAP |
| 17 | LE00766 | 1 | SEAL,80mmIDx96.2mmODx5.8mmThk |
| 18 | 155132A1 | 1 | RING,80mmIDx95mmODx9mmThk |
| 19 | 155241A1 | 1 | BACK-UPRING |
| 20 | 158033A1 | 1 | WIPERSEAL |
| 21 | 154741A1 | 1 | O-RING |
| 22 | 160812A1 | 1 | BACK-UPRING |
| 23 | 161059A1 | 10 | BOLT,HexSkt,M16x70mm,Cl12.9 |
| 24 | LE00702 | 1 | RING |
| 25 | LJ00664 | 1 | PISTON |
| 26 | 160824A1 | 1 | SEALINGRING |
| 29 | 160813A1 | 1 | BACK-UPRING |
| 30 | LE00703 | 1 | RING |
| 31 | 160827A1 | 2 | RING |
| 32 | 155721A1 | 1 | SHIM |
| 33 | LA00735 | 1 | SPECIALNUT |
| 34 | 156223A1 | 1 | SETSCREW |
| 35 | 155977A1 | 1 | BALL |
| 36 | 160482A1 | 2 | WIPERSEAL |
| 37 | 160484A1 | 2 | WIPERSEAL |
| 38 | LK00290 | 2 | TUBE |
| 40 | LK00425 | 2 | HYDTUBE |
| 41 | 862-10030 | 8 | HEXSOCSCREW,M10x30mm,Cl12.9 |
| 42 | 154528A1 | 2 | O-RING |
| 43 | LD00031 | 1 | CLAMPBRACKET |
| 48 | LD00040 | 1 | CLAMPBRACKET |
| 49 | 158131A1 | 2 | BOLT,HighStrength,M10x1.5x35mm,Cl10.9 |
| 50 | 156227A1 | 2 | WASHER |
| 51 | 155717A1 | 1 | COLLAR |
| 53 | 628-12055 | 1 | BOLT,Hex,M12x1.75x55mm,Cl10.9,FullThd |
| 54 | 892-10012 | 1 | LOCKWASHER,M12 |
| 55 | 153630A1 | 2 | LUBENIPPLE |
| .. | LZ00447 | 1 | SEALKIT |
| GUKE WWW.SEALSKIT.COM | |||
Application Chart:
Our Advantages
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits more than 10 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
