Komatasu Dozer WA475A Ripper Tilt Cylinder Seal Kit 707-99-77620 7079977620 Good quality
Price:
Negasiate
MOQ:
1KIT
Delivery Time:
3-7 days after payment
Brand:
GUKE
Product Description

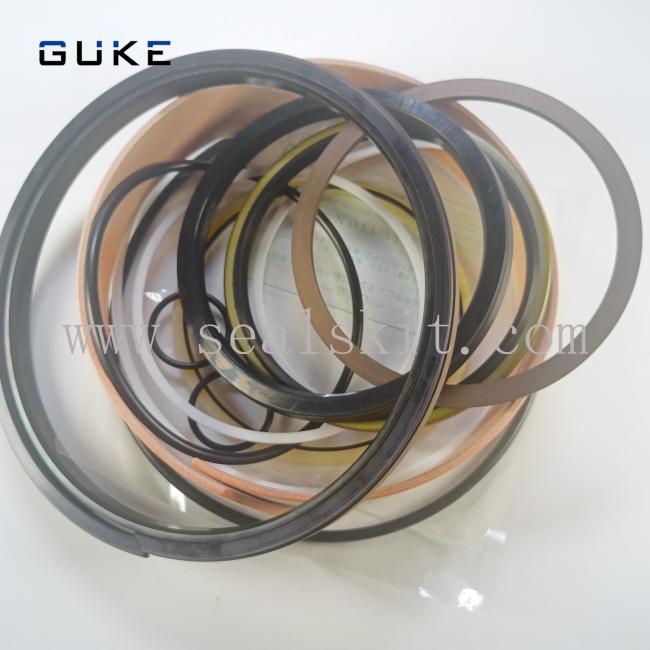

Komatasu Dozer WA475A Ripper Tilt Cylinder Seal Kit 707-99-77620 7079977620
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as N oK,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | WA475A Tilt Cylinder Seal Kit |
| Condition | 100% New |
| Material: | PU |
| Machine Model: | Komatsu WA475 |
| Part Number: | 707-99-77620 7079977620 |
| Size: | Standard Size |
| Hardness: | 90degree |
| Temparature: | -30 ℃To 120 ℃ |
| Feature: | Heat Resistance,Oil Resistance |
| Certification: | ISO 9001 |
| Raw Material: | HUNTSMAN of German ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |
APPLICATION CHART

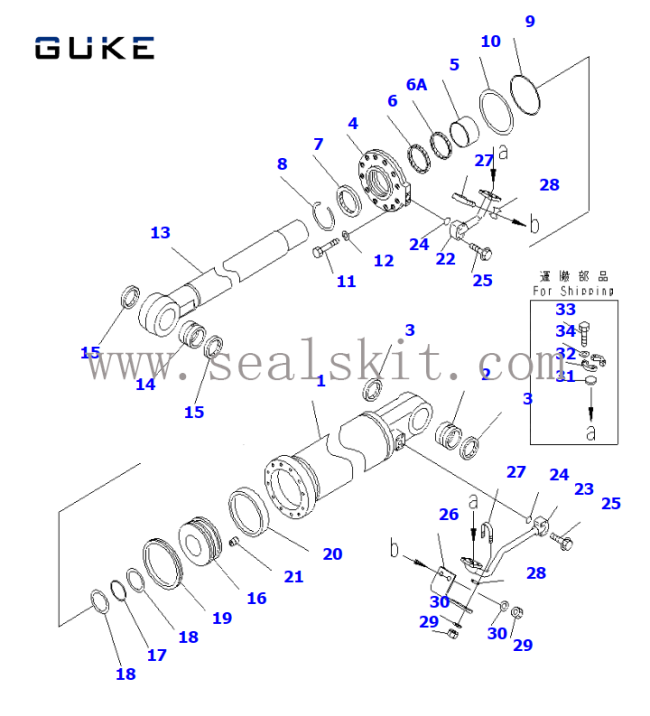

PARTS LIST
| ITEM | PARTSNO | PARTSNAME | QTY |
| 707-01-XYC60 | CYLINDERGROUP,L.H. | 1 | |
| G-1 | 707-01-XF560 | CYLINDERGROUP,L.H. | 1 |
| G-2 | 707-01-XYC70 | CYLINDERGROUP,R.H. | 1 |
| G-2 | 707-01-XF570 | CYLINDERGROUP,R.H. | 1 |
| 707-01-0F560 | CYLINDERASS'Y | 1 | |
| 1 | 707-13-22440 | • CYLINDER | 1 |
| 2 | 707-76-11121 | • BUSHING | 1 |
| 3 | 07145-00110 | SEAL,DUST(KIT) | 2 |
| 4 | 707-27-22470 | • HEAD,CYLINDER | 1 |
| 5 | 707-52-91160 | • BUSHING | 1 |
| 6 | 707-51-14080 | PACKING,ROD(KIT) | 1 |
| 6A | 707-51-14640 | RING,BUFFER(KIT) | 1 |
| 7 | 198-63-93170 | SEAL,DUST(KIT) | 1 |
| 8 | 07179-14160 | • RING,SNAP | 1 |
| 9 | 07000-15220 | O-RING(KIT) | 1 |
| 10 | 07001-05220 | RING,BACK-UP(KIT) | 1 |
| 11 | 01010-82295 | • BOLT | 12 |
| 12 | 01643-32260 | • WASHER | 12 |
| 13 | 707-58-14240 | • ROD,PISTON | 1 |
| 14 | 707-76-11021 | • BUSHING | 1 |
| 15 | 07145-00110 | SEAL,DUST(KIT) | 2 |
| 16 | 707-36-22570 | • PISTON | 1 |
| 17 | 07000-B5140 | O-RING(KIT) | 1 |
| 18 | 707-35-91670 | RING,BACK-UP(KIT) | 2 |
| 19 | 707-44-22290 | RING,PISTON(KIT) | 1 |
| 20 | 07155-02250 | RING,WEAR(KIT) | 1 |
| 21 | 01310-01216 | • SCREW | 1 |
| 22 | 707-86-12490 | TUBE,L.H. | 1 |
| 22 | 707-86-12510 | TUBE,R.H. | 1 |
| 23 | 707-86-12500 | TUBE,L.H. | 1 |
| 23 | 707-86-12520 | TUBE,R.H. | 1 |
| 24 | 07000-13035 | O-RING(KIT) | 2 |
| 25 | 01435-01055 | BOLT | 8 |
| 26 | 707-88-35690 | PLATE,L.H. | 1 |
| 26 | 707-88-35700 | PLATE,R.H. | 1 |
| 27 | 07283-33450 | CLIP | 2 |
| 28 | 07283-53440 | SHEET | 2 |
| 29 | 01597-01009 | NUT | 4 |
| 30 | 01643-31032 | WASHER | 4 |
| 31 | 707-88-33040 | CAP,SLEEVE(FORSHIPPING) | 2 |
| 32 | 07371-31049 | FLANGE,SPLIT(FORSHIPPING) | 4 |
| 33 | 07372-21035 | BOLT,(FORSHIPPING) | 8 |
| 34 | 01643-51032 | WASHER,(FORSHIPPING) | 8 |
| 707-99-77620 | SERVICEKIT | 2 |
