100% Montabert BRH 501 Part No Hydraulic Breaker Seal Kit
Price:
Negtiation
MOQ:
1 kit
Delivery Time:
3-7 days after payment
Brand:
GUKE
Product Description
Montabert BRH 501 Hydrualic Breaker Seal Kit
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Montabert BRH 501 Hydrualic Breaker Seal Kit |
| Condition | 100% New |
| Material: | PU + PTFE + NY + NBR |
| Machine Model: | Montabert BRH 501 |
| Part Number: | Montabert BRH 501 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -30 Degree To 120 Degree |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German + ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

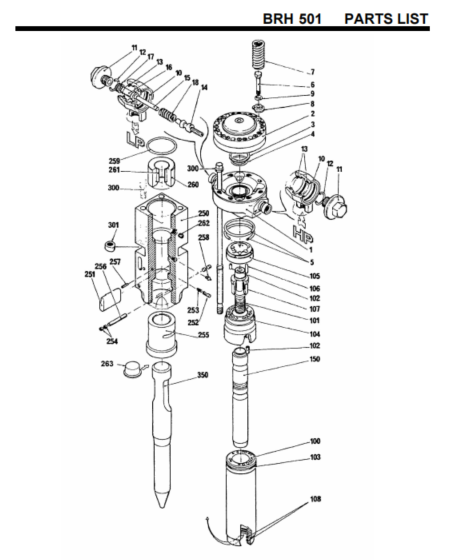

| BRH 501 PARTS LIST | |||
| Rep | Qty | Desiqnation | Part number |
| Back Head ass'y,composed of: | |||
| 1 | 1 | -Back head | 53221 |
| 3 | 1 | -Nylon washer | 18652 |
| 4 | 1 | -O'ring | 33616 |
| 2 | 1 | -Accumulator | 22848 |
| 5 | 2 | -O'ring to s/n 20214 | 19856 |
| 5 | 2 | -O'ring from s/n 20236 | 36579 |
| 6 | 8 | -Screw 51/2" | 24658 |
| 8 | 8 | -Spring guide | 22894 |
| 9 | 8 | -Washer | 22573 |
| HP rotating connection ass'y,composed of: | |||
| 10 | 1 | -Knee part (1"1/4 NPTF) | 56047 |
| 11 | 1 | -Threaded plug | 21292 |
| 12 | 1 | -O'ring | 6711 |
| 13 | 2 | -O'ring | 5346 |
| LP rotating connection ass'y,composed of: | |||
| 10 | 1 | -Knee piece(1"1/4 NPTF) | 56047 |
| 11 | 1 | -Threaded plug | 21292 |
| 12 | 1 | -O'ring | 6711 |
| 13 | 2 | -O'ring | 5346 |
| 14 | 1 | -Slide BRH 501B&501SB | 22974 |
| or | 1 | -Slide BRH 501C&501SC | 22975 |
| 17 | 12-20 | -Pressure adjustment shims | 21291 |
| 15 | 1 | -Spring slide | 21289 |
| 16 | 1 | -Barrel | 21290 |
| 18 | 1 | -Spring | 18083 |
| Distribution ass'y,composed of: | |||
| 104 | 1 | -Distribution box | 19708 |
| 107 | 1 | -Distributor | 17678 |
| 106 | 3 | -Piston | 23062 |
| 105 | 1 | -Distribution cover | 23061 |
| 102 | 2 | -Centering pin | 19867 |
| Cylinder ass'y,composed of: | |||
| 100 | 1 | -Cylinder | 28362 |
| 108 | 2 | -Lip seal | 19698 |
| 103 | 1 | -O'ring | 19856 |
| Striker ass'y,composed of: | |||
| 150 | 1 | -Piston BRH 501B&501SB | 19703 |
| 101 | 1 | -Plunger | 19171 |
| 150 | 1 | -Piston BRH 501C&501SC | 19704 |
| 101 | 1 | -Plunger | 19170 |
| Front guide ass'y,composed of: | |||
| 250250 | 11 | Front-Guide (square retaining pins) Front Guide (round retaining pins) |
2920938939 |
| 259 | 1 | O'ring | 19856 |
| 255 | 1 | Chuck bushing | 20944 |
| 256 | 1 | Pin | 20948 |
| 257 | 2 | Split pin | 7046 |
| 254 | 4 | Plug | 7076 |
| 252 | 2 | Bolt | 22680 |
| 251 | 2 | Retaining pin(square) | 26130 |
