Wear Ring 5T-7133 for CAT Motor Grader 140G Drive GP-Final with Wear Resistance Heat Resistance and Pressure Resistant Features
Price:
Negotiation
MOQ:
5 pcs
Delivery Time:
3-7 days
Brand:
GUKE
Product Description

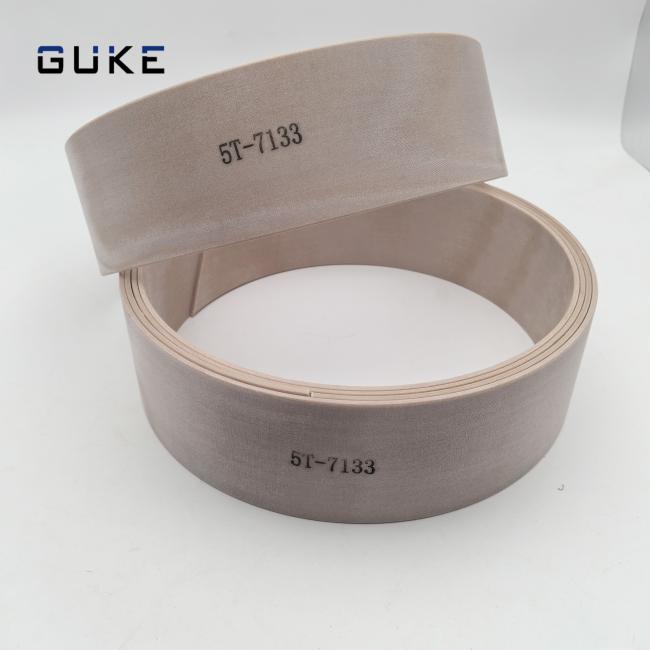

Wear Ring 5T-7133 5T7133 For CAT Motor Grader 140G Drive GP-Final
Guangzhou GUKE Construction Machinery Co., Ltd.
With a decade of industry expertise, Guangzhou GUKE Construction Machinery Co., Ltd. is a specialized supplier focused on sealing components and comprehensive Construction machinery parts. We leverage robust supply channels to provide a wide range of sealing products from leading brands such as NO K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components. By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.
With a decade of industry expertise, Guangzhou GUKE Construction Machinery Co., Ltd. is a specialized supplier focused on sealing components and comprehensive Construction machinery parts. We leverage robust supply channels to provide a wide range of sealing products from leading brands such as NO K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components. By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.
Product Specifications
Type:
Wear Ring
Material:
Phenolic resin-impregnated fabric
Part No:
5T-7133 5T7133
Size:
Standard Size
Application:
CAT Motor Grader 140G
Shipping:
Express, By Air, By Sea
Temperature:
-25°C to 110°C
Function:
Wear Ring
Availability:
In Stock
Features
- Heat Resistance
- Pressure Resistant
- Permanent Deformation Resistance

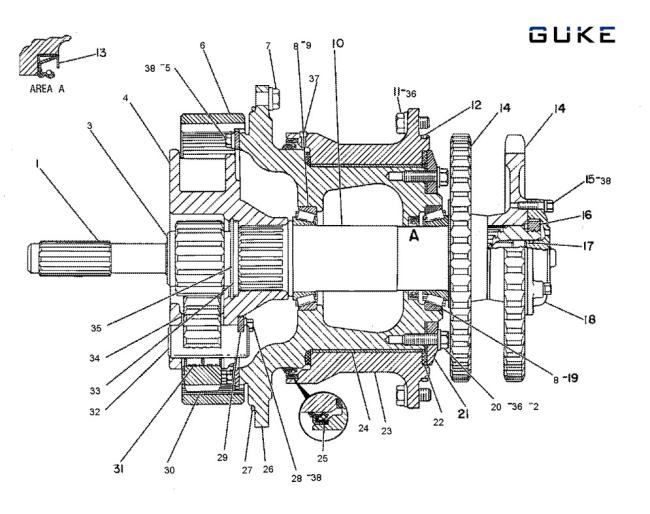

Application Parts List
| Pos. | Part No | Qty | Parts Name |
|---|---|---|---|
| 1 | 8D-3958 | 2 | SHAFT AS-DRIVE |
| 8D-3957 | 1 | WASHER-THRUST | |
| 2 | 6G-3212 | 2 | SHIM PACK (INCLUDES 10-SHIMS) |
| 3 | 8D-3877 | 2 | GEAR-SUN (28-TEETH) |
| 4 | 8D-3591 | 2 | CARRIER-PLANETARY |
| 5 | 030-8535 C | 16 | BOLT-LOCKING (3/8-16X0.875-IN) |
| 7D-0035 | 8 | PLATE | |
| 6 | 7D-7889 | 2 | GEAR-RING |
| 7 | 2J-3506 | 38 | NUT-FULL (3/4-10-THD) |
| 5P-8248 | 38 | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 8 | 1P-4693 | 4 | CUP-BEARING |
| 9 | 1P-4694 | 2 | CONE-BEARING |
| 10 | 8D-3744 | 2 | SHAFT-DRIVE |
| 11 | 5P-4253 | 36 | BOLT-LOCKING (5/8-11X1.5-IN) |
| 12 | 4D-6695 | 2 | SEAL-O-RING |
| 13 | 8D-3902 | 2 | SEAL-LIP TYPE |
| 14 | 8W-8317 | 4 | SPROCKET (20-TEETH) |
| 15 | 0S-1591 | 10 | BOLT (3/8-16X1.5-IN) |
| 16 | 8D-3540 | 2 | NUT (3-1/4X12-THD) |
| 17 | 1H-9696 | 2 | SEAL-O-RING |
| 18 | 8D-8159 | 2 | RETAINER |
| 19 | 5P-3490 | 2 | CONE-BEARING |
| 20 | 8S-9092 | 32 | BOLT (5/8-11X2.25-IN) |
| 21 | 6G-1953 | 2 | RETAINER |
| 22 | 6G-3206 | 4 | WASHER-THRUST (261.8X309X7-MM THK) |
| 23 | 5T-7125 | 2 | HOUSING |
| 24 | 5T-7133 | 4 | RING-WEAR |
| 25 | 6V-8081 | 2 | SEAL-LIP TYPE |
| 26 | 5T-7129 | 2 | HOUSING |
| 27 | 7S-4571 | 2 | SEAL-O-RING |
| 28 | 5D-0353 C | 12 | BOLT-LOCKING (3/8-16X1-IN) |
| 29 | 7D-0028 | 6 | RETAINER |
| 30 | 7D-8346 | 6 | GEAR (26-TEETH) |
| 31 | 1S-9110 | 12 | ROLLER AS |
| 32 | 8W-2308 C | 6 | SHAFT-PLANETARY |
| 33 | 8D-3885 | 2 | WASHER (50.8X107.95X6.35-MM THK) |
| 34 | 8X-8377 | 12 | WASHER (47.57X82.55X2.92-MM THK) |
| 35 | 8D-3886 | 2 | RING-RETAINING |
| 36 | 4D-3704 | 68 | WASHER-HARD (17X30X5-MM THK) |
| 37 | 9F-2247 | 2 | PLUG-PIPE |
| 38 | 5M-2894 C | 38 | WASHER-HARD (10.2X18.5X2.5-MM THK) |
