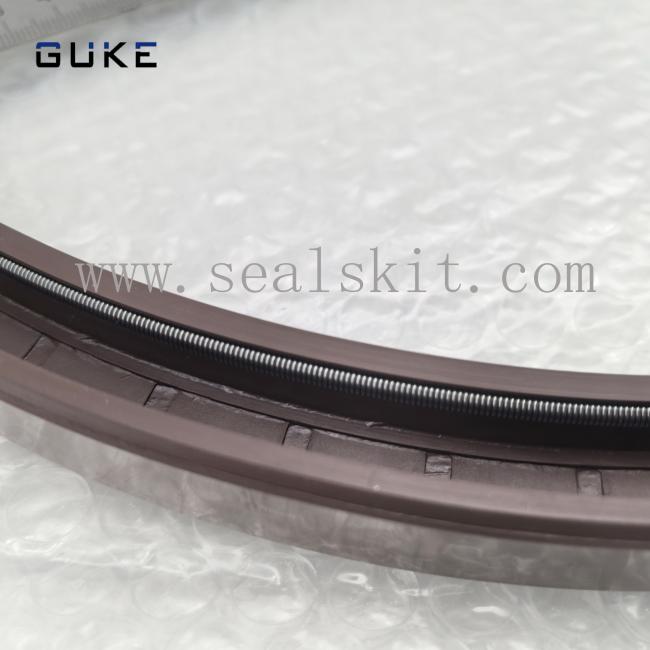

High Quality Viton Oil Seal 569-88-66580 For Komatsu Dump Truck HD465 HD605 Front Axle 5698866580 FKM

Guangzhou GUKE Construction Machinery Co., Ltd.

    With a decade of industry expertise, Guangzhou GUKE Construction Machinery Co., Ltd. is a specialized supplier focused on sealing components and comprehensive Construction machinery parts.

    We leverage robust supply channels to provide a wide range of sealing products from leading brands such as N0 K, SKF, and HAILLITE, coupled with professional technical support. Complementing this, our own 20-year experienced factory enables us to deliver cost-effective both standard and custom-made sealing components.

    By integrating multi-brand supply with in-house manufacturing, we are positioned to be your reliable and agile supply chain partner.

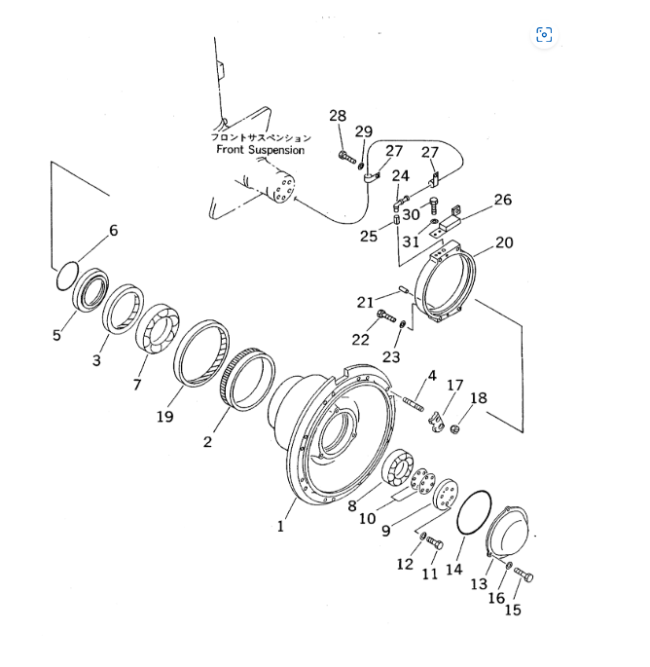

 Applycation  chart:

Applycaiton List:

No	Part No	Part Name	QTY
	569-88-66521	HUB ASS'Y	2
	569-88-66520	HUB ASS'Y	2
1	569-88-66530	• HUB	1
2	569-88-66541	• GEAR	1
	569-88-66540	• GEAR	1
3	569-30-11412	SEAL (KIT)	2
4	01144-82475	STUD	32
5	569-27-61130	RETAINER	2
6	07000-05260	O-RING (KIT)	2
7	568-22-11960	BEARING	2
8	569-27-61910	BEARING	2
9	569-30-11210	RETAINER	2
10	569-30-00010	SHIM ASS'Y	2
		• SHIM¤ 0.2MM	2
		• SHIM¤ 0.3MM	3
		• SHIM¤ 1.0MM	2
11	01010-52055	BOLT	12
12	01643-32060	WASHER	12
13	569-27-61220	COVER	2
14	07000-05260	O-RING (KIT)	2
15	01010-51235	BOLT	6
16	01643-31232	WASHER	6
17	569-22-62841	CLAMP	16
18	569-22-62870	NUT	32
19	569-88-66580	SEAL	2
20	569-88-66550	COVER	2
21	04020-00820	PIN	4
22	01010-51245	BOLT	8
23	01643-51232	WASHER	8
24	561-88-66141	SENSOR	2
25	561-88-66151	SPACER	2
26	569-88-66590	COVER	2
27	08036-01014	CLIP	4
28	01010-51016	BOLT	4
29	01643-51032	WASHER	4
30	01010-51220	BOLT	4
31	01643-51232	WASHER	4
