VOE14631781 Excavator Seal Kit Travel Motor seal kit EC210B

Price Negotiable

Price: Negotiable

MOQ: 1KITS

Delivery Time: 3-7 Days after payment

Brand: GUKE

Product Description

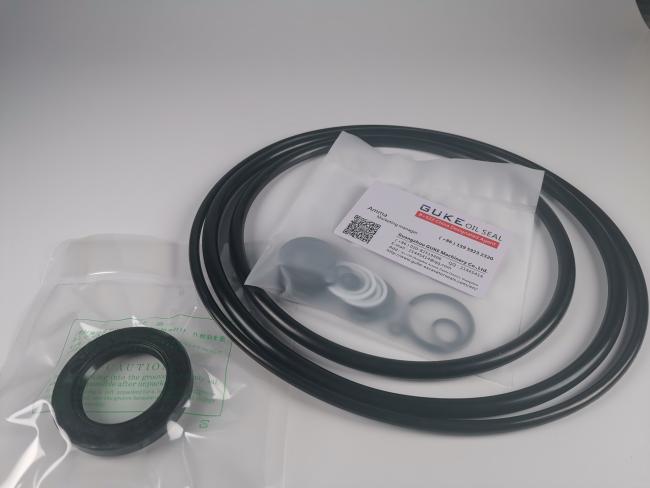

Travel Motor seal kit EC210B

Please note that the photoes that are presents here may not be related to the correct product photos ,Please contact our sales staff for correct product photos

The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

We use high quanlity raw materials from Gemany and Japen.

We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name:	Repair seal kit for Excavator Travel Motor
Condition	100% New
Material:	NBR FKM
Machine Model:	Volve Excavator Travel Motor
Size:	Standard Size or Custom Size
Appliion:	EC210B Travel Motor
Hardness:	90degree
Temparature:	-35 Degree To 200 Degree
Feature:	Oil Resistance,Heat Resisitance,Durable,Pressure Resisitant
Certifiion	ISO 9001
Raw Material:	ZEON of Japan
OEM:	Accpetable
vailablity:	In Stock
Shipping:	Express,By Air,By Sea

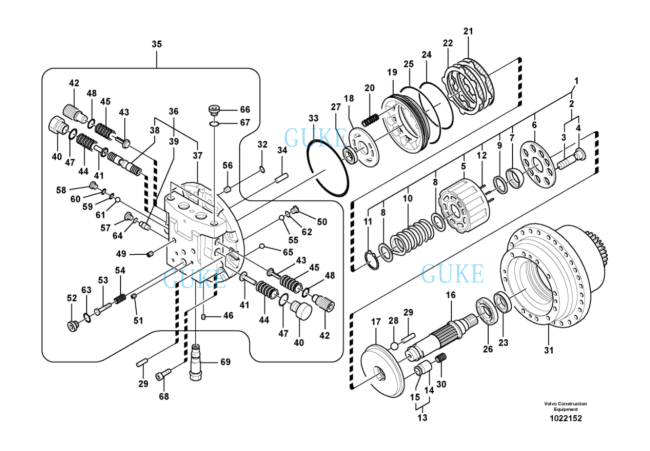

Appliion Chart:

Pos.	Part No	Qty	Parts name
	SA1143-01270	[1]	Travel motor
1	SA8230-21631	[1]	Cylinder
2	SA8230-28900	[9]	Piston
3	SA14500075	[1]	Piston
4	SA14500076	[1]	Seat
5	SA8230-28890	[1]	Block
6	SA8230-21530	[1]	Plate
7	SA8230-21540	[1]	Ball
8	SA8230-31160	[2]	Washer
9	SA8230-21560	[1]	Washer
10	SA8230-21570	[1]	Spring
11	SA14500077	[1]	Ring
12	SA14500078	[5]	Bearing
13	SA8230-15140	[1]	Piston
14	SA14500079	[1]	Piston
15	SA14500080	[1]	Seat
16	SA8230-33140	[1]	Drive shaft
17	SA8230-21520	[1]	Protecting plate
18	SA8230-21550	[1]	Protecting plate
19	SA8230-21650	[1]	Piston
20	SA8230-21660	[12]	Spring
21	SA8230-21670	[2]	Friction plate
22	SA8230-03560	[2]	Plate
23	VOE14621703	[1]	Seal
24	SA8230-21680	[1]	O-ring
25	VOE990656	[1]	O-ring
26	VOE14551534	[1]	Ball bearing
27	VOE14531426	[1]	Bearing
28	SA8230-21600	[2]	Support
29	SA8230-21610	[4]	Pin
30	SA8230-15150	[1]	Spring
31	VOE14500089	[1]	Spindle
32	VOE983495	[2]	O-ring
33	VOE960259	[1]	O-ring
34	SA8220-13340	[1]	Pin
35	VOE14500083	[1]	Flange
36		[1]	Flange
37	SA14500084	[1]	Flange
38	SA14500085	[1]	Slide
39	SA14500086	[1]	Piston
40	SA8230-02710	[2]	Plug
41	SA8230-21700	[2]	Stop
42	SA8230-03590	[2]	Plug
43	SA8230-03600	[2]	Non-return valve
44	SA8230-02760	[2]	Spring
45	SA8230-03610	[2]	Spring
46	SA8220-14930	[4]	Plug
47	VOE990607	[2]	O-ring
48	VOE983523	[2]	O-ring
49	SA8230-30410	[2]	Plug
50	VOE14573795	[2]	Plug
51	SA8220-14920	[8]	Plug
52	VOE14573793	[2]	Plug
53	SA8230-21710	[1]	Coil
54	VOE14500087	[1]	Spring
55	SA9676-38000	[2]	Ball
56	VOE14617170	[1]	Filter
57	SA8230-23140	[2]	Plug
58	SA8230-21890	[2]	Plug
59	VOE990551	[2]	O-ring
60	VOE983495	[2]	O-ring
61	VOE14500088	[2]	Ball
62	VOE983502	[2]	O-ring
63	VOE990557	[2]	O-ring
64	VOE983505	[2]	O-ring
65	SA8230-27130	[1]	Orifice
66	SA8240-03170	[12]	Bolt
67	SA8230-21640	[2]	Relief valve
100	VOE14553290	[1]	Sealing ring
