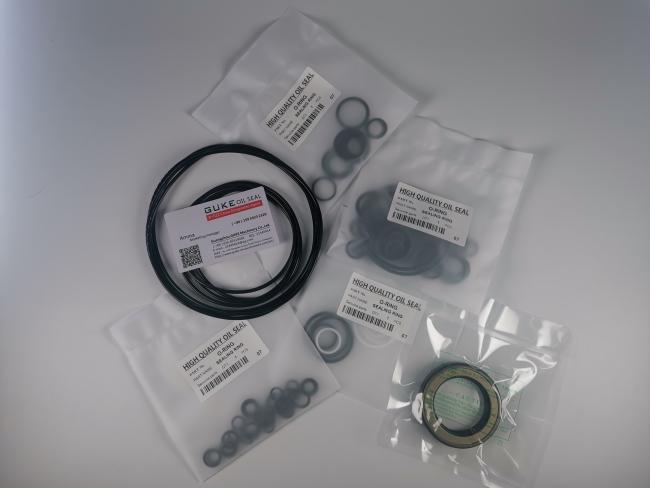

Repair Seal Kit EC210B Hydraulic Pump Seal Kit SA8148-13080
Repair Seal Kit EC210B Hydraulic Pump seal kit SA8148-13080
EC240B EC210C EC200B Hydraulic pump Sealing kit 14555298 8148-13080
EC240B EC210C EC200B
Main Control Valve Sealing kit VOE14506889 ,EC210B Prime
Swing Motor Sealing Kit VOE14552332 ,EC210B Prime
Hydraulic pump Sealing kit VOE14555298 ,EC210B Prime
Travel Motor Sealing Kit VOE14631781 ,EC210B Prime
Center Joint Sealing Kit VOE14514937 ,EC210B Prime
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Repair seal kit for Excavator Hydraulic Pump |
| Condition | 100% New |
| Material: | NBR FKM |
| Machine Model: | Excavator Hydraulic Pump |
| Size: | Standard Size or Custom Size |
| Appliion: | EC210B Hydraulic Pump |
| Hardness: | 90degree |
| Temparature: | -35 Degree To 200 Degree |
| Feature: | Oil Resistance,Heat Resisitance,Durable,Pressure Resisitant |
| Certifiion | ISO 9001 |
| Raw Material: | ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |

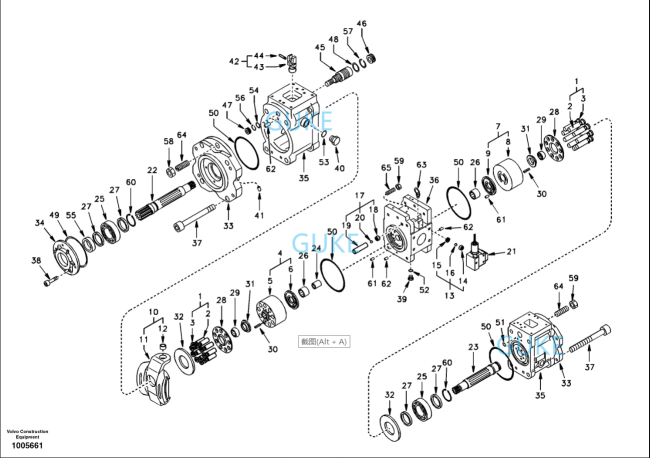

Appliion Chart:
| Pos. | Part No | Qty | Parts name |
| SA1142-00012 | [1] | Pump | |
| 1 | VOE14600771 | [2] | Piston |
| 2 | VOE14500003 | [9] | Piston |
| 3 | VOE14500002 | [9] | Seat |
| 4 | VOE14550188 | [1] | Cylinder |
| 5 | SA8230-28560 | [1] | Block |
| 6 | VOE14500001 | [1] | Plate |
| 7 | VOE14550189 | [1] | Cylinder |
| 8 | SA8230-28560 | [1] | Block |
| 9 | VOE14500000 | [1] | Plate |
| 10 | SA8230-09800 | [2] | Plate |
| 11 | SA8230-30540 | [1] | Plate |
| 12 | VOE14500012 | [1] | Bushing |
| 13 | SA7223-00450 | [2] | Non-return valve |
| 14 | SA7223-00500 | [1] | Seat |
| 15 | SA7223-00450 | [1] | Non-return valve |
| 16 | SA9676-73200 | [1] | Ball |
| 17 | SA7223-00460 | [2] | Non-return valve |
| 18 | SA7223-00500 | [1] | Seat |
| 19 | SA7223-00460 | [1] | Non-return valve |
| 20 | SA9676-73200 | [1] | Ball |
| 21 | SA8230-09020 | [1] | Valve |
| 22 | SA8230-09100 | [1] | Main shaft |
| 23 | SA8230-09070 | [1] | Shaft |
| 24 | SA8230-09660 | [1] | Coupling |
| 25 | VOE14535425 | [2] | Bearing |
| 26 | SA8230-26700 | [2] | Needle bearing |
| 27 | SA8230-14530 | [4] | Spacer |
| 28 | SA8230-09370 | [2] | Plate |
| 29 | SA8230-09680 | [2] | Bushing |
| 30 | SA8230-09710 | [18] | Spring |
| 31 | SA8230-09670 | [2] | Spacer |
| 32 | SA8230-21920 | [2] | Plate |
| 33 | SA8230-08940 | [2] | Support |
| 34 | SA8230-09350 | [1] | Flange connection |
| 35 | SA8230-08930 | [1] | Body |
| 36 | SA8230-08980 | [1] | Valve block |
| 37 | SA8230-09690 | [8] | Hex. socket screw |
| 38 | VOE13967630 | [4] | Allen Hd Screw |
| 39 | VOE14883837 | [3] | Plug |
| 40 | SA9415-11051 | [4] | Plug |
| 41 | VOE14560637 | [21] | Plug |
| 42 | SA8230-09790 | [2] | Pin |
| 43 | SA8230-09320 | [1] | Pin |
| 44 | SA7223-00570 | [1] | Pin |
| 45 | SA8230-09250 | [2] | Piston |
| 46 | SA8230-09640 | [2] | Plug |
| 47 | SA8230-09650 | [2] | Plate |
| 48 | VOE990583 | [2] | O-ring |
| 49 | VOE990595 | [1] | O-ring |
| 50 | VOE990605 | [4] | O-ring |
| 51 | VOE983495 | [16] | O-ring |
| 52 | VOE983502 | [8] | O-ring |
| 53 | VOE983524 | [4] | O-ring |
| 54 | VOE990557 | [2] | O-ring |
| 55 | SA8230-26900 | [1] | Seal |
| 56 | VOE14625246 | [2] | Ring |
| 57 | SA9566-20350 | [2] | Back-up ring |
| 58 | SA8230-25620 | [2] | Nut |
| 59 | SA9111-12000 | [2] | Nut |
| 60 | SA8230-25980 | [2] | Ring |
| 61 | SA8230-26430 | [2] | Plate |
| 62 | SA7223-00660 | [4] | Spring pin |
| 63 | VOE14623509 | [2] | Eye bolt |
| 64 | SA8230-26780 | [2] | Bolt |
| 65 | SA8230-09700 | [2] | Bolt |
| 100 | SA8148-13080 | [1] | Sealing kit |
