Hitachi ZX200 Excavator Cylinder Seal Kits HIT 4448400 4654423

Price Negotiable

Price: Negasiate

MOQ: 1 kits

Delivery Time: 3-7days after payment

Brand: GUKE

Product Description

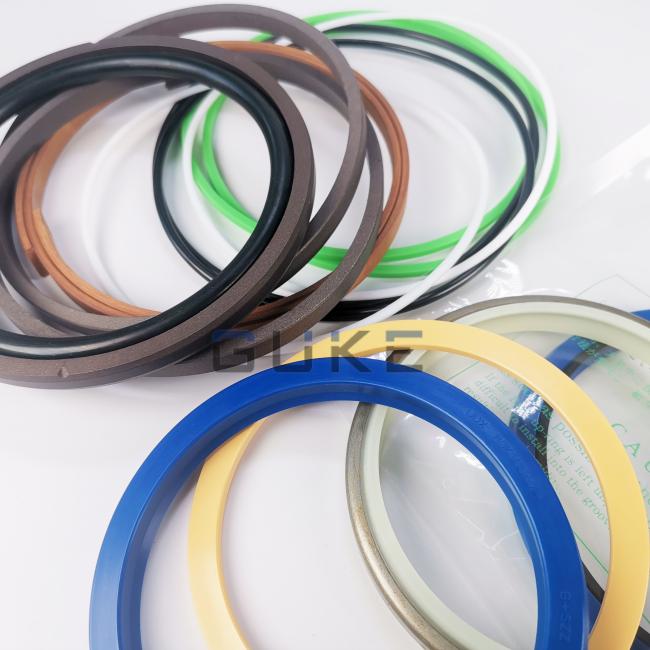

Hitachi ZX200 Bucket Cylinder Repair Seal Kit HIT 4448400 4654423

The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.

We use high quanlity raw materials from Gemany and Japen.

We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .

Product Overview
Name:	ZX 200 Bucket Cylinder Repair Seal Kit
Condition	100% New
Material:	PU + PTFE + NY + NBR + IRON + Phenolic
Machine Model:	Hitachi Excavator
Part Number:	HIT 4448400 4654423
Size:	Standard Size Custom Size
Appliion:	ZX 200 Bucket Cylinder Repair Seal Kit
Hardness:	92degree
Temparature:	-30 Degree To 120 Degree
Feature:	Oil Resistance,Heat Resisitance,Pressure resisitant
Certifiion:	ISO 9001
Raw Material:	HUNTSMAN of German + ZEON of Japan
OEM:	Accpetable
vailablity:	In Stock
Shipping:	Express,By Air,By Sea

Appliion Chart

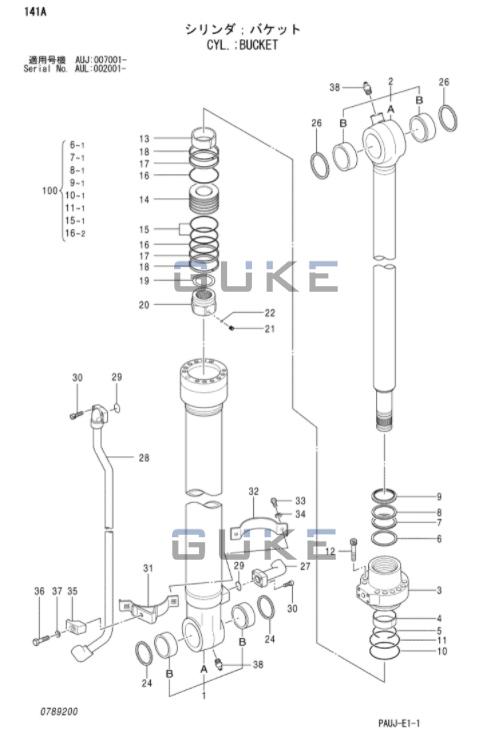

Part List

Pos.	Part No	Qty	Parts name
	4385637	[1]	CYL.;BUCKET
1	789201	[1]	TUBE;CYL.ASS'Y
1A.	789202	[1]	TUBE;CYL.
1B.	4352400	[2]	BUSHING;PIN
2	789203	[1]	ROD;PISTONASS'Y
2A.	789204	[1]	ROD;PISTON
2B.	4352398	[2]	BUSHING;PIN
3	789205	[1]	HEAD;CYL.
4	309304	[1]	BUSHING
5	208604	[1]	RING;RETAINING
6	789206	[1]	RING
6	789213	[1]	RING
7	208605	[1]	PACKING;U-RING
7	789214	[1]	PACKING;U-RING
8	208606	[1]	RING;BACK-UP
9	667006	[1]	RING;WIPER
10	A811110	[1]	O-RING
11	310904	[1]	RING;BACK-UP
12	409705	[12]	BOLT;SOCKET
13	789207	[1]	BRG.;CUSHION
14	686404	[1]	PISTON
15	225614	[1]	RING;SEAL
16	496605	[2]	RING;BACK-UP
17	686405	[2]	RING;SLIDE
17	789211	[2]	RING;SLIDE
18	310908	[2]	RING
19	309013	[1]	SHIM
20	788907	[1]	NUT
21	309011	[1]	SCREW;SET
22	111707	[1]	BALL;STEEL
24	408810	[2]	RING;WIPER
26	4067902	[2]	SEAL;DUST
27	8086114	[1]	PIPE
28	789208	[1]	PIPE
28	789212	[1]	PIPE
29	4506430	[2]	O-RING
30	158855	[8]	BOLT;SOCKET
31-37.	789209	[1]	KIT;BAND
31	789210	[1]	BAND
32	327704	[1]	BAND
33	408815	[2]	BOLT
34	325913	[2]	WASHER
35	309021	[1]	HOLDER
36	667013	[1]	BOLT
37	208516	[1]	WASHER;SPRING
38	J75481	[2]	FITTING;GREASE
100	4448400	[1]	KIT;SEAL
100	4654423	[1]	KIT;SEAL
