Frukawa Hydraulic Breaker Seal Kit HB 10G Oil Resistance

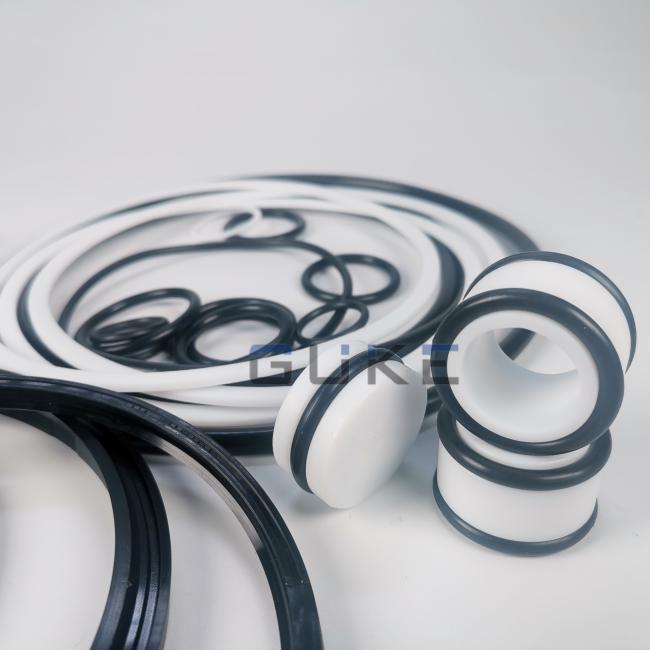

Frukawa Hydraulic Breaker Repair Seal Kit HB 10G
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | Furukawa Hydraulic Breaker HB10G Repairl Seal Kit |
| Condition | 100% New |
| Material: | PU + PTFE + NY + NBR |
| Machine Model: | Furukawa Hammer HB10G Repairl Seal Kit |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -30 Degree To 120 Degree |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German + ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |
Appliion Chart

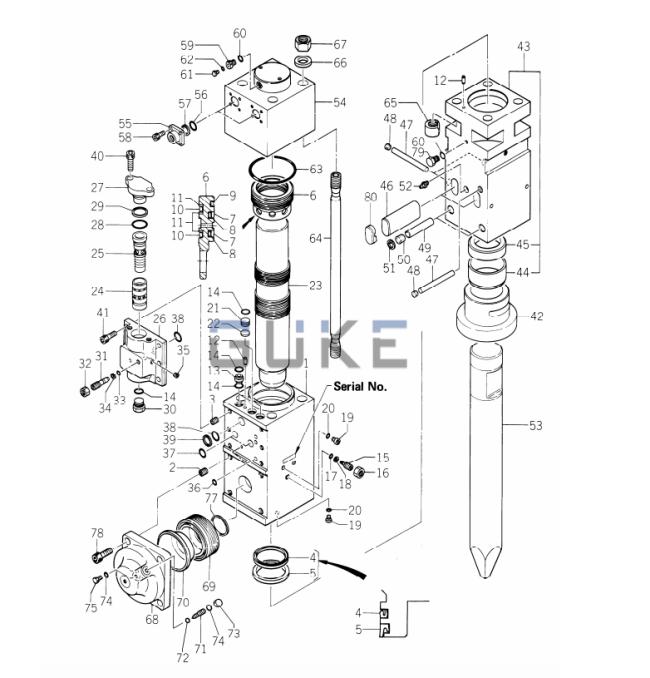

Part List
| ITEM | P/N | QTY. | DESCRIPTION | ITEM | P/N | QTY. | DESCRIPTION |
| 1 | 10863 | 1 | CYLINDER | 43 | 10866 | 1 | FRONT HEAD |
| 2 | 11775 | 4 | M24 HELI-SERT INSERT | 44 | 10930 | 1 | THRUST BUSHING |
| 3 | 11776 | 6 | M20 HELI-SERT INSERT | 45 | 10846 | 1 | THRUST RING |
| 4 | 10826 | 1* | 108 U-PACKING | 46 | 10932 | 2 | ROD PIN |
| 5 | 10827 | 1* | 108 DUST SEAL | 47 | 10867 | 3 | STOP PIN |
| 6 | 10828 | 1 | SEAL RETAINER | 48 | 10722 | 3* | RUBBER PLUG |
| 7 | 10829 | 2* | 105 SLIDE PACKING | 49 | 10719 | 2 | FRONT HEAD PIN |
| 8 | 10830 | 2* | O-RING | 50 | 10721 | 2 | RUBBER PLUG |
| 9 | 10831 | 1* | 105 SEAL RING | 51 | 10725 | 2 | SNAP RING |
| 10 | 10910 | 2* | O-RING | 52 | 10118 | 1 | 1/4 GREASE NIPPLE |
| 11 | 10911 | 3* | BACK-UP RING | 53 | 10935 | 1 | BLUNT TIP |
| 12 | 10206 | 2 | KNOCK PIN | 53 | 10936 | 1 | MOIL POINT |
| 13 | 10912 | 2* | BUSHING | 53 | 10937 | 1 | CHISEL BIT |
| 14 | 11511 | 6* | O-RING | 54 | 10848 | 1 | BACKHEAD |
| 15 | 10220 | 1 | STROKE ADJUSTER | 55 | 10939 | 2 | FLANGE ADAPTER |
| 16 | 10864 | 1 | 22 NUT | 56 | 10940 | 2* | O-RING |
| 17 | 1613 | 1* | O-RING | 57 | 10948 | 2* | BACKUP RING |
| 18 | 10231 | 1* | BACK-UP RING | 58 | 10428 | 8 | SOCKET BOLT, FINE |
| 19 | 11463 | 4 | 1/4 PLUG | 59 | 11241 | 1 | CHARGE VALVE |
| 20 | 11764 | 4* | O-RING | 60 | 10407 | 2* | O-RING |
| 21 | 12035 | 1* | PLUG | 61 | 11835 | 1 | PLUG |
| 22 | 12036 | 1* | COVER PLATE | 62 | 11246 | 1* | O-RING |
| 23 | 10835 | 1 | PISTON | 63 | 10868 | 1* | O-RING |
| 24 | 10836 | 1 | VALVE | 64 | 10849 | 4 | THROUGH BOLT |
| 25 | 10837 | 1 | VALVE PLUG | 65 | 10950 | 4 | NUT |
| 26 | 10838 | 1 | VALVE HOUSING | 66 | 10850 | 4 | WASHER |
| 27 | 10839 | 1 | VALVE HOUSING COVER | 67 | 10952 | 4 | HEXAGON NUT |
| 28 | 10112 | 1* | O-RING | 68 | 10953 | 1 | ACCUMULATOR COVER |
| 29 | 10840 | 1* | BACK-UP RING | 69 | 10854 | 1 | ACCUMULATOR BODY |
| 30 | 11219 | 1 | 3/4 PLUG | 70 | 10955 | 1 | DIAPHRAGM |
| 31 | 10841 | 1 | VALVE ADJUSTER | 71 | 11758 | 1 | VALVE |
| 32 | 11245 | 1 | JAM NUT | 72 | 11762 | 1* | O-RING |
| 33 | 11767 | 1* | O-RING | 73 | 11759 | 1 | CAP |
| 34 | 11243 | 1* | BACK-UP RING | 74 | 11761 | 2* | O-RING |
| 35 | 10235 | 1 | 1/4 HOLLOW PLUG | 75 | 11760 | 1 | PLUG |
| 36 | 479 | 2* | O-RING | 77 | 11872 | 1* | 80 FACE SEAL |
| 37 | 1123 | 2* | O-RING | 78 | 11955 | 4 | 24 SOCKET BOLT |
| 38 | 10734 | 2* | O-RING | 79 | 11745 | 1 | VENTILATOR PLUG |
| 39 | 10843 | 1* | BACK-UP RING | 80 | 10869 | 4 | DUST PLUG |
| 40 | 10844 | 2 | SOCKET BOLT, FINE | 10981 | 2 | HOSE WHIP ASSEMBLY | |
| 41 | 11721 | 6 | SOCKET BOLT | 10860 | 1 | SEAL KIT | |
| 42 | 10865 | 1 | FRONT COVER | 10861 | 1 | SERVICE TOOL |
Why Choose Us?
- We are manufacturers and product direct sales.
- Excellent and reliable production equipment and inspection equipment.
- Many years of industry practical experience.
- Excellent product research and development team.
- Professional production technology.
- High quality raw materials from Germany and Japan.
FAQ
1. What is your brand ? what brand can you provide?
Our brand is GUKE , We can also provide you . SKF. YCC. Parker. Hollita. Pet and so on brand products . We can desigh logo as your required ,and the MOQ is requird.
- Do you have factory and warehouse ? Can we vistit?
Yes,we have our owned factory and warehouse loed in guangzhou .you are welcome to vistit our factory and warehouse .
- How long is the delivery time?
We send out products after full payment received.
Ex-stock products: 3-7 days
Custosized products :15-30 days
- Do you provide customized packing?
Yes,we can pack your products into your customized packing(you need to pay a little extra cost),Logo authorization is required.
- Can you provide customized products.
Yes, we can customized all the products , you need to provide us size and drawing paper and all details ,and the MOQ is requird.
