JCB HM360 HM360Q BC230 Repair Seal Kit 983/10322 98310322
Price:
Negasiate
MOQ:
1 kits
Delivery Time:
3-7days after payment
Brand:
GUKE
Product Description

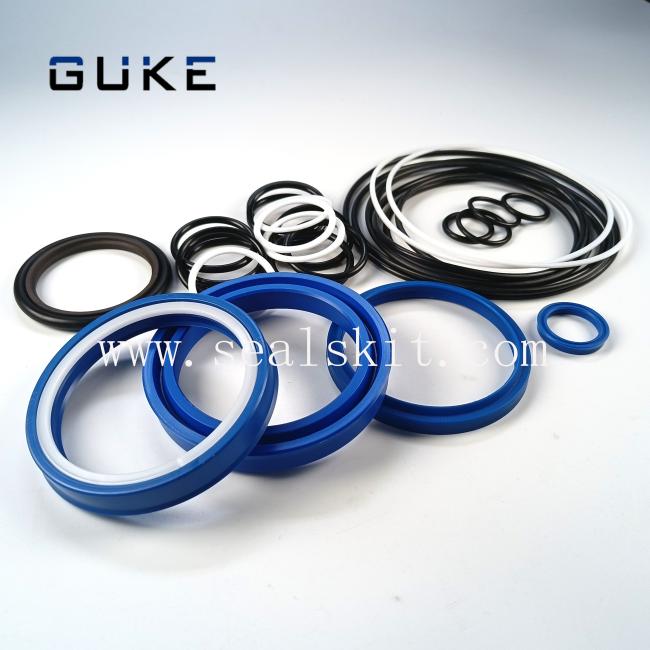

JCB Hammermaster HM360 HM360Q BC230 Repair Seal Kit 983/10322 98310322
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
| Product Overview | |
| Name: | JCB HM360 Hydraulic Hammermaster Repari Seal Kit |
| Part No: | 983/10322 98310322 |
| Condition | 100% New |
| Material: | PU + PTFE + NY + NBR |
| Machine Model: | JCB Hammermaster HM360 |
| Size: | Standard Size Custom Size |
| Hardness: | 92degree |
| Temparature: | -30 Degree To 120 Degree |
| Feature: | Oil Resistance,Heat Resisitance,Pressure resisitant |
| Certifiion: | ISO 9001 |
| Raw Material: | HUNTSMAN of German + ZEON of Japan |
| OEM: | Accpetable |
| vailablity: | In Stock |
| Shipping: | Express,By Air,By Sea |
Appliion Chart:

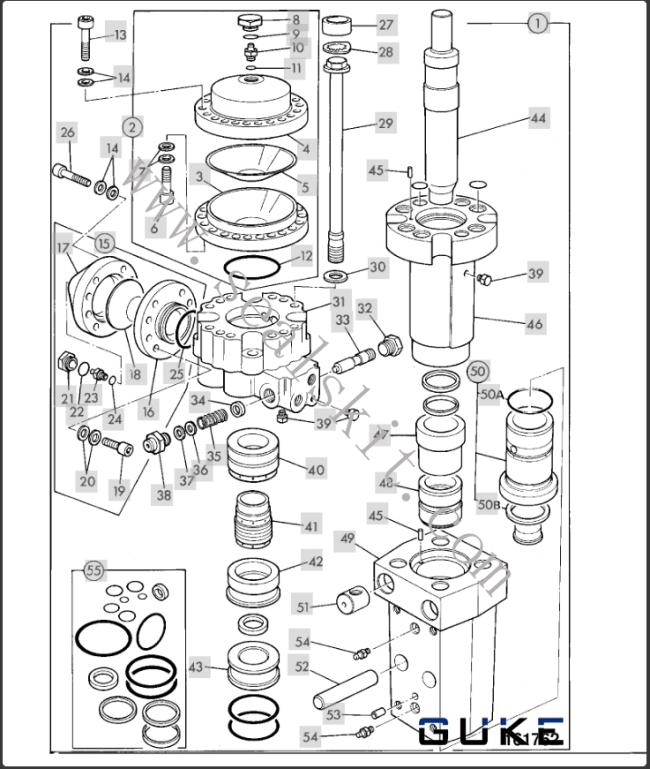

Part List:
| Pos | Number | Name | Quantity |
| 1 | 980/88869 | Breaker HM360 powercel ABI | 1 |
| 10 | 903/03210 | Plug Filling | 1 |
| 11 | 903/03211 | Seal | 1 |
| 12 | 903/03233 | Seal | 1 |
| 13 | 1391/3719 | Capscrew M16x90 Grade 12.9 | 12 |
| 14 | 903/03249 | Washer Lock | 32 |
| 15 | 903/04613 | Accumulato rassembly High pressure | 1 |
| 16 | 903/04614 | Base accumulator | 1 |
| 17 | 903/04615 | Cover accumulator | 1 |
| 18 | 903/04616 | Diaphragm | 1 |
| 19 | 1391/3714 | Capscrew | 4 |
| 2 | 903/04607 | Accumulator assembly Low pressure | 1 |
| 20 | 903/03249 | Washer Lock | 8 |
| 21 | 903/04611 | Plug protective | 1 |
| 22 | 903/04612 | ORing | 1 |
| 23 | 903/03210 | Plug Filling | 1 |
| 24 | 903/03211 | Seal | 1 |
| 25 | 903/04617 | ORing | 1 |
| 26 | 1391/3716 | Screw Hex.Socket | 4 |
| 27 | 903/04618 | Ring rubber | 4 |
| 28 | 903/04619 | Plate locking | 4 |
| 29 | 903/04620 | RodTie | 4 |
| 3 | 903/04608 | Base accumulator | 1 |
| 30 | 903/04621 | Washer | 4 |
| 31 | 903/04622 | Body valve | 1 |
| 32 | 903/03216 | Plug Flange | 1 |
| 33 | 903/04652 | Spool | 1 |
| 34 | 903/04624 | Seal | 1 |
| 35 | 903/04625 | Spring | 1 |
| 36 | 903/04626 | Shim 1mm | 1 |
| 37 | 903/04627 | Shim 0.5mm | 1 |
| 38 | 903/04628 | Plug spring retainer | 1 |
| 39 | 903/03216 | Plug Flange | 3 |
| 4 | 903/04609 | Cover accumulator | 1 |
| 40 | 983/10319 | Ring assembly | 1 |
| 41 | 983/10318 | Distributor | 1 |
| 42 | 903/04631 | Ring slide | 1 |
| 43 | 903/04632 | Ring steering | 1 |
| 44 | 983/10313 | Piston | 1 |
| 45 | 903/03239 | Pindowel | 1 |
| 46 | 983/10312 | Cylinder | 1 |
| 47 | 983/10316 | Ringt hrust | 1 |
| 48 | 903/04636 | Bush upper tool | 1 |
| 49 | 983/10314 | Head front | 1 |
| 5 | 903/04610 | Diaphragm | 1 |
| 50 | 983/10315 | Bush lower tool | 1 |
| 50A | 903/03212 | ORing | 1 |
| 50B | 904/20141 | Seal breaker tool holder | 1 |
| 51 | 903/04640 | Nut tie rod | 4 |
| 52 | 983/10317 | Pin tool retaining | 1 |
| 53 | 903/04642 | Pin locking 40x21mm | 2 |
| 54 | 903/04643 | Nip pleg rease | 2 |
| 55 | 983/10322 | Kit-seal HM360 BC230 | 1 |
| 6 | 1391/3716 | Screw Hex.Socket | 8 |
| 7 | 903/03249 | Washer Lock | 16 |
| 8 | 903/04611 | Plug protective | 1 |
| 9 | 903/04612 | ORing | 1 |
