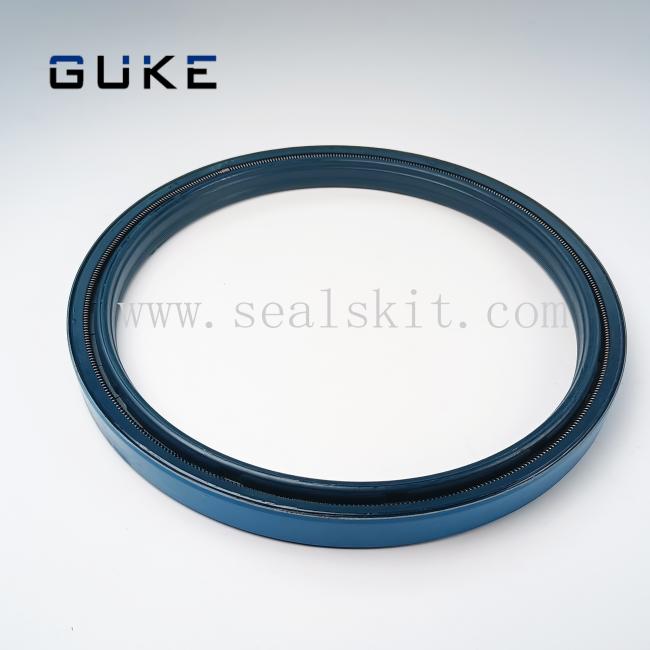

Truck A30D DEMAISI Stefa 1HDD Cassette Oil Seal 178*207.7*16.5 178x207.7x16.5 11103124
Truck A30D DEMAISI Stefa 1HDD Cassette Oil Seal 178*207.7*16.5,178x207.7x16.5 Part No:11103124
The product design of GUKE oil seal is excellent, the production process is exquisite, the product performance is good, the precision is high, combined with the strict inspection process, has been recognized by a large number of customers in the market.
We use high quanlity raw materials from Gemany and Japen.
We also sell other brand of seals such as ,Parker,SKF,Hallite,PET ,YCC,NAK and so on .
Product introduction
The STEFA System is a completely enclosed seal providing the functions of oil seal, wear sleeve and dust protection in one unit.It has been developed to meet the ever increasing requirements of long service life, high functional reliability, environmental safety and easy installation.STEFA System 500 / 3000 / 5000 Cassette Seals are used in heavy duty vehicle axles, hubs and industrial gearboxes.
Technical details
| Ø Range | Static Pressure | Temp Range | Velocity |
| 90-320mm | 0.05 MPa | -30°C +200°C | 15 m/s |
| 3.5 in -12.5 in | 7 psi | -20°F +390°F | 50 ft/s |

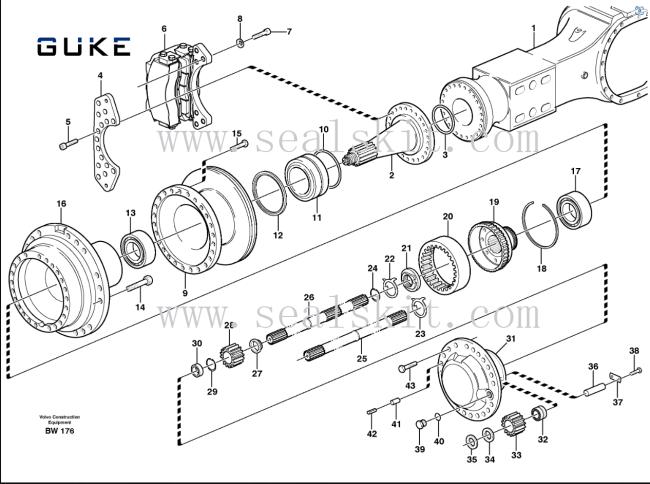

Appliion:
| Pos. | PartNo | Qty | Partsname |
| 1 | VOE23909 | 1 | PlanetaryAxle |
| VOE4870181 | 2 | Spindle | |
| 3 | VOE980827 | 2 | O-ring |
| 4 | VOE4870321 | 4 | Brakeanchorage |
| 5 | VOE4717661 | 36 | Hex.socketscrew |
| 6 | VOE11103095 | 4 | Brake |
| 7 | VOE4717660 | 24 | Screw |
| 8 | VOE941914 | 24 | Springwasher |
| 9 | VOE17232908 | 2 | Brakedisc |
| 10 | VOE13960248 | 2 | O-ring |
| 11 | VOE11103222 | 2 | Spacerring |
| VOE11103222 | 2 | Spacerring | |
| VOE15198512 | 2 | Spacerring | |
| 12 | VOE11103124 | 2 | Sealingring |
| VOE11103124 | 2 | Sealingring | |
| 13 | VOE17488188 | 2 | Bearing |
| 14 | VOE15123158 | 24 | Wheelstud |
| 15 | VOE967691 | 24 | Hex.socketscrew |
| 16 | VOE11034715 | 2 | Hub |
| VOE17232928 | 2 | Hub | |
| 17 | VOE183749 | 2 | Rollerbearing |
| 18 | VOE4717022 | 4 | Snapring |
| 19 | VOE4717383 | 2 | Gearringholder |
| 20 | VOE17246170 | 2 | Gearring |
| 21 | VOE11102364 | 2 | Nut |
| 22 | VOE4870108 | 2 | Lockring |
| 23 | VOE4870109 | 2 | Lockring |
| 24 | VOE945506 | 2 | Snapring |
| 25 | VOE11103086 | 1 | Driveshaft |
| 26 | VOE11103085 | 1 | Driveshaft |
| 27 | VOE11102909 | 2 | Thrustwasher |
| 28 | VOE11102298 | 2 | Sungear |
| 29 | VOE945499 | 2 | Snapring |
| 30 | VOE11102910 | 2 | Wearring |
| 31 | VOE11102677 | 2 | Planetcarrier |
| VOE11103250 | 2 | Planetcarrier | |
| VOE11035031 | 2 | O-ring | |
| 32 | VOE4880969 | 6 | Rollerbearing |
| VOE11034200 | 12 | Washer | |
| 33 | VOE11102297 | 6 | Planetgear |
| 34 | VOE4870486 | 12 | Thrustwasher |
| 35 | VOE11034147 | 12 | Thrustwasher |
| 36 | VOE11034889 | 6 | PlanetaryGearShaft |
| 37 | VOE4870445 | 6 | Strikerplate |
| 38 | VOE4870448 | 12 | Screw |
| 39 | VOE11034156 | 4 | Plug |
| VOE11034156 | 2 | Plug | |
| 40 | VOE958228 | 4 | O-ring |
| VOE958228 | 2 | O-ring | |
| 41 | VOE952031 | 8 | Springpin |
| 42 | VOE951990 | 8 | Springpin |
| 43 | VOE13977564 | 48 | Hexagonscrew |
| VOE980238 | 56 | Hex.socketscrew |
Our Advantages of Hydraulic Cylinder Seal Kits
1, Focus on the development and manufacture of Hydraulic Cylinder Seal Kits more than 10 years.
2, A great number standard parts in stock.
3, Customized seal service.
4, CNC Machining Seals without mould cost ,fast dispatch.
5, All of seals the inner diameter from 0.2mm to 3500mm can be produced.
6, Seals solutions and technical support.
7, 24 hours online service.
