China Wall Mounted W294.4mm Energy Meter Enclosure UV Resistant Household Electrical Devices for sale

Wall Mounted W294.4mm Energy Meter Enclosure UV Resistant Household Electrical Devices

Price Negotiable
Price: Negotiable
MOQ: 100
Delivery Time: 30 work days
Brand: Stron
Product Description

Three Phase Four Wire Energy Meter Box for BS type IP54 Protection Plastic Enclosure



Me31 three-phase instrument box is specially designed for anti-interference and protection of instruments. 1 (one) type BS instrument can be installed at the bottom connection. The shell has two independent transparent windows, a non transparent top cover and a non transparent base. The shell material is polycarbonate with UV resistance and V0 frame rate resistance. Tower installation or wall installation or locking and key protection shall be carried out according to the project requirements. Alarm sensor for enclosure opening is reserved function.



Specification


Items Parameters

Dimension                                L519.1mm*W294.4mm*H150.5mm
Material of top cover PC non-transparent
Material of turnover window PC transparent
Material of base PC+10%GF non-transparent
Protection Degree IP54
Anti-UV Yes
Flame resistance degree V0
Installation provision for MCB Yes
Anti-tamper protection Seal and padlock for cover, and seal for windows
Temperature -30℃ to 60℃
Heat dissipation Ventilation hole for cooling
Method of production Injection
Mounting methods                   Pole mounted by stainless steel strap or wall mounted by screw

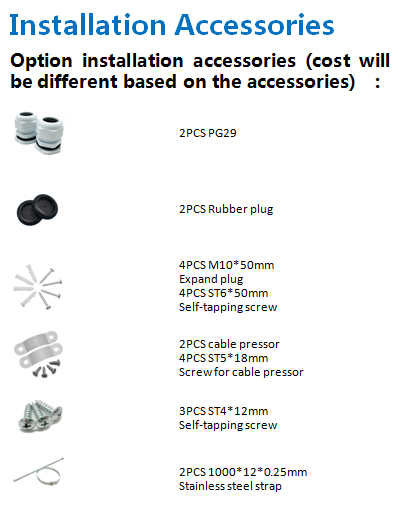

Installation Methods
