IP65 ARM926E Handheld Water Meter Reading Devices COSEM Standard
Handheld Meter Reading Unit Mass storage memory RF-LORA downlink to smart meters
The ST-HHU18 Handheld Meter Reading Unit is an intelligent device which is used for Remote Water Reading of Smart Water Meter. ST-HHU18 adopts advanced technology which has excellent quality, reliable performance and available in various models for your specific business applications.
Main Features
1. Adopt Microsoft Windows CE operating system
2. DLMS/COSEM standard compliant
3. RF-LORA downlink to smart meters
4. Upload data to head-end AMR/AMI system via USB port
5. Mass storage memory
6. Data collection include total consumption/ historical daily & monthly consumption
7. Meter parameter/ status/ Real-time data reading
Handheld Meter Reading Unit Parameters
| OS |
Microsoft Windows CE
|
CPU | ARM926E |
|
Memory
|
128M RAM+ 256M FLASH
|
Display
|
2.8’’ LCD
320x240 pixel touchpad
|
|
Network
|
WIFI / Bluetooth / LORA
|
Built-in Infrared Port
|
Far distance optical port
|
|
Physical Interface
|
USB
|
Camera
|
1.3 million pixel
|
|
Data Backup
|
TF extend
|
Battery
|
4400mAH chargeable
Lithium-ion battery
|
|
Protection Class
|
IP65
|
Operation Temperature
|
-20℃-+50℃
|
|
Dimension
|
150x71x35mm
|
Weight
|
0.4KG
|

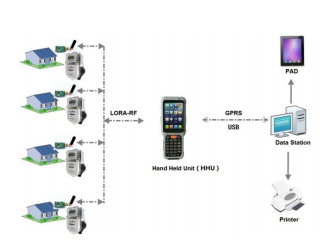

Application scene
Certificate
