Geotextile Lined Earth Military Barrier Mil 7 Army Wall Defensive
Desert Color Geotextile-Lined Earth MIL 7 Army Wall Defensive Barrier
1>Defensive barrier introduce:
Flood barrier fence thanks to its unique design can be built in high speed so it is the first choice in emergency accident. In the city, when the rainy season comes, torrential rain will cause the water level to rise rapidly. As lightweight design, two people can install it easily. The units design make building a defensive wall against flood quickly possible. Then protect life and property from harm. When water level falls, we can recover the units. This kind of design can be used repeatedly. Long service life make the cost very low. So flood barrier fences are the best choice not only for government but also for community and home.
2>Defensive barrier introduce:
Hesco barriers are also known as Military Sand Wall, Defensive Barrier, Hesco Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in Military fortifications and flood control.
| name | Military barrier | main Material | Geotextile and welded gabion |
| Hole Shape | Square Hole | Geotextile Color | Green or beige |
| main Material | Geotextile and welded gabion | Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan | Packing | Pallet |
| Wire Diameter | 4.0 4.5 5.0mm | Feature | Easily Assembled |
| Application | Military Sand Wall, Flood barrier | Usage | Protection |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
4> Defensive barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
5>Defensive barrier introduce:

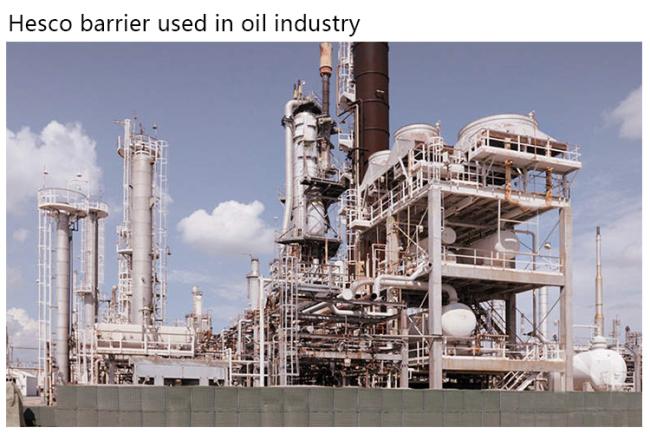

Blast barrier wall are widely used in oil, gas and other dangerous industry. After blast barrier wall surround the dangerous area, it will make other area safe. When a fire or explosion occurs, the barrier prevents it from spreading to other areas. So that the disaster can be controlled in the minimum area. Thus providing time for rescue. So for dangerous goods industry, blast barrier cells are necessity.
6>Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
7>Applications:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
