Anti Corrosion Defensive Barriers Pet Bags Desert Color Wire Mesh Mil 7
Anti - Corrosion PET Bags Desert Color Wire Mesh Mil 7 Defensive Barrier
1>Defensive barrier introduce:
Hesco Barrier , which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
2>Defensive barrier introduce:

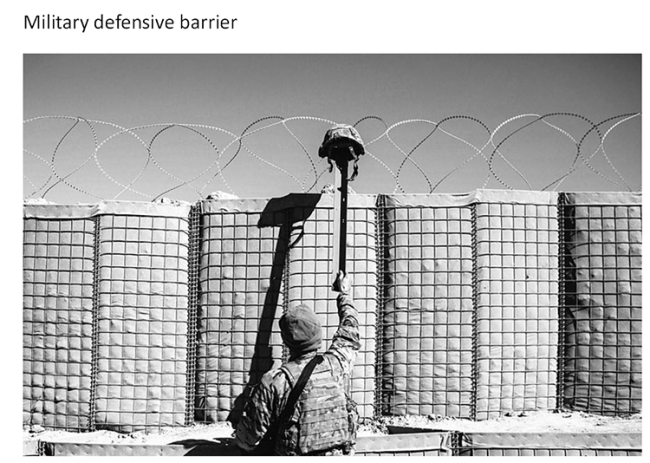

Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military exercise.
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>.Features:
1.easy to handle and install,
2.High tensile and anti-impact capability
3.long life time

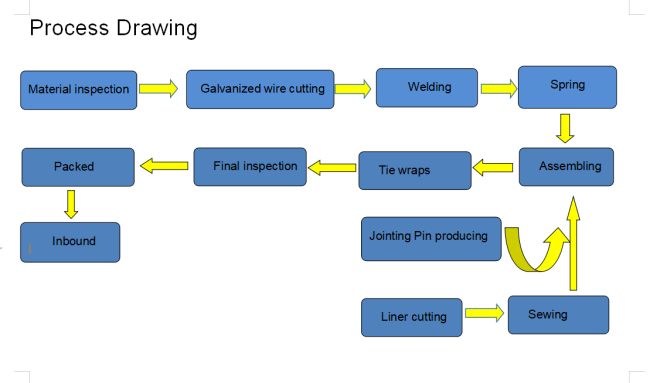

5>Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
