Welded Steel Wire Mesh Desert Color Military Barrier Geotextile Lined ECO Friendly
Geotextile-Lined ECO-Friendly Welded Steel Wire Mesh Desert Color Military Barrier
1>Military barrier introduce:

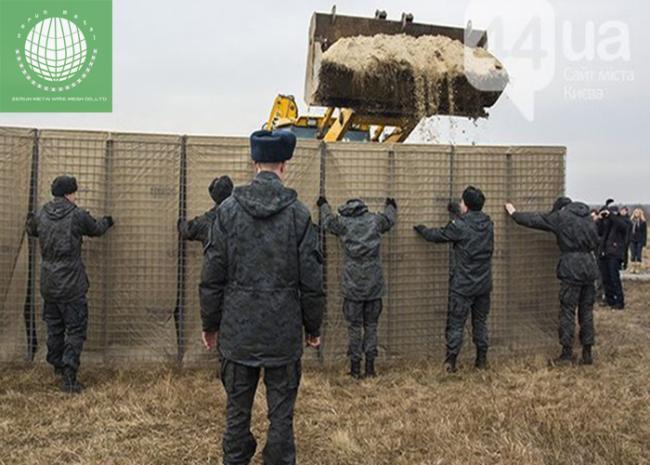

Hesco barriers are also known as Military Sand Wall, Defensive Barrier, Hesco Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in Military fortifications and flood control.
2>Military barrier introduce:

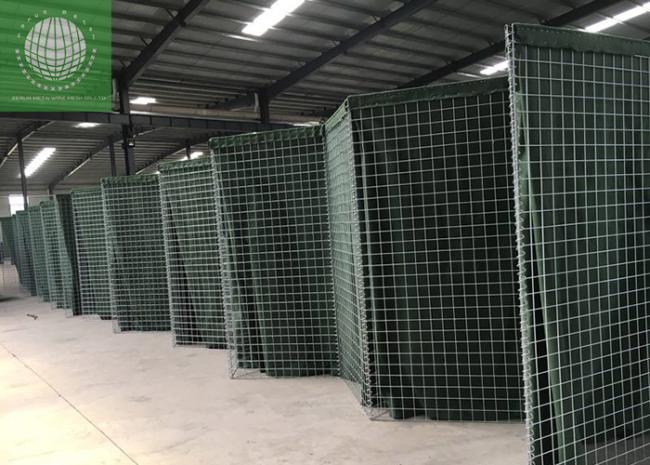

Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military
exercise.
3> Military barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
4>FAQ
Q: Are you manufacturer?
A: Yes.We have been in manufacturing this product for 15 years
Q: Where is your factory?
A: No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q: What’s factors in quotation?
A: Wire diameter,mesh aperture,length,width,height,quantity
Q: How many days the samples will be finished?And how about the mass production?
A: Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q: How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q: Do you have technique support on installation?
A: Yes ,we have professional engineer for installation guide service.
5>Production process:
1. weld mesh panel
2. put panels together weld gabion
3. book geotextile in welded gabion
4. fold cells into one unit
5. pack on pallet
