Spring Connected MIL 8 Military Barrier Sand Defense Wall Waterproof
Spring Connected Waterproof MIL 8 Military Barrier Sand Defense Wall
1> Defensive barrier introduce:

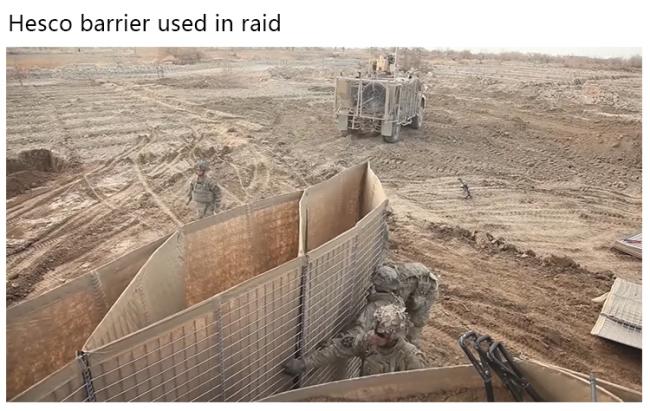

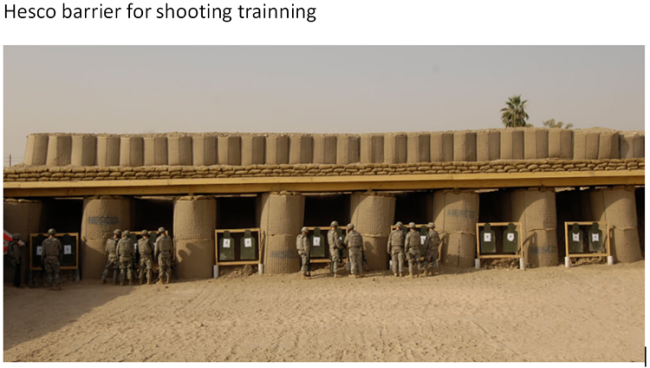

Hesco Barrier is made of welded gabion which coated Zinc-Aluminum then lined with geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal man power and commonly available equipment.After extended,it is suitable for filling with earth,sand,stone,or other general materials.then hesco barrier like a defence wall or bunker,it is widely use in military,oil field,flood control.
2>Defensive barrier introduce:

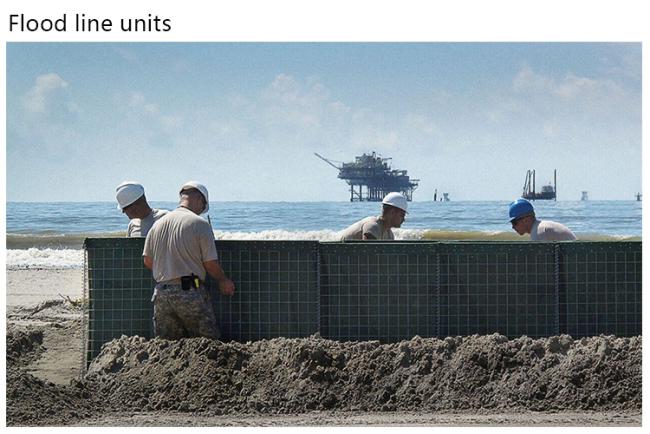

Hesco wall is manufactured from steel wire mesh that is horizontal steel wire and vertical steel wire welded together, coated with zinc-aluminium. Cells are lined with heavy-duty non-woven propylene geotextile. And used as a temporary to semi-permanent wall against small arms fire and explosives. Designed for use on beaches and resist the flood.
| Technical specification for Geotextile Fabric | |
| Color | Beige, green |
| Mass(g/m2) | 250,300,350,500,600 |
| Tensile strength | 16KN |
| Tear strength | 0.42KN |
| CBR puncture | 3.0KN |
| UV strength retention ASTM D4355 | 50% at 500 hours(5 years use life in common enviroment) |
| 70% at 500 hours(10 years use life in common environment) | |
3>Defensive barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>Defensive barrier FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
5>Defensive barrier Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
