Galfan Coated Waterproof Geotextile Lined MIL 9 Military Barrier Welded
Galfan Coated Waterproof Geotextile-Lined MIL 9 Military Barrier Welded
1>Military barrier introduce:

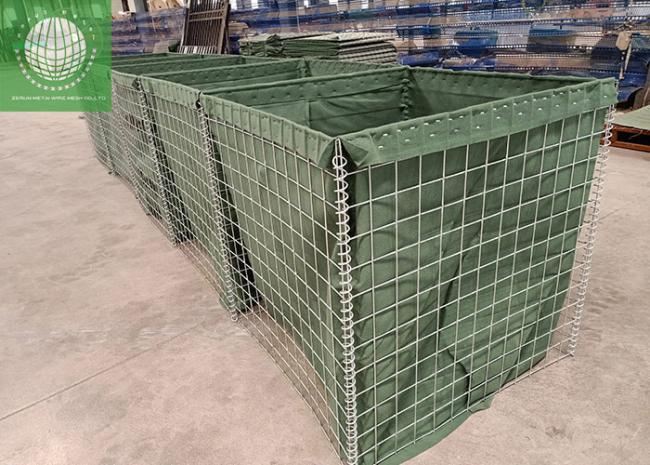

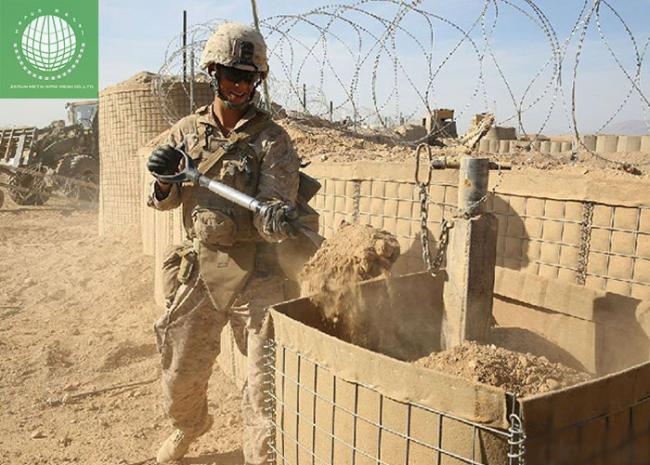

Hesco Barrier , which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
2>Military barrier introduce:

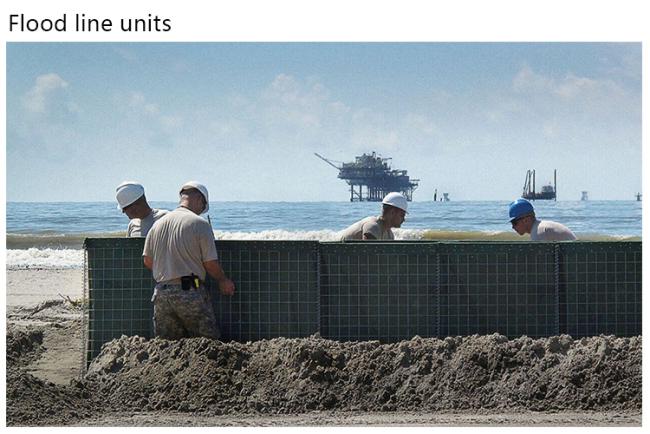

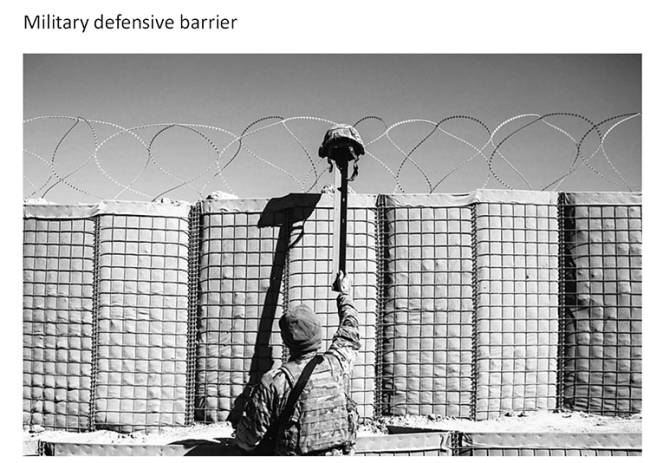

Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military
exercise.
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Military barrier Applications:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
4>Military barrier FAQ
Q: Are you manufacturer?
A: Yes.We have been in manufacturing this product for 15 years
Q: Where is your factory?
A: No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q: What’s factors in quotation?
A: Wire diameter,mesh aperture,length,width,height,quantity
Q: How many days the samples will be finished?And how about the mass production?
A: Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q: How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q: Do you have technique support on installation?
A: Yes ,we have professional engineer for installation guide service.
5>Military barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
