Hot Dipped Galvanized Hesco Bastion Easily Assembled Defensive
Stone Hot Dipped Galvanized Hesco Bastion Easily Assembled Defensive Barrier
1>Hesco bastion introduce:
Flood barrier fence thanks to its unique design can be built in high speed so it is the first choice in emergency accident. In the city, when the rainy season comes, torrential rain will cause the water level to rise rapidly. As lightweight design, two people can install it easily. The units design make building a defensive wall against flood quickly possible. Then protect life and property from harm. When water level falls, we can recover the units. This kind of design can be used repeatedly. Long service life make the cost very low. So flood barrier fences are the best choice not only for government but also for community and home.
2>Hesco bastion introduce:
Hesco Barrier , which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Hesco bastion Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>Hesco bastion Production process:
1. weld mesh panel
2. put panels together weld gabion
3. book geotextile in welded gabion
4. fold cells into one unit
5. pack on pallet
5>Hesco bastion .Applications:

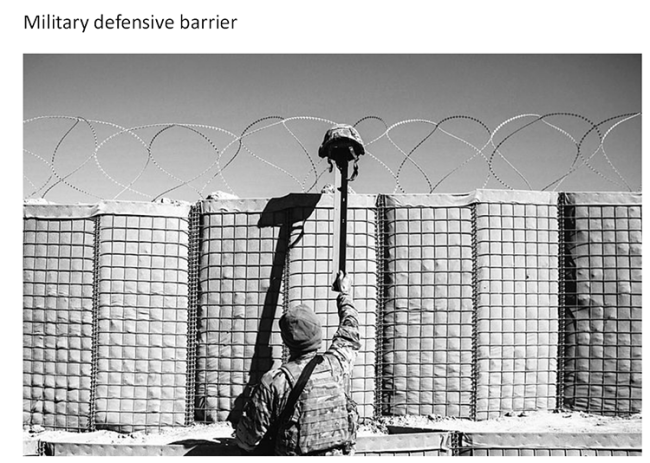

~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
6>Hesco bastion FAQ
Q: Are you manufacturer?
A: Yes.We have been in manufacturing this product for 15 years
Q: Where is your factory?
A: No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q: What’s factors in quotation?
A: Wire diameter,mesh aperture,length,width,height,quantity
Q: How many days the samples will be finished?And how about the mass production?
A: Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q: How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q: Do you have technique support on installation?
A: Yes ,we have professional engineer for installation guide service.
