76.2*76.2mm Hole MIL 7 Military Barrier Cage Wall Anti Impact Easy Installation

Price Negotiable
Price: USD9.5-39.5/m
MOQ: 10 sets
Delivery Time: 14-21 per working days
Brand: ZERUN
Product Description

Easy Installation MIL 7 Stone Galfan Coated No Smell Hesco Bastion Cage Wall



1>Hesco bastion cage wall  introduce:

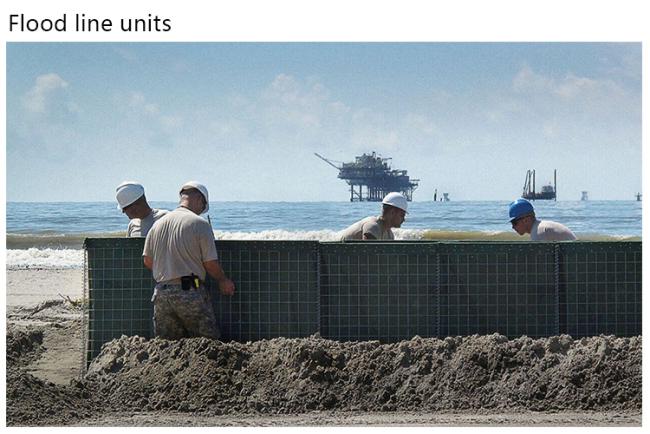

Flood barrier fence thanks to its unique design can be built in high speed so it is the first choice in emergency accident. In the city, when the rainy season comes, torrential rain will cause the water level to rise rapidly. As lightweight design, two people can install it easily. The units design make building a defensive wall against flood quickly possible. Then protect life and property from harm. When water level falls, we can recover the units. This kind of design can be used repeatedly. Long service life make the cost very low. So flood barrier fences are the best choice not only for government but also for community and home.



2>Hesco bastion cage wall introduce:

Hesco barriers are also known as Military Sand Wall, Defensive Barrier, Hesco Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in Military fortifications and flood control.



name Military barrier main Material Geotextile and welded gabion
Hole Shape Square Hole Geotextile Color Green or beige
main Material Geotextile and welded gabion Geotextile Weight 250-500g/m2
wire Surface Galvanized or galfan Packing Pallet
Wire Diameter 4.0 4.5 5.0mm Feature Easily Assembled
Application Military Sand Wall, Flood barrier Usage Protection



Technical Specification for Barrier Panel
steel wire Low carbon steel
wire thickness 3.5mm-5.0mm
wire tensile 500-800Mpa
welding tensile 50-100% of wire tensile strength
mesh size 76.2mm*76.2mm, 100mm*50mm,100mm*100mm
surface treatment Zinc coating or Zinc-Al coating 40-600g/m2



Technical specification for Geotextile Fabric
Color Beige, green
Mass(g/m2) 250,300,350,500,600
Tensile strength 16KN
Tear strength 0.42KN
CBR puncture 3.0KN
UV strength retention ASTM D4355 50% at 500 hours(5 years use life in common enviroment)
70% at 500 hours(10 years use life in common environment)



3>Hesco bastion cage wall Production process:

1.weld mesh panel

2.put panels together weld gabion

3.book geotextile in welded gabion

4.fold cells into one unit

5.pack on pallet



4>Hesco bastion cage wall Applications:

~Military Defense

~Perimeter Security Barrier and Defence Wall

~Temporary Fort and Command Post

~Observation Points and Border Checkpoints

~Military Barrier Fortification System

~Equipment Revetment

~Explosives and Contraband Search Areas

~Personnel and Material Bunkers

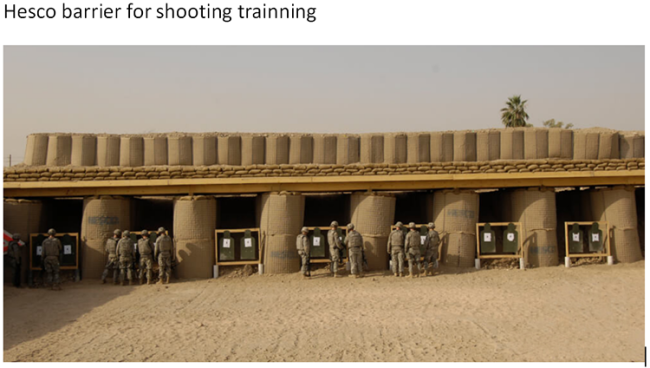

~Shooting Range
