Corrosion Proof Beige Geotextile MIL 7 Hesco Sand Barrier ZnAl Coating
Anti - Corrosion Beige Geotextile MIL 7 Square Hole ZnAl Coating Hesco Wall For Sale
1>Hesco wall for sale introduce:
Military barriers is made up of four sides with hot dip galvanized steel wire panel, lined with non-woven geotextile. Units can be extended and joined. The advantages of the military barriers are time-saving, labor-saving and cost-saving. After connected, we can fill these gabion with sand, earth, gravel, cement and crushed stones. They are widely used in military fortifications and flood control.
2>Hesco wall for sale introduce:
Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military exercise.
| name | Military barrier |
| Hole Shape | Square Hole |
| Hole Size | 76.2*76.2mm/3''*3'' etc |
| main Material | Geotextile and welded gabion |
| Geotextile Color | Green or beige |
| Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan |
| Wire Diameter | 4.0 4.5 5.0mm |
| Application | Military Sand Wall, Flood barrier |
| Feature | Easily Assembled |
| Usage | Protection |
| Highth | 1.37m 0.61m 1.0m 1.6m etc |
| Connection | Spiral |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Hesco wall for sale Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>Hesco wall for sale Applications:

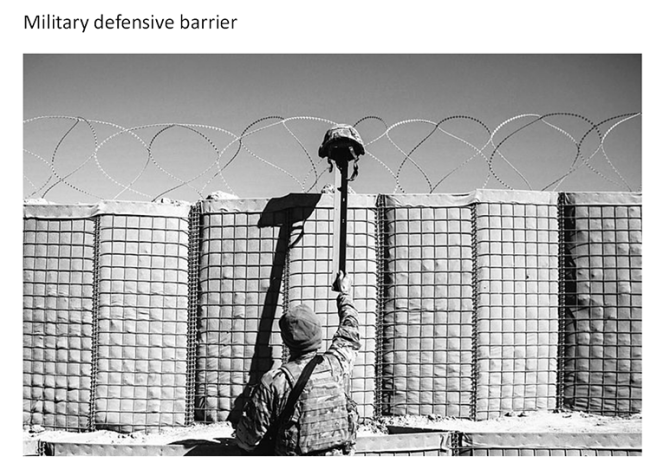

~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers

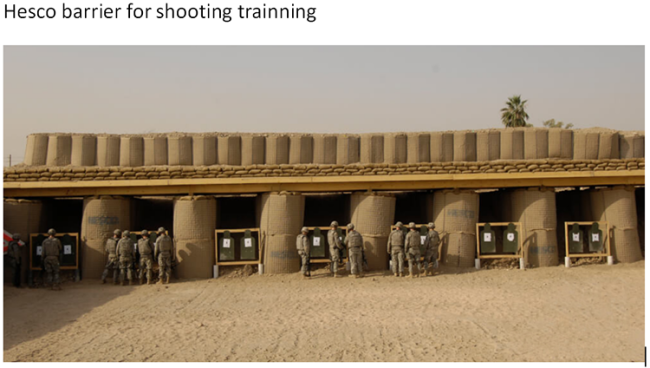

~Shooting Range
5>Hesco wall for sale FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
