Square Hole 4.0mm Wire Hesco Barricades With Spiral Connection
Long Service Life MIL 7 No Smell ZnAl Coating Square Hole Hesco Barriers Price
1>Hesco barriers price introduce:
Hesco Barrier , which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
2>Hesco barriers price introduce:

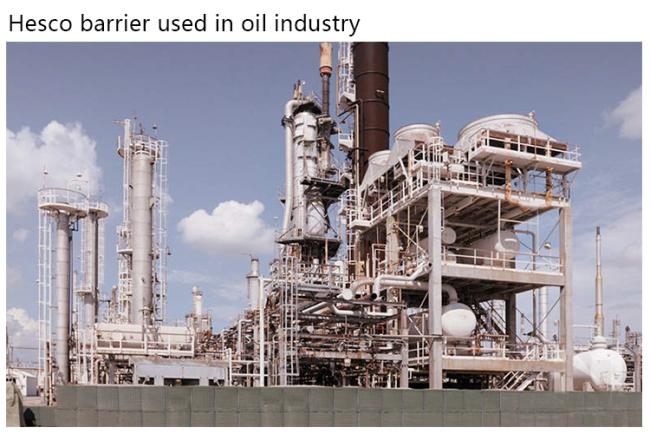

Blast barrier wall are widely used in oil, gas and other dangerous industry. After blast barrier wall surround the dangerous area, it will make other area safe. When a fire or explosion occurs, the barrier prevents it from spreading to other areas. So that the disaster can be controlled in the minimum area. Thus providing time for rescue. So for dangerous goods industry, blast barrier cells are necessity.
| name | Military barrier |
| Hole Shape | Square Hole |
| Hole Size | 76.2*76.2mm/3''*3'' etc |
| main Material | Geotextile and welded gabion |
| Geotextile Color | Green or beige |
| Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan |
| Wire Diameter | 4.0 4.5 5.0mm |
| Application | Military Sand Wall, Flood barrier |
| Feature | Easily Assembled |
| Usage | Protection |
| Highth | 1.37m 0.61m 1.0m 1.6m etc |
| Connection | Spiral |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment |
Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Hesco barriers price Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>Hesco barriers price FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
5>Hesco barriers price Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
