Galfan Coated Military Barrier MIL 7 Hesco Defensive Barriers Spiral Connection
Galfan Coated Stone Easily Assembled High Strength MIL 7 Hesco Defensive Wall
1>Hesco defensive wall introduce:
Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military exercise.
2>Hesco defensive wall introduce:

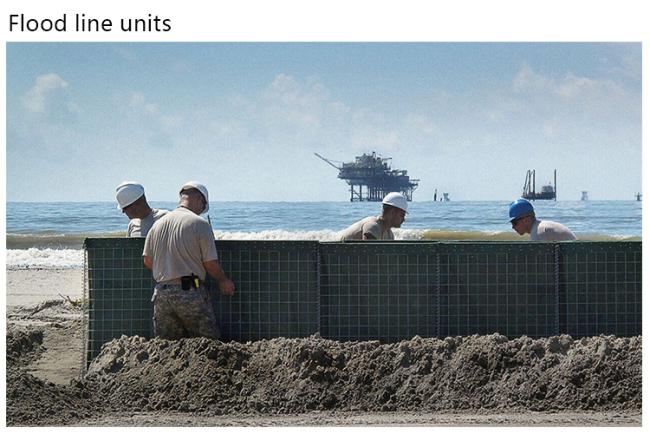

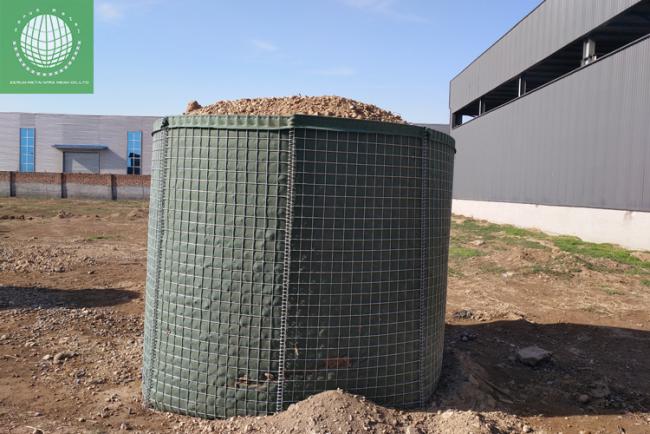

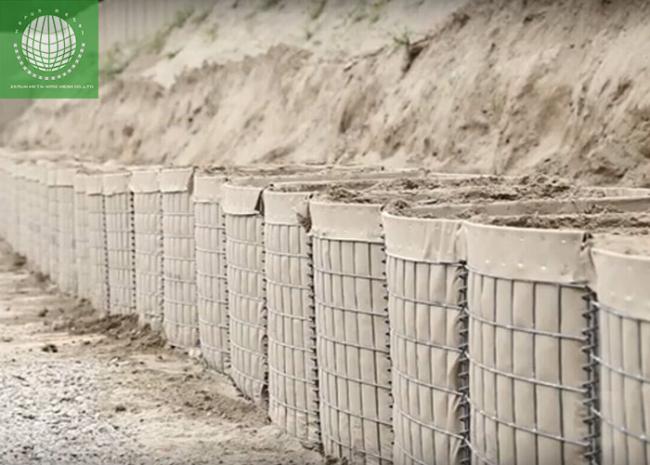

Military barriers is made up of four sides with hot dip galvanized steel wire panel, lined with non-woven geotextile. Units can be extended and joined. The advantages of the military barriers are time-saving, labor-saving and cost-saving. After connected, we can fill these gabion with sand, earth, gravel, cement and crushed stones. They are widely used in military fortifications and flood control.
3>Hesco defensive wall Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
| Technical specification for Geotextile Fabric | |
| Color | Beige, green |
| Mass(g/m2) | 250,300,350,500,600 |
| Tensile strength | 16KN |
| Tear strength | 0.42KN |
| CBR puncture | 3.0KN |
| UV strength retention ASTM D4355 | 50% at 500 hours(5 years use life in common enviroment) |
| 70% at 500 hours(10 years use life in common environment) | |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
4>Hesco defensive wall Applications:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
5>Hesco defensive wall Features:
1.easy to handle and install,
2.High tensile and anti-impact capability
3.long life time
6>Hesco defensive wall Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
