SGS High Strength Military Hesco Barrier Resist Flood Long Service Life
High Strength Long Service Life Soil Spring Connected Square Hole Hesco Barrier
1>Hesco barrier introduce:
Hesco wall is manufactured from steel wire mesh that is horizontal steel wire and vertical steel wire welded together, coated with zinc-aluminium. Cells are lined with heavy-duty non-woven propylene geotextile. And used as a temporary to semi-permanent wall against small arms fire and explosives. Designed for use on beaches and resist the flood.
2>Hesco barrier introduce:

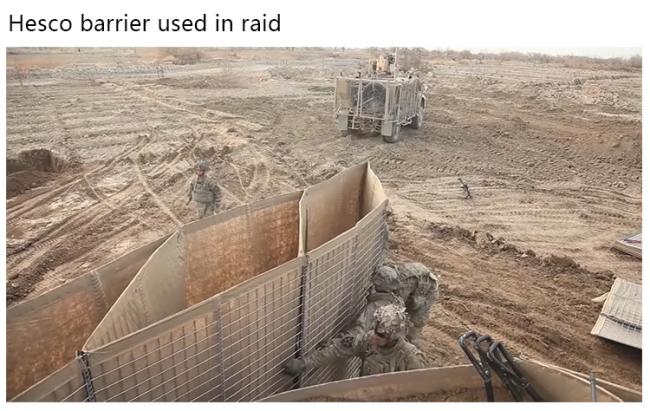

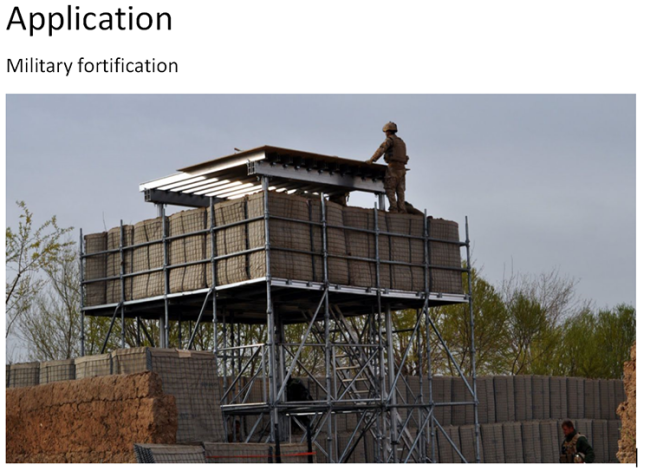

Hesco Barrier , which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
| Technical specification for Geotextile Fabric | |
| Color | Beige, green |
| Mass(g/m2) | 250,300,350,500,600 |
| Tensile strength | 16KN |
| Tear strength | 0.42KN |
| CBR puncture | 3.0KN |
| UV strength retention ASTM D4355 | 50% at 500 hours(5 years use life in common enviroment) |
| 70% at 500 hours(10 years use life in common environment) | |
3>Hesco barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
4>Hesco barrier Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
5>Hesco barrier FAQ
Q:Are you manufacturer?

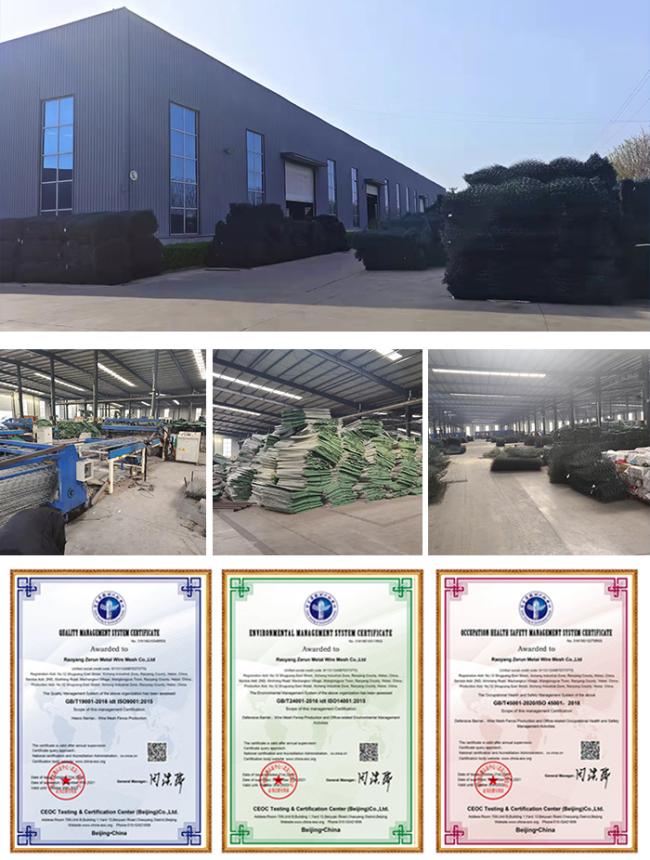

A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
