Beige Geotextile Soil Galfan Coated Military Hesco Barriers MIL 9
Beige Geotextile Soil ECO-Friendly Galfan Coated Hesco Military Barrier MIL 9
1>Hesco military barrier introduce:

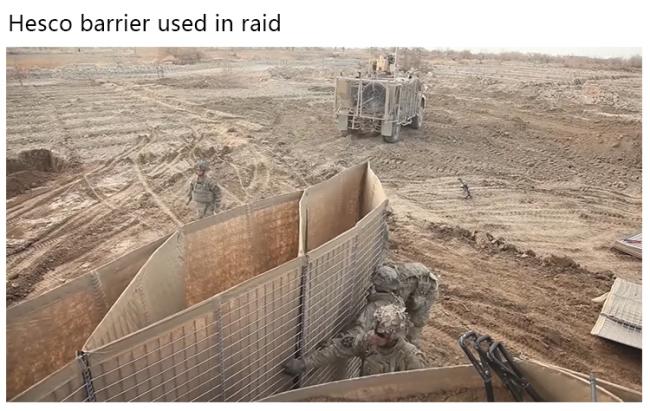

Hesco wall is manufactured from steel wire mesh that is horizontal steel wire and vertical steel wire welded together, coated with zinc-aluminium. Cells are lined with heavy-duty non-woven propylene geotextile. And used as a temporary to semi-permanent wall against small arms fire and explosives. Designed for use on beaches and resist the flood.
2>Hesco military barrier introduce:
Blast barrier wall are widely used in oil, gas and other dangerous industry. After blast barrier wall surround the dangerous area, it will make other area safe. When a fire or explosion occurs, the barrier prevents it from spreading to other areas. So that the disaster can be controlled in the minimum area. Thus providing time for rescue. So for dangerous goods industry, blast barrier cells are necessity.
3>Hesco military barrier Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
| name | Military barrier | main Material | Geotextile and welded gabion |
| Hole Shape | Square Hole | Geotextile Color | Green or beige |
| main Material | Geotextile and welded gabion | Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan | Packing | Pallet |
| Wire Diameter | 4.0 4.5 5.0mm | Feature | Easily Assembled |
| Application | Military Sand Wall, Flood barrier | Usage | Protection |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
4>Hesco military barrier Production process:
1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
5>Hesco military barrier FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
