High Strength Long Service Life Beige Geotextile Seawater Proof Hesco Bastion
High Strength Long Service Life Beige Geotextile Seawater Proof Hesco Bastion
1>Hesco bastion introduce:

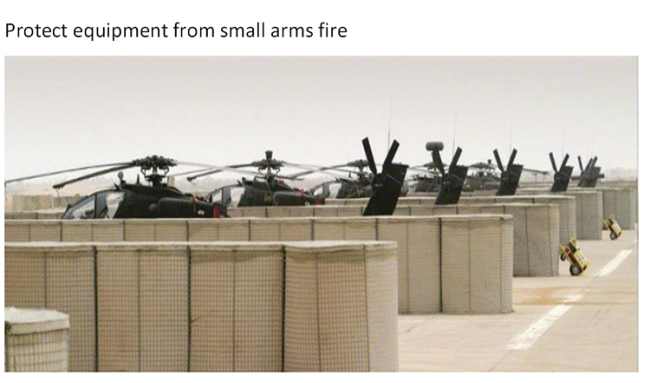

Hesco barrier also known as hesco bastion is a modern system. Multi-cellular structure and flat-packed make it easy to install and transport. Defensive barrier protect personnel, vehicles, equipment and critical assets from explosions and natural disasters. Removal of one pin allowing fill material to flow freely from the cell make them recoverable. High security barriers are worldwidely used in modern military raid and military exercise.
2>Hesco bastion introduce:
Hesco barriers are also known as Military Sand Wall, Defensive Barrier, Hesco Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in Military fortifications and flood control.
| name | Military barrier |
| Hole Shape | Square Hole |
| Hole Size | 76.2*76.2mm/3''*3'' etc |
| main Material | Geotextile and welded gabion |
| Geotextile Color | Green or beige |
| Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan |
| Wire Diameter | 4.0 4.5 5.0mm |
| Application | Military Sand Wall, Flood barrier |
| Feature | Easily Assembled |
| Usage | Protection |
| Highth | 1.37m 0.61m 1.0m 1.6m etc |
| Connection | Spiral |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
3>Hesco bastion Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
