Hot Dipped Galvanized Roll Top Fence
Hot Dipped Galvanized Powder Coated Metal Roll Top BRC Fence Welded Wire Mesh Garden Fence
Roll Top Fence
Hot dipped galvanized powder coated Roll top BRC Fence welded wire mesh garden fence
High rigidity:
The rolled beam profile at the top and bottom edge of each panel results in maximum rigidity.
Suitable where safety is a consideration The principle feature of the panel is the unique rolled beam section at the top and bottom edge.
The open mesh profile is also decorative and allows excellent through visibility. These safety features make Roll Top ideal for playgrounds, play areas and parks.
Wide range of options and applications Available as a complete system in a wide range of colour options for boundary demarcation to general security.
Maximum height To achieve fence heights above 1.8m the panels are designed for multi-lift erection i.e. one or more panels are placed above the bottom panel.
BRC Mesh panel: Mesh Panel Height: 630mm, 830mm, 1030mm, 1230mm, 1530mm, 1730mm, 1630mm, 1830mm, 1930mm, 2030mm, 2230mm, 2430mm. Mesh Panel Width: 1.0m,1.5m,2.0m,2.2m,2.5m,3m Hole Opening: 50mmX200mm,50mmX150mm,50x120mm,50mmX100mm, 55x200mm, 55x150mm,55x100mm,55x120mm Wire Thickness: 4mm-8mm
Material: Low Carbon Steel Wire, Galvanized Wire
Finished: Electric Galvanized, Hot Dipped Galvanized, Polyester Painting. Polyester Painting
Color: Any RAL Series Color RAL6005 GREEN, RAL9010 WHITE, RAL7016, RAL7030, RAL9005 BLACK, RAL9006, RAL8017 BROWN and others.
Top and Bottom have one Roll Curve.
Hot dipped galvanized powder coated Roll top BRC Fence welded wire mesh garden fence
BRC Mesh post: Post: Hot dipped Galvanized and powders coating.
Square post: 40x40x1.2mm, 40x40x1.5mm, 60x60x2mm, 60mmX60mmX2.5mm,
Rectangle Post: 40x60x1.2mm, 40x60x1.5mm, 40x60x2mm Round Post: 38x1.2mm, 40x1.5mm, 50mm X2mm, 60mmx2.5mm
Peach post : 50*70mm; 70*100mm Length: On Request(Normal 1.5m-3.4m) 300 - 700mm more than panel's height, or same as the panel and with the bottom base. Material: Square Steel Pipe or Round Steel pipe Finished: Electric Galvanized,Hot Dipped Galvanized, Polyester Painting Polyester Painting Color: Any RAL Series Color ( Normal RAL6005-Dark Green,RAL9005-Black)
Steel Clamps: On request Bolts & Nuts: According to Need
Used: Safety wire mesh for railway, airport, sea port, constructions and aquaculture.
| Material |
High quality low carbon steel |
| Mesh hole size (mm) | 50x150, 75x150,50x200 |
| Height(mm) | 900-2300 |
| Length(mm) | 1500,2000,2500,3000 |
| Surface Finish | Galvanized, plastic powder coated |
| Wire diameter after dipping (mm) | 3.0/4.0,4.0/5.0,5.0/6.0 |
| Post style | Round post, Square post |
| Pre-burying base(mm) |
500x300x300 |

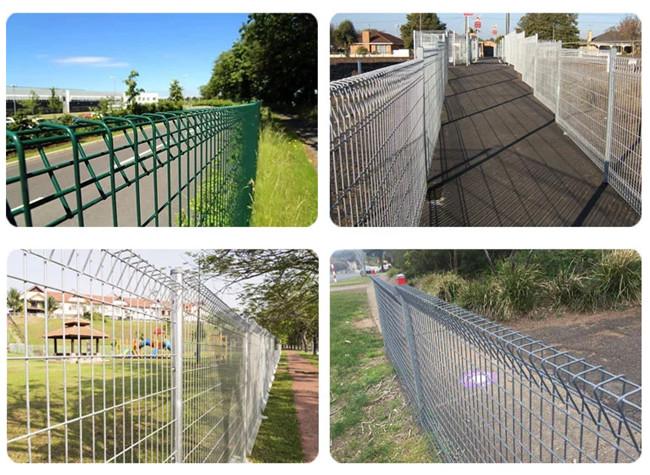

Application
BRC fence is extensively used for protection of airport, ports and harbors, for partition and protection of construction of cities,
including gardens, lawn, zoos, pools and lakes, roads and uptowns, for protection and decoration of hotels, restaurants, supermarkets and so on.
Hot dipped galvanized powder coated Roll top BRC Fence welded wire mesh garden fence
BRC Mesh Packing:
