2.74m Mil 19 Zinc Aluminum Coating 50x50mm Military Barrier
2.74m MIL19 Zinc-Aluminum Coating/Hot dipped Galvanized Military Defensive Barrier
Product Description

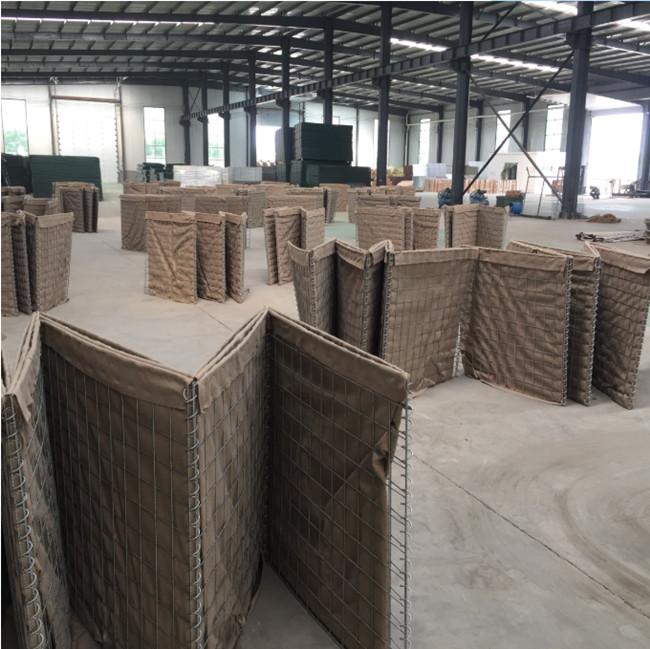

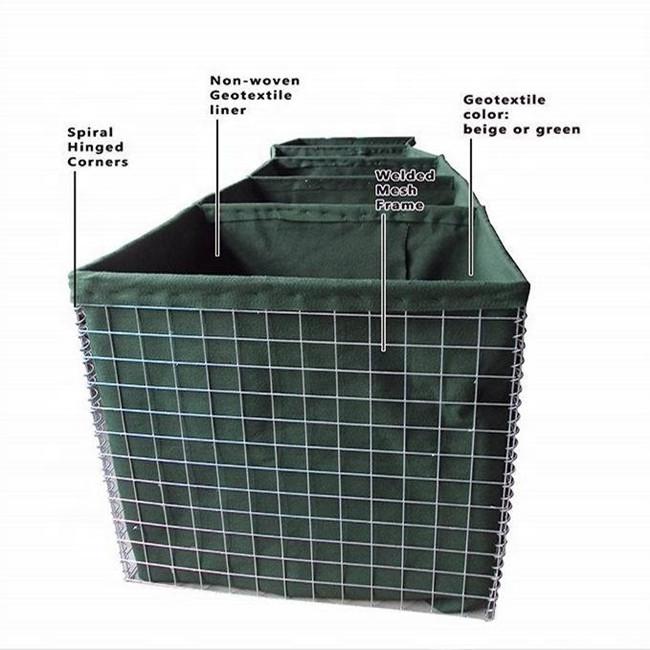

Military defensive barrier is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire and joined with vertical, helical-coil joints.The units are lined with a heavy-duty non-woven polypropylene geotextile.
Can be filled with sand, earth, cement, stone then as a defence wall or bunker widely used in the military to protect safety.
Details of military defensive barrier:
| Wire thickness: | 4mm-5mm |
| Spring wire dia: | 3mm 4mm |
| Mesh size: | 50*50mm, 76.2mmX76.2mm, 80X80mm, |
| Geotextile: | heavy duty non-woven polypropylene,color could be green,beige-sand,white etc |
| Panel size: | 2.21m x2.13m, 1.37m x1.06m, 0.61m x0.61m, also can be customized. |
| Process: |
1, using hot dipped galvanized wire,aluminum zinc coated wire(galfan wire) to weld 2, First welding,then hot dipped galvanized |
| Package: |

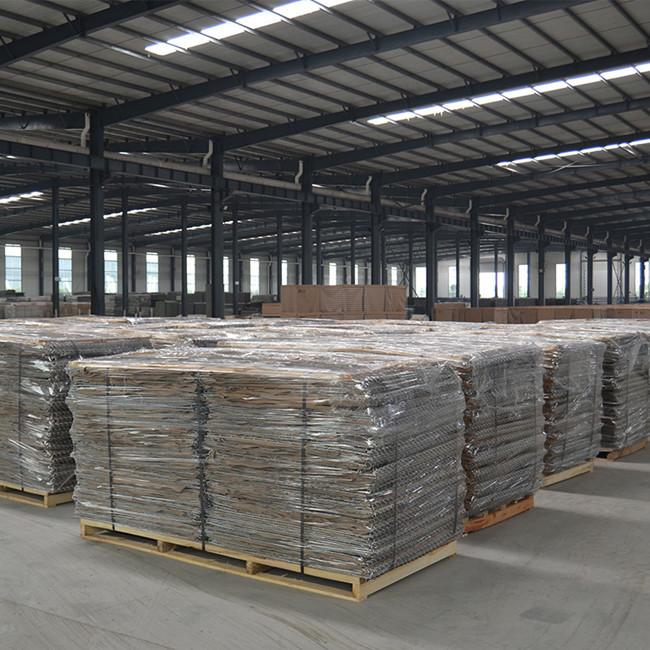

Several sets in one pallet(steel pallet or wooden pallet,it is depends on the sizes),then wrap with shrink film |
Type of Military Defensive Barrier:
| Military Defensive Barriers | |||
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| ZR-MIL2 | 24''(0.61M) | 24''(0.61M) | 4'(1.22M) |
| ZR-MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| ZR-MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| ZR-MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| ZR-MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| ZR-MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| ZR-MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| ZR-MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| ZR-MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| ZR-MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| ZR-MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Type of hesco units:
| HescoBarriers | |||
| PRODUCT | HEIGHT | WIDTH | LENGTH |
| ZR-MIL2 | 24''(0.61M) | 24''(0.61M) | 4'(1.22M) |
| ZR-MIL3 | 39''(1.00M) | 39''(1.00M) | 32'.9''(10M) |
| ZR-MIL4 | 39''(1.00M) | 60''(1.52M) | 32'.9''(10M) |
| ZR-MIL5 | 24''(0.61M) | 24''(0.61M) | 10'(3.05M) |
| ZR-MIL6 | 66''(1.68M) | 24''(0.61M) | 10'(3.05M) |
| ZR-MIL7 | 87''(2.21M) | 84''(2.13M) | 91'(27.74M) |
| ZR-MIL8 | 54''(1.37M) | 48''(1.22M) | 32'.9''(10M) |
| ZR-MIL9 | 39''(1.00M) | 30''(0.76M) | 30''(9.14M) |
| ZR-MIL10 | 87''(2.21M) | 60''(1.52M) | 100'(32.50M) |
| ZR-MIL11 | 48''(1.22M) | 12''(0.30M) | 4'(1.22M) |
| ZR-MIL12 | 84''(2.13M) | 42''(1.06M) | 108'(33M) |
Our Advantage:
-
Automatic panel welding equipments 10 sets.
-
Firm welding panel,welding conncecting point ≥ 1/3
-
High quality Heavy duty non-woven polypropylene geotextile
