W Pale / D Pale Steel Palisade Fence Galvanized Or Powder Coated
W Pale/D Pale Galvanized Steel Or Powder Coated Metal Palisade Fencing
Product Description
Metal Palisade Fencing - a strong and durable construction providing excellent protection against climbing and cut-through. Supplied galvanised only or galvanised and powder coated to any RAL colour.
Palisade fencing include ‘D’ ‘W’ profile ,we suggest “W” profile installations with a higher security risk,surface treatment could be hot dipped galvanised and pre galvanized then electrostatic polyester powder spray(green color,yellow,blue)
Specification Of Metal Palisade Fening
| Specification Of Metal Palisade Fencing | ||||||
| Panel size | W section Pale:70mm | Angel Rail | Post | |||
| Height | Width | Pale Thickness | Qty:Pale | Cross Rails | Square post | I Post |
| 1.8m | 2.75m | 2/2.5/3mm | 17pcs | 40×40×4mm 50×50×6mm |
60*60mm 80*80mm 100*100mm |
100×55mm |
| 2.1m | 2.75m | 2/2.5/3mm | 17pcs | |||
| 2.4m | 2.75m | 2/2.5/3mm | 17pcs | |||
| 3.0m | 2.75m | 2/2.5/3/3.5mm | 17pcs | |||
| W section Pale:62mm | ||||||
| 1.8m | 2.75m | 1.5/2/2.5mm | 17pcs | 40×40×4mm 50×50×6mm |
60*60mm 80*80mm 100*100mm |
100×55mm |
| 2.1m | 2.75m | 1.5/2/2.5mm | 17pcs | |||
| 2.4m | 2.75m | 1.5/2/2.5mm | 17pcs | |||
| 3.0m | 2.75m | 1.5/2/2.5mm | 17pcs | |||
| D Pale section:65mm | ||||||
| 1.8m | 2.75m | 1.5/2/2.5/3mm | 17pcs | 40×40×4mm 50×50×5mm |
60×60mm 80x80mm 100x100mm |
100×55mm |
| 2.1m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||
| 2.4m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||
| 3.0m | 2.75m | 1.5/2/2.5/3mm | 17pcs | |||
| Surface treatment: Galvanized or galvanized then powder coating finished | ||||||

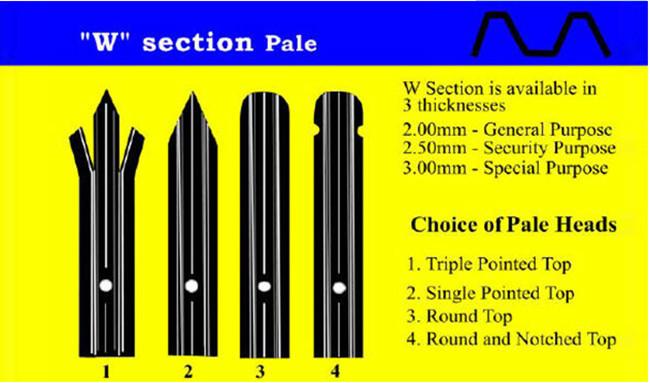

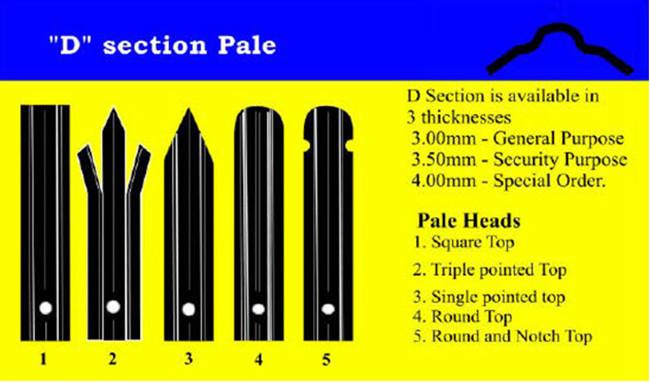

| Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only. | ||||||
Palisade Fence Features:
● Easy Installation
● With a high cost level compare with other type fence
● Nice looking
● Different options on color according to the using environment
● Strong anti rust and anti correction ability
● Strong and high security ,it is possible of putting concertina razor wire at the top
