Welded Military Barrier Retaining Wall Defensive Bastion Mil 10 Hesco Blast Wall
Retaining Wall Defensive Bastion Mil10 Hesco Barriers Blast Wall
1.Hesco Barriers Blast Wall introduce:
Hesco Barrier blast wall is made of welded gabion which coated Zinc-Aluminum then lined with geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal man power and commonly available equipment.After extended,it is suitable for filling with earth,sand,stone,or other general materials.then hesco barrier like a defence wall or bunker,it is widely use in military,oil field,flood control.
2.Hesco Barriers Blast Wall introduce:

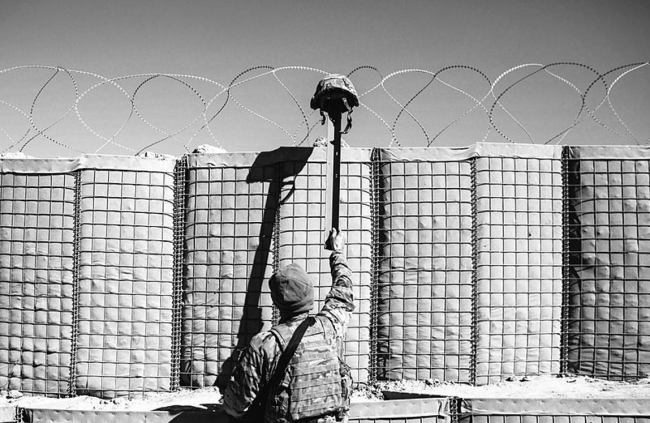

Hesco Barrier blast wall, which is made of the steel welded mesh and lined with non-woven geotextile , can be filled with sand, earth, cement, stone, then as a defence wall or bunker and widely used in the military to protect safety.
3.Hesco Barriers Blast Wall parameter:
| name | Military barrier |
| Hole Shape | Square Hole |
| Hole Size | 76.2*76.2mm/3''*3'' etc |
| main Material | Geotextile and welded gabion |
| Geotextile Color | Green or beige |
| Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan |
| Wire Diameter | 4.0 4.5 5.0mm |
| Application | Military Sand Wall, Flood barrier |
| Feature | Easily Assembled |
| Usage | Protection |
| Highth | 1.37m 0.61m 1.0m 1.6m etc |
| Connection | Spiral |
4.Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| ZERUN-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| ZERUN-2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| ZERUN-3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| ZERUN-8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| ZERUN-9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| ZERUN-10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| ZERUN-11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 3 cells(3*1) |
| ZERUN-12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
5.Applications:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
6.FAQ:
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.

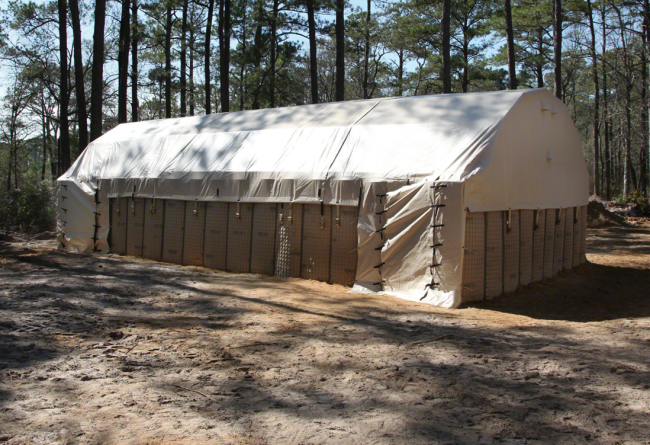

7.Hesco accomodation bunker (HAB)
Military defensive barrier

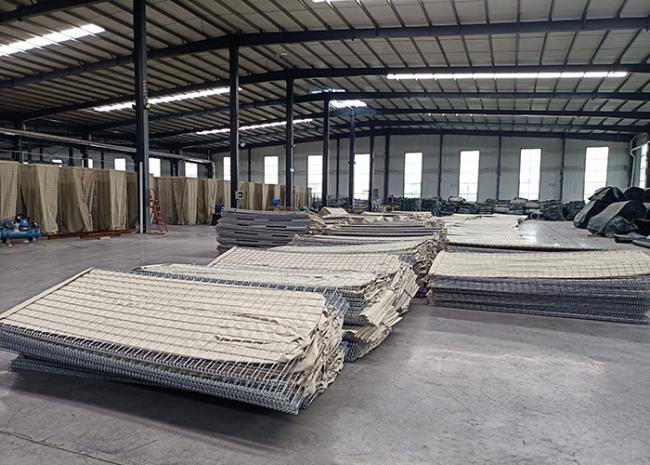

8.Factory:
