Mil 3 Perimeter Security Military Barrier Oil Field Hesco 3" Bastion
Perimeter Security MIL 3 Oil Field Military Barrier Hesco 3" Bastion
1:Hesco 3" Bastion introduce:
Hesco 3＂ bastion is made of welded gabion which coated Zinc-Aluminum then lined with geotextile. Units can be extended and joined using the provided joining pins.It is easy installed with using minimal man power and commonly available equipment.After extended,it is suitable for filling with earth,sand,stone,or other general materials.then hesco barrier like a defence wall or bunker,it is widely use in military,oil field,flood control.
2.Hesco 3" Bastion parameter:
| name | Military barrier |
| Hole Shape | Square Hole |
| Hole Size | 76.2*76.2mm/3''*3'' etc |
| main Material | Geotextile and welded gabion |
| Geotextile Color | Green or beige |
| Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan |
| Wire Diameter | 4.0 4.5 5.0mm |
| Application | Military Sand Wall, Flood barrier |
| Feature | Easily Assembled |
| Usage | Protection |
| Highth | 1.37m 0.61m 1.0m 1.6m etc |
| Connection | Spiral |
3.Hesco 3" Bastion parameter:
| name | Military barrier | main Material | Geotextile and welded gabion |
| Hole Shape | Square Hole | Geotextile Color | Green or beige |
| main Material | Geotextile and welded gabion | Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan | Packing | Pallet |
| Wire Diameter | 4.0 4.5 5.0mm | Feature | Easily Assembled |
| Application | Military Sand Wall, Flood barrier | Usage | Protection |
4.Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| ZERUN-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| ZERUN-2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| ZERUN-3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| ZERUN-8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| ZERUN-9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| ZERUN-10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| ZERUN-11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 3 cells(3*1) |
| ZERUN-12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
5.Applications:
~Military Defense
~Perimeter Security Barrier and Defence Wall
~Temporary Fort and Command Post
~Observation Points and Border Checkpoints
~Military Barrier Fortification System
~Equipment Revetment
~Explosives and Contraband Search Areas
~Personnel and Material Bunkers
~Shooting Range
6.FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.

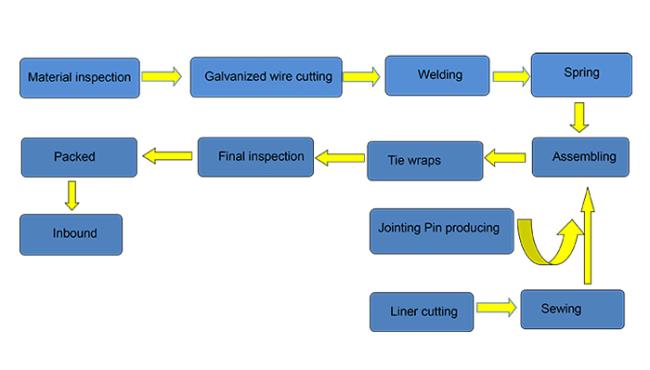

7.Process Drawing:
8.Application:

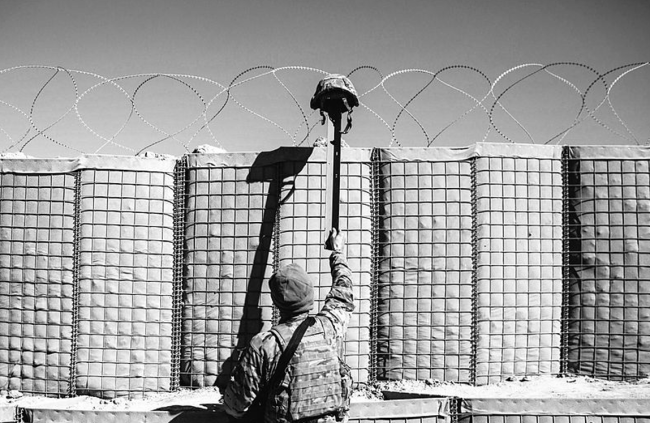

Military defensive barrier

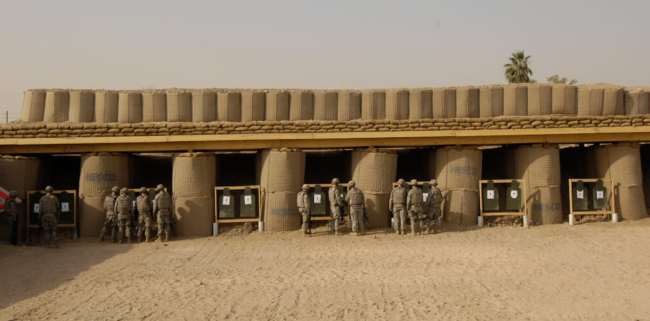

Hesco barrier for shooting trainning
