High Tensile Strength Military Hesco Barriers Waterproof Bag 76.2x76.2mm Hole Size
High Tensile Strength Waterproof Hesco Barrier Bag 76.2x76.2mm Hole Size
1. Hesco Barrier Bag introduce:
Hesco barrier bag is manufactured from steel wire mesh that is horizontal steel wire and vertical steel wire welded together, coated with zinc-aluminium. Cells are lined with heavy-duty non-woven propylene geotextile. And used as a temporary to semi-permanent wall against small arms fire and explosives. Designed for use on beaches and resist the flood.
2. Hesco Barrier Bag introduce:
Hesco barrier bag are widely used in oil, gas and other dangerous industry. After blast barrier wall surround the dangerous area, it will make other area safe. When a fire or explosion occurs, the barrier prevents it from spreading to other areas. So that the disaster can be controlled in the minimum area. Thus providing time for rescue. So for dangerous goods industry, blast barrier cells are necessity.
3.Hesco Barrier Bag parameter:
| name | Military barrier | main Material | Geotextile and welded gabion |
| Hole Shape | Square Hole | Geotextile Color | Green or beige |
| main Material | Geotextile and welded gabion | Geotextile Weight | 250-500g/m2 |
| wire Surface | Galvanized or galfan | Packing | Pallet |
| Wire Diameter | 4.0 4.5 5.0mm | Feature | Easily Assembled |
| Application | Military Sand Wall, Flood barrier | Usage | Protection |
4. Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| ZERUN-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| ZERUN-2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| ZERUN-3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| ZERUN-5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| ZERUN-7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| ZERUN-8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| ZERUN-9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| ZERUN-10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| ZERUN-11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 3 cells(3*1) |
| ZERUN-12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
5>Production process:

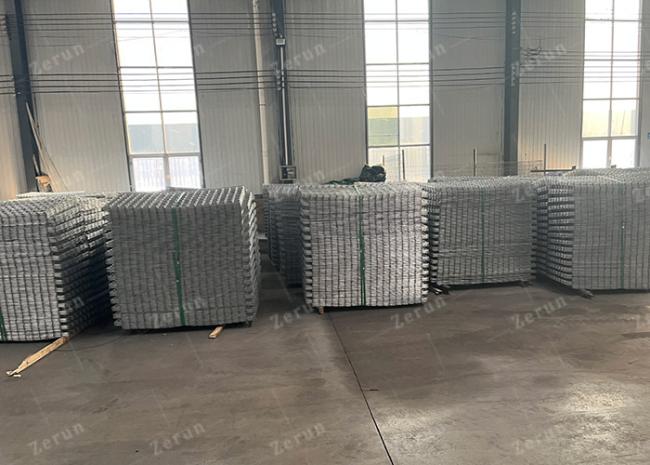

1.weld mesh panel
2.put panels together weld gabion
3.book geotextile in welded gabion
4.fold cells into one unit
5.pack on pallet
6.Application；

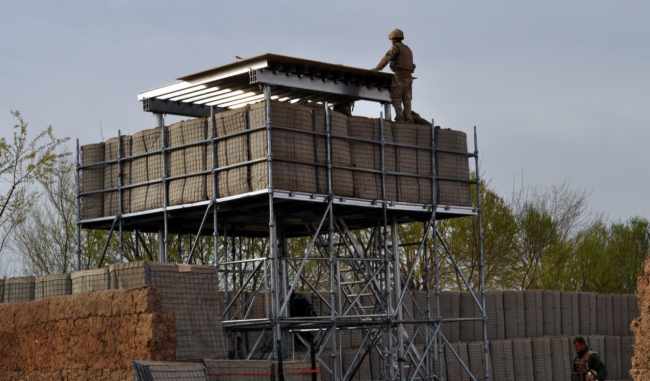

Military fortification

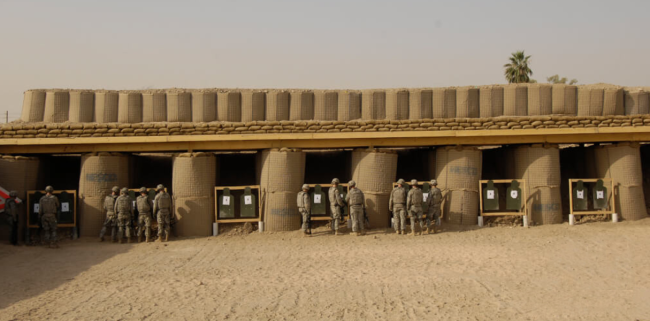

Hesco barrier for shooting trainning
